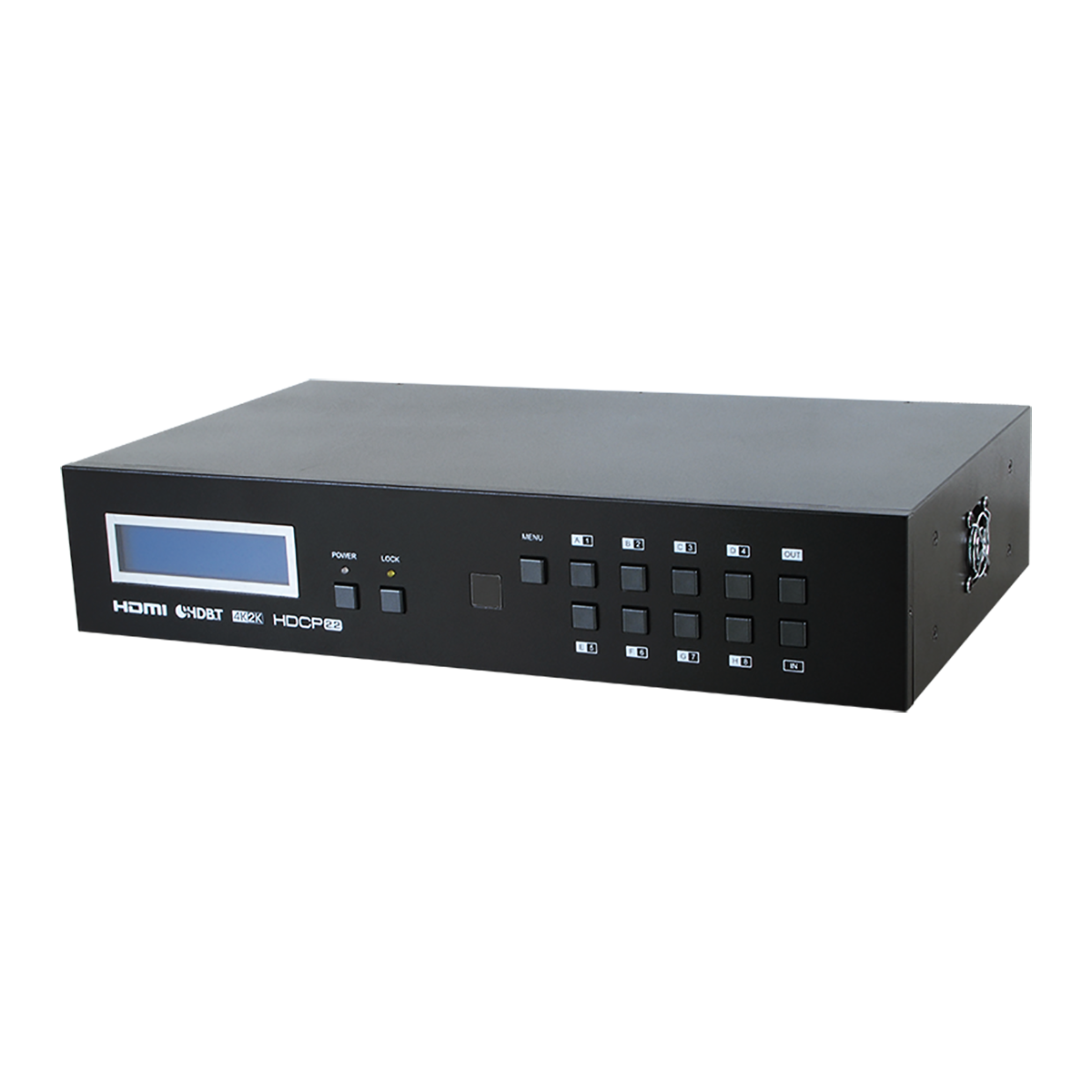

CMPRO-UA8H8CVPL 8x8 HDMI 4K UHD over CAT5e/6/7 Matrix with HDCP 2.2
Please sign in so that we can notify you about a reply
The 8 by 8 HDMI 4K2K Matrix over CAT5e/6/7 supports the transmission of video (resolutions up to 4K2K Full HD & HDCP 2.2), multi-channel digital audio and control via IR, RS-232, Telnet or Web GUI from eight high definition sources to eight outputs over a single CAT5e/6/7 cable (up to 60m) for each output. It supports high resolution digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio as well as 3D content that can be displayed when connecting a 3D TV and 3D source. The Power over Cable (PoC) function can power compatible receivers, providing greater flexibility in installations.
Features
- HDMI with 4K2K supported, HDCP 2.2 and DVI compliant
- Supports PC resolution up to WUXGA and HDTV resolution up to 4K2K(3840×2160@24/25/30 Hz & 3840×2160@50/60 Hz with YUV420, 4096×2160@24/25/30 Hz & 4096×2160@50/60 Hz with YUV420)
- Supports distances up to 60 meters through CAT5e/6/7 cable
- Supports 3D signal bypass
- Supports pass-through audio LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, DTS 2/5.1CH, Dolby TrueHD & DTS-HD Master Audio
- Supports PoC (Power over Cable) on compatible receivers only
- Supports bidirectional IR from inputs and output locations

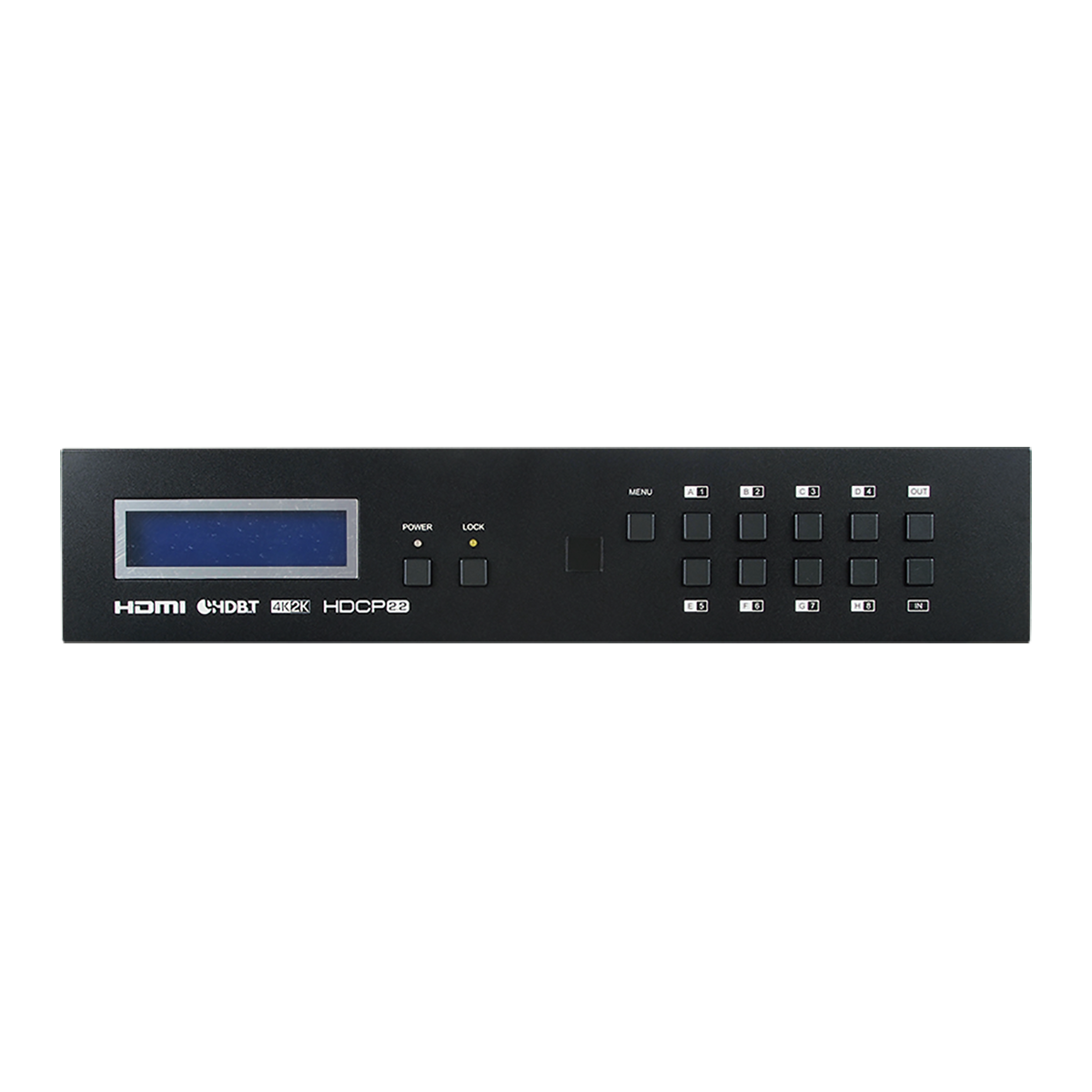

- Supports RS-232, remote control, on-panel control and IP control (Telnet/Web GUI)
- 2U size design
- Compliant with DVI source
- Note: The PoC function is designed for powering compatible receiver
- units only—non-PoC receivers will need their own power supply.
- Receivers of another brand may not be compatible.
Brand:
Cypress Technology
Specifications
Product Type:
HDMI Matrix
Maximum Operating Temperature:
+40°C
Colour:
Black
Special Features:
Supports 3D signal bypass, 2U size design, Compliant with DVI source
IR Frequency:
30 to 50kHz
Power Rating:
89W
Chassis Material:
Metal
Applications:
HDMI Matrix System, Video/Tv Wall Display and Control, Security Surveillance and Control, Commercial Advertising/Display and Control, University Lecture Hall/Display and Control, Retail Sales and Demonstration
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
1x8 by 8 HDMI 4K UHD Over CAT5e/6/7 Matrix, 1xIR Blaster, 1xRemote Control with battery, 2x24V/6.25A Power Adaptor, 2xPower Cord, 1xOperation Manual
Performance
Resolution:
480i to 1080pixels@24Hz/50/60, 4K@24Hz/25/30,4K@50Hz/60 (YUV 420) & VGA and WUXGA
Video Bandwidth:
300MHz/9Gbps
Baud Rate:
115200bps
Inputs and Ports
Input Port Type:

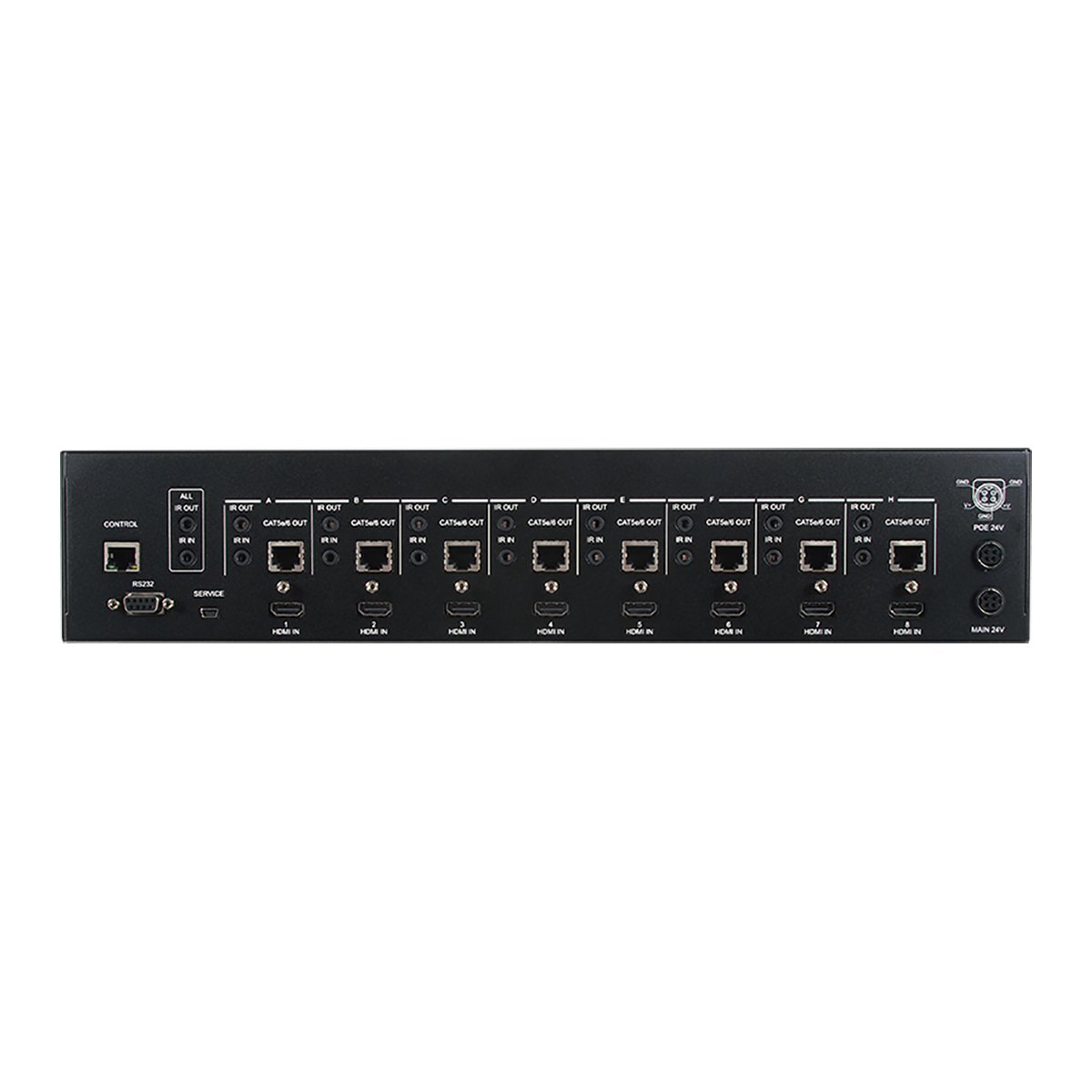

8xHDMI, 9xIR (3.5mm), 1xRS-232 (9-PinD-sub), 1xControl (RJ45), 1xUSB (Service Only)
Output Port Type:
8xCAT5e/6/7, 9xIR (3.5mm)
Number of Ports:
8x8
Power
Current Rating:
6.25A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Length:
25.6cm
Width:
43.8cm
Height:
9.2cm
Weight:
4592g
Other
Voltage Rating:
24V DC
Voltage Rating:
24V DC
Standards Met:
CE/FCC/UL Certified
