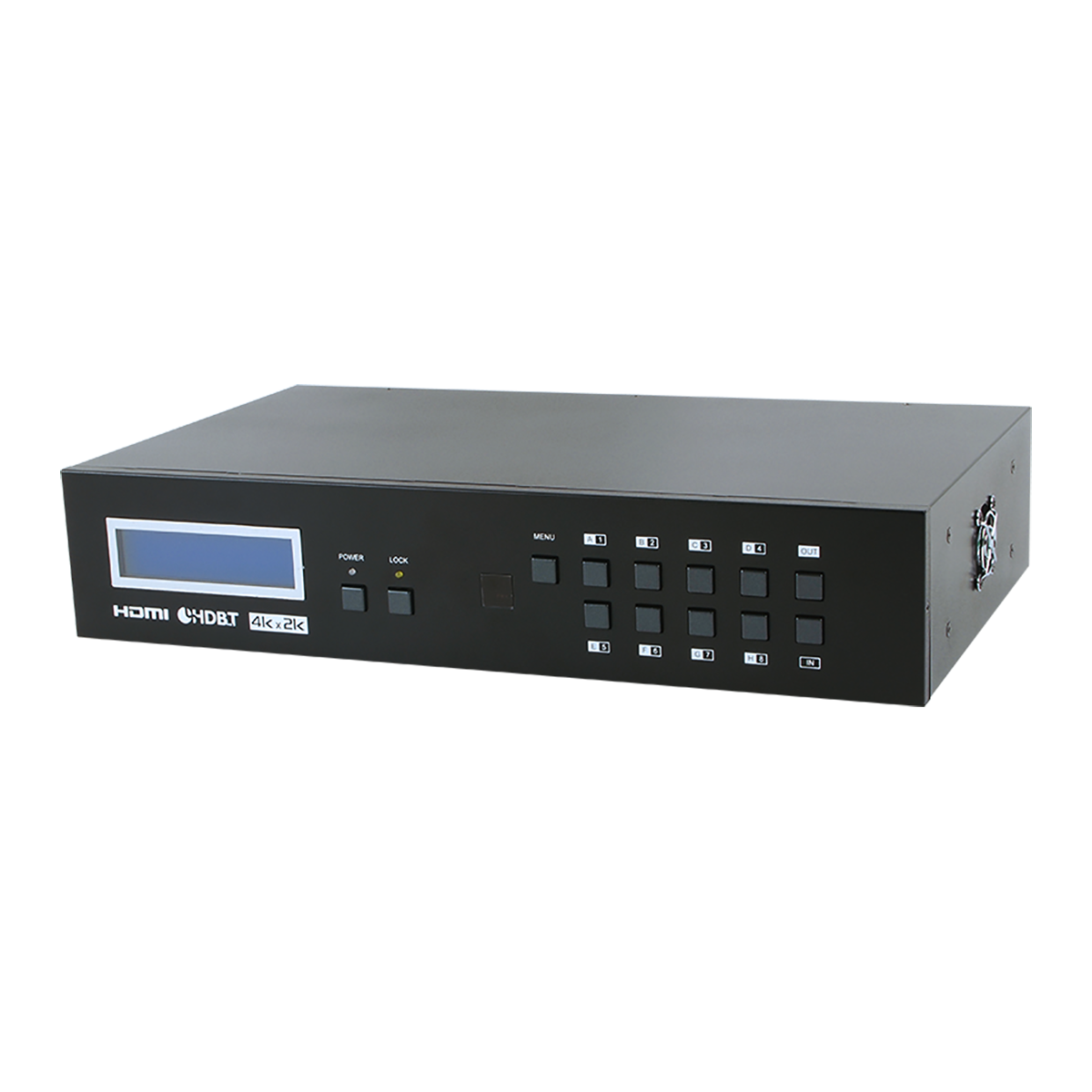

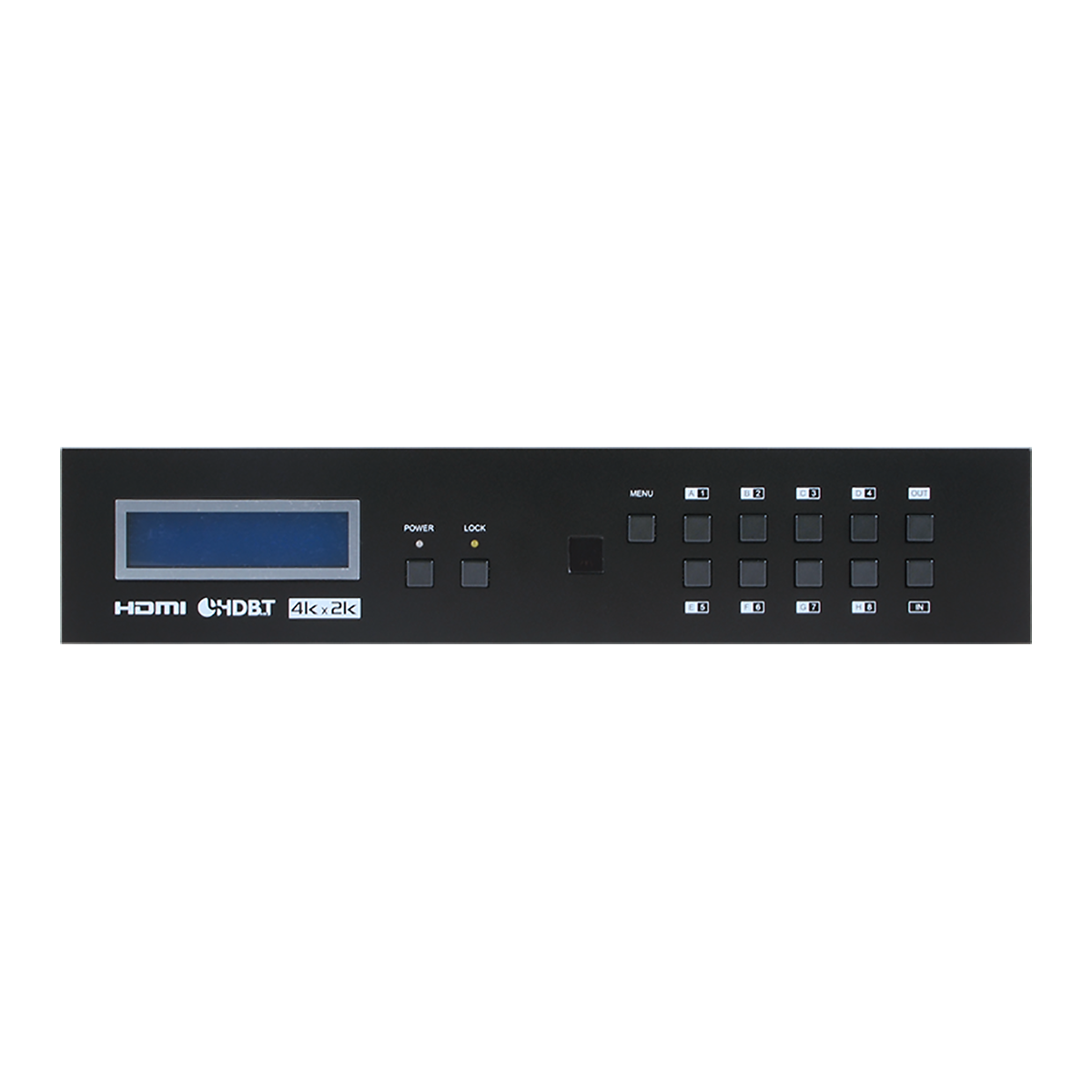

CMPRO-U8H8CVPL 4K2K 8x8 HDMI Matrix over CAT5e/6/7
Please sign in so that we can notify you about a reply
The 4K2K 8 by 8 HDMI Matrix over CAT5e/6/7 supports the transmission of video (resolutions up to 4K2K Full HD), multi-channel digital audio and control via IR, RS-232, Telnet or Web GUI from eight high definitionsources to eight outputs over a single CAT5e/6/7 cable (up to 60m) for each output. It supports high resolution digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio as well as 3D content that can be displayed when connecting a 3D TV and 3D source.
Features
- HDMI, HDCP 1.1 and DVI Compliant
- Supports resolutions VGA~WUXGA, 4K2K@24/25/30 & YUV_420 and 480i~1080p dependent upon the output display’s EDID settings
- Supports distances up to 60 meters through CAT6/7 cables
- Supports 3D signal display dependent upon the output display EDID settings
- Supports PoC (Power over Cable) on compatible receivers only
- Supports HDMI input up to 15 meters at 8-bit resolution or 10 meters at 12-bit resolution
- Supports bi-directional IR from input and output locations
- Supports RS-232, remote control, on-panel control and IP Control (Telnet & Web GUI)
- 2U size design
- Supports external and internal EDID settings
- Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
Note:
1. The PoC function is designed for powering compatible receiver units only—non-PoC receivers will need their own power supply. Receivers of another brand may not be compatible.
2. Do not connect the LAN port to CAT outputs of this device or to CAT inputs or receiver. Doing so may demagethe unit.
Brand:
Cypress Technology
Product Type:
HDMI Matrix Over CAT5
Specifications
Maximum Operating Temperature:
+40°C
Colour:
Black
Special Features:
HDMI, HDCP 1.1 and DVI Compliant, 2U Size Design
Power Rating:
65W Tx (Main), 56W Rx (PoE)
Chassis Material:
Metal
Applications:
HDMI Matrix System, Video/Tv Wall Display and Control, Security Surveillance and Control, Commercial Advertising/Display and Control, University Lecture Hall/Display and Control, Retail Sales and Demonstration
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
4K2K 8x8 HDMI Matrix Over CAT5e/6/7, 2xIR Blaster, 2xIR Extender, 1x24V/6.25A DC Power Adaptor, 2xPower Cable, 1xIR Remote Control, Operation Manual
Performance
Resolution:
VGA and WUXGA, 4K2K@24Hz/25/30 & YUV_420 and480i to 1080pixels
Video Bandwidth:
300MHz/9Gbps
Baud Rate:
19200bps
Inputs and Ports
Input Port Type:

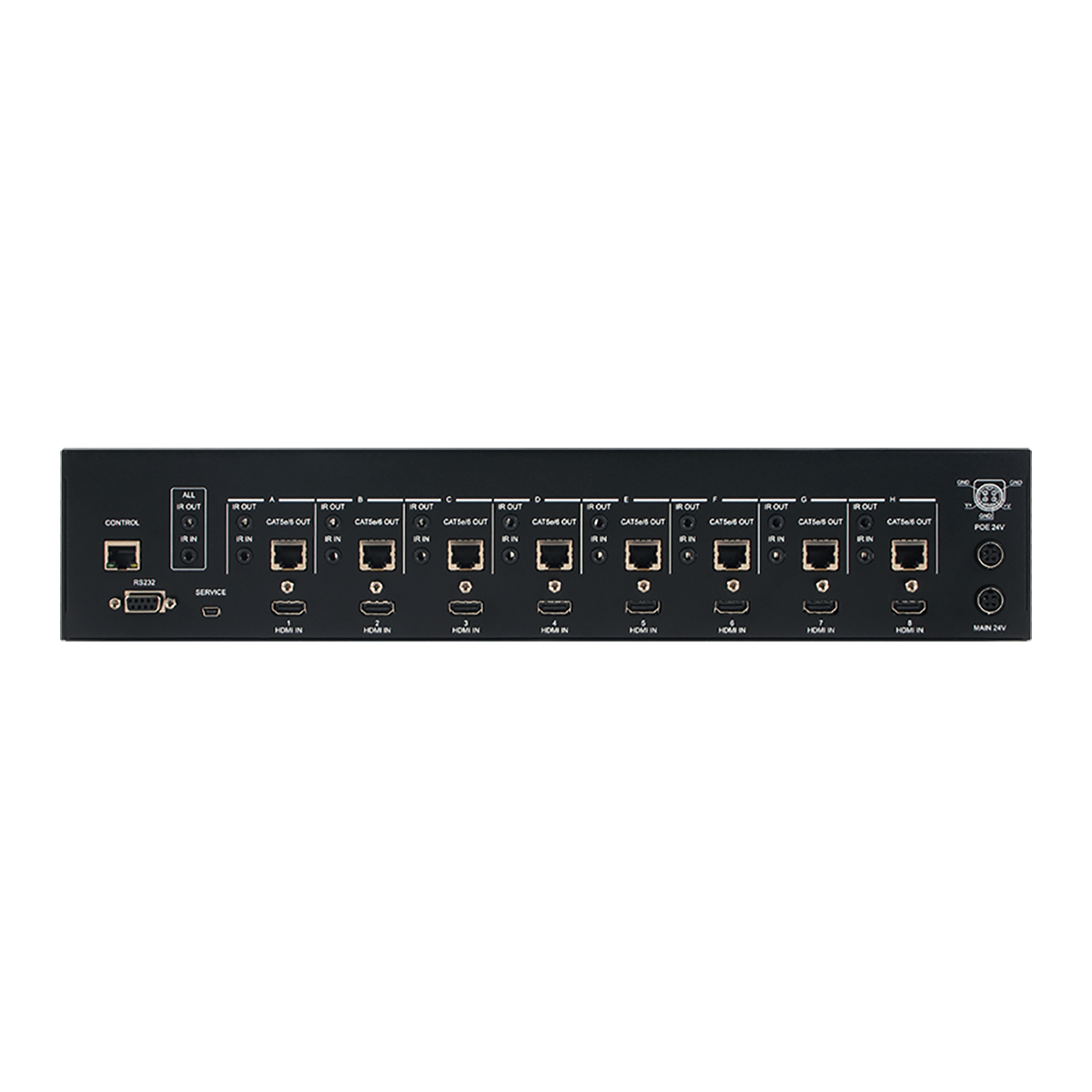

8xHDMI, 9xIR Extender, 1xRS-232, 1xLAN, 1xMini USB-B Type (For Firmware Update Only)
Output Port Type:
8xCAT5e/6/7, 9xIR
Number of Ports:
8x8
Power
Current Rating:
6.25A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Length:
24.9cm
Width:
43.8cm
Height:
9.3cm
Weight:
4402g
Other
Voltage Rating:
24V DC
Voltage Rating:
24V DC
Standards Met:
CE/FCC/UL Certified
