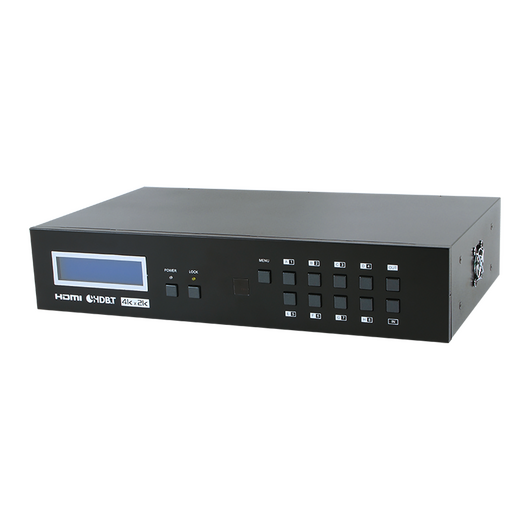

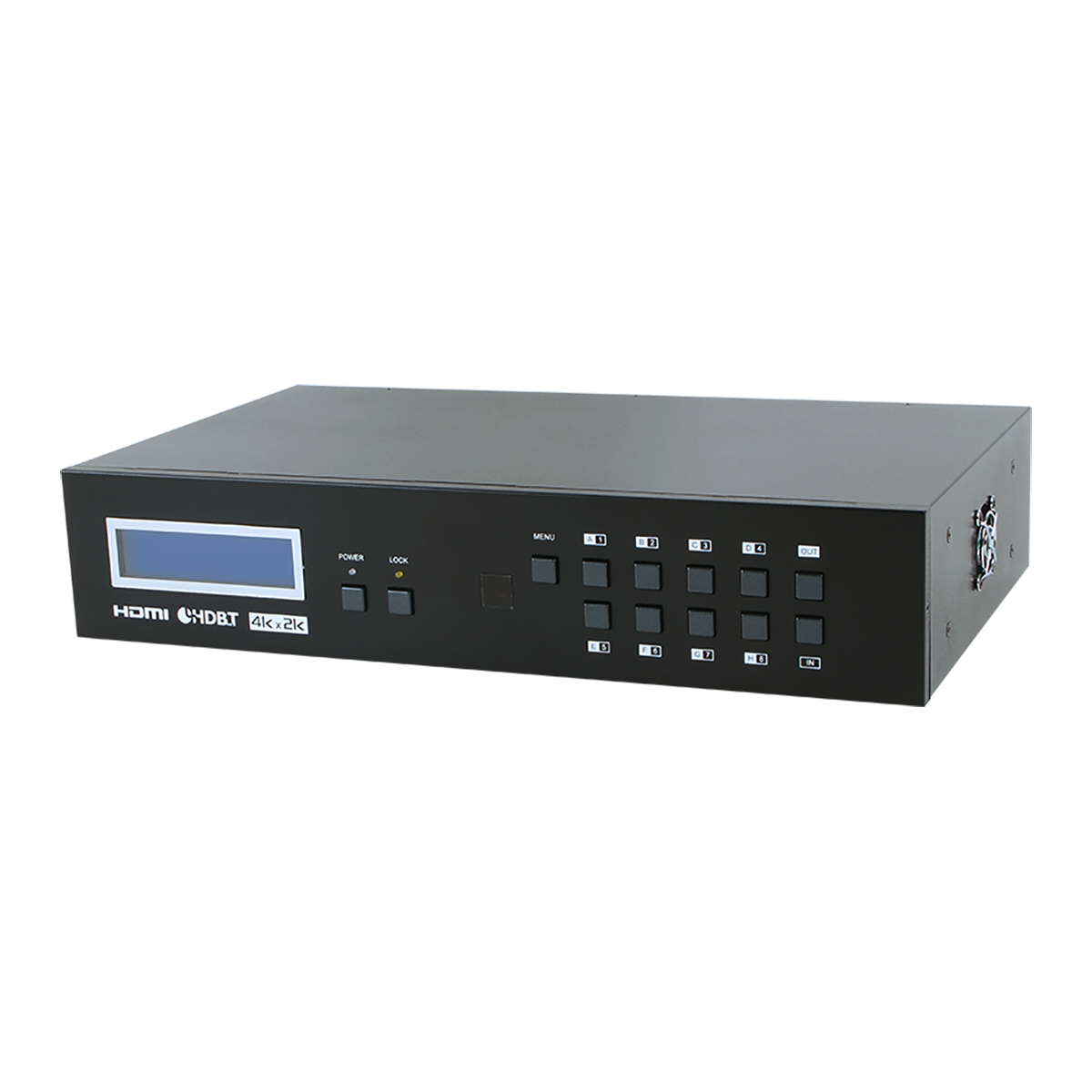

CMPRO-U8H8CVE 4K2K 8x8 HDMI Matrix over CAT5e/6/7

Write a review
CMPRO-U8H8CVE
Cypress Technology
Out of stock
Log in to see price Add to wish list

The 4K2K 8 by 8 HDMI Matrix over CAT5e/6/7 supports the transmission of video (resolutions up to 4K2K Full HD), multi-channel digital audio and control via IR, RS-232, Telnet or Web GUI from eight high definition sources to eight outputs over a single CAT5e/6/7 cable (up to 100m) for each output. It supports high resolution digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio as well as 3D content that can be displayed when connecting a 3D TV and 3D source. Additionally, the LAN connectivity will allow a 100BaseT network to be served to smart TVs or games consoles. The Power over Cable (PoC) function can power compatible receivers, providing greater flexibility in installations.

Features

  • HDMI, HDCP 1.1 and DVI Compliant
  • Supports resolutions VGA~WUXGA, 4K2K@24/25/30 & YUV_420 and 480i~1080p dependent upon the output display’s EDID settings
  • Supports distances up to 100 meters through CAT6/7 cables
  • Supports 3D signal display dependent upon the output display EDID settings
  • Supports PoC (Power over Cable) on compatible receivers only
  • Supports HDMI input up to 15 meters at 8-bit resolution or 10 meters at 12-bit resolution
  • Supports bi-directional IR from input and output locations

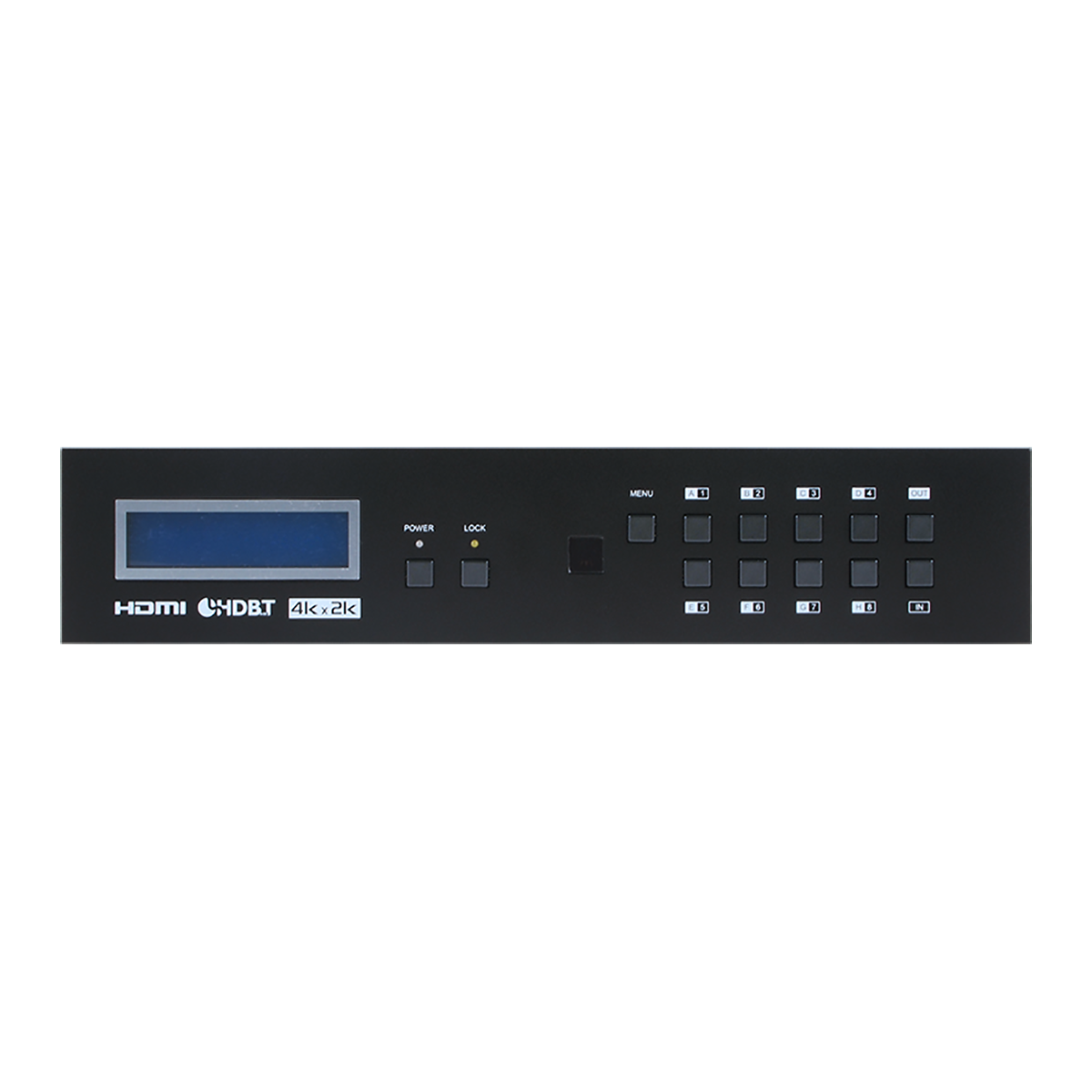

  • Supports RS-232, remote control, on-panel control and IP Control (Telnet & Web GUI)
  • Supports LAN serving function through the LAN port
  • 2U size design
  • Supports external and internal EDID settings
  • Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission

Note:

1. The PoC function is designed for powering compatible receiver units only—non-PoC receivers will need their own power supply. Receivers of another brand may not be compatible.

2. Do not connect the LAN port to CAT outputs of this device or to CAT inputs or receiver. Doing so may damage the unit.

3. Do not connect more than one Ethernet/network link within the Matrix system, doing so may tigger the device to shoot down.


Brand:
Cypress Technology
Specifications
Product Type:
HDMI Matrix Over CAT5
Maximum Operating Temperature:
+40°C
Colour:
Black
Special Features:
HDMI, HDCP 1.1 and DVI Compliant, 2U Size Design
Power Rating:
65W Tx (Main), 56W Rx (PoE)
Chassis Material:
Metal
Applications:
HDMI Matrix System, Video/Tv Wall Display and Control, Security Surveillance and Control, Commercial Advertising/Display and Control, University Lecture Hall/Display and Control, Retail Sales and Demonstration
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
4K2K 8x8 HDMI Matrix Over CAT5e/6/7, 2xIR Extender, 2xIR Blaster, 2x24V/6.25A DC Power Adaptor (1 for PoC), 2xPower Cord, 1xIR Remote Control with battery, 1xLeft and Right Ear Rack Set, Operation Manual
Performance
Resolution:
VGA and WUXGA, 4K2K@24Hz/25/30 & YUV_420 and480i to 1080pixels
Video Bandwidth:
300MHz/9Gbps
Baud Rate:
19200bps
Inputs and Ports

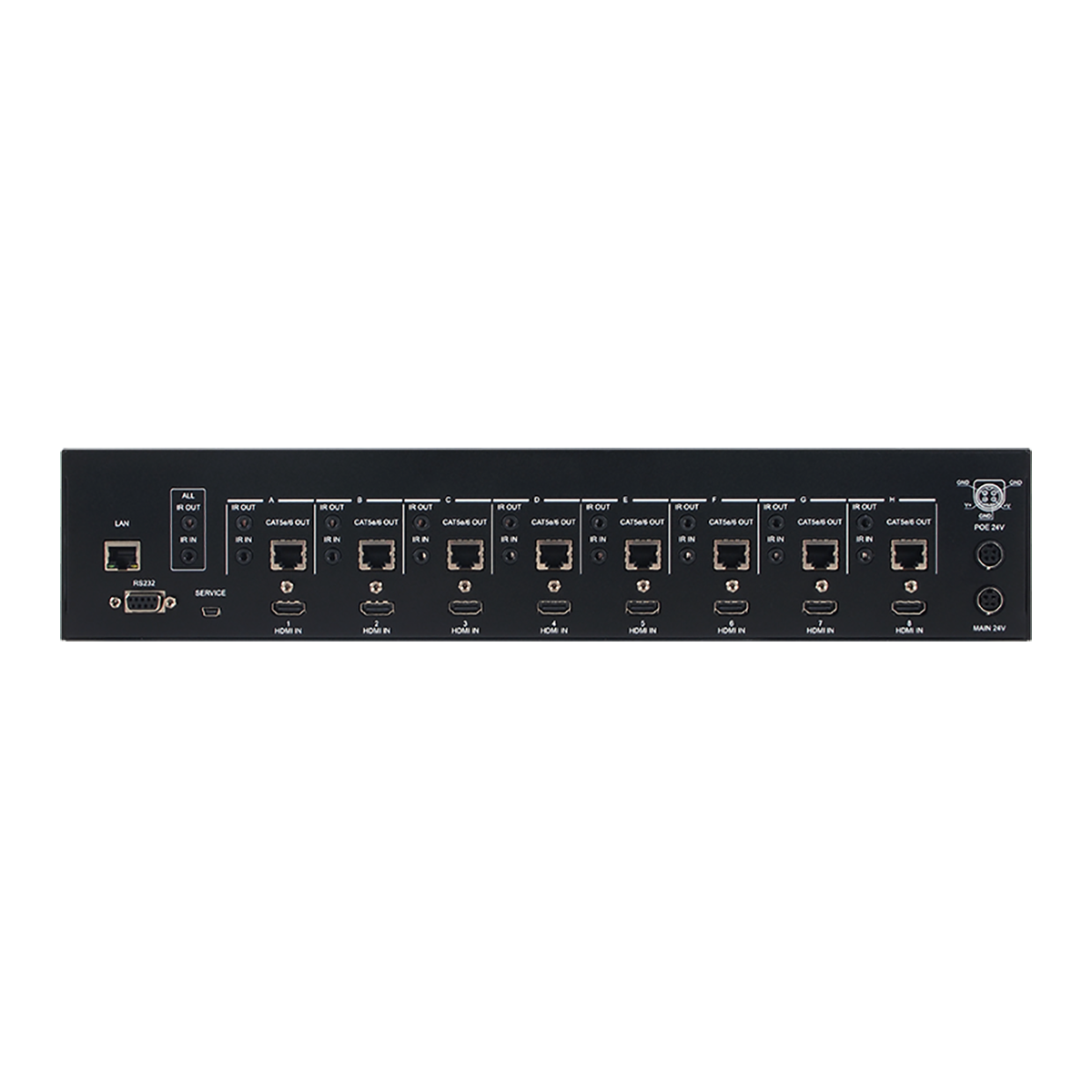

Input Port Type:
8xHDMI, 9xIR Extender, 1xRS-232, 1xLAN, 1xMini USB-B Type (For Firmware Update Only)
Output Port Type:
8xCAT5e/6/7, 9xIR
Number of Ports:
8x8
Power
Current Rating:
6.25A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Length:
24.9cm
Width:
43.8cm
Height:
9.3cm
Weight:
4402g
Other
Voltage Rating:
24V DC
Voltage Rating:
24V DC
Standards Met:
CE/FCC/UL Certified
