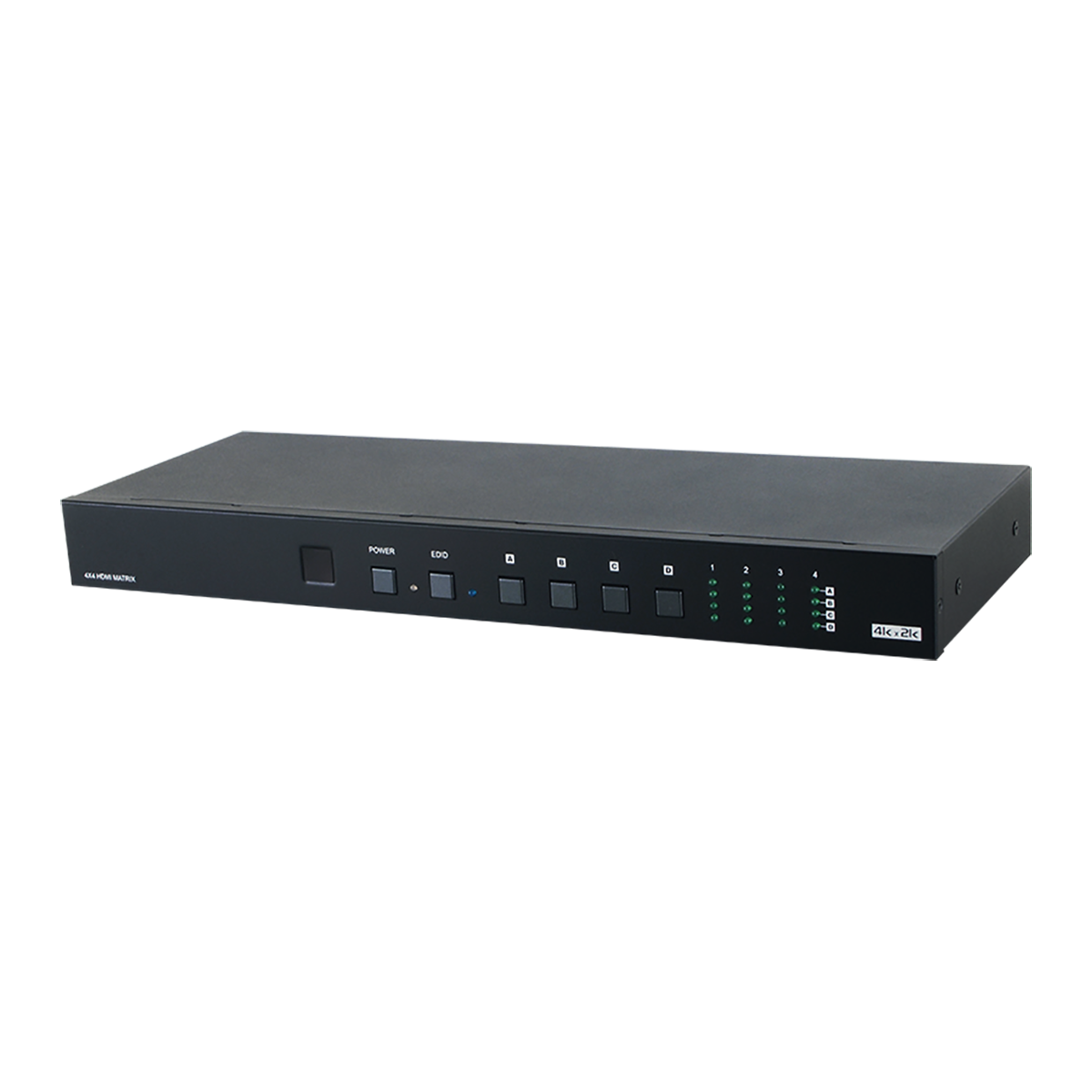

CMPRO-U4H4HS 4x4 HDMI 4K UHD Matrix
Please sign in so that we can notify you about a reply

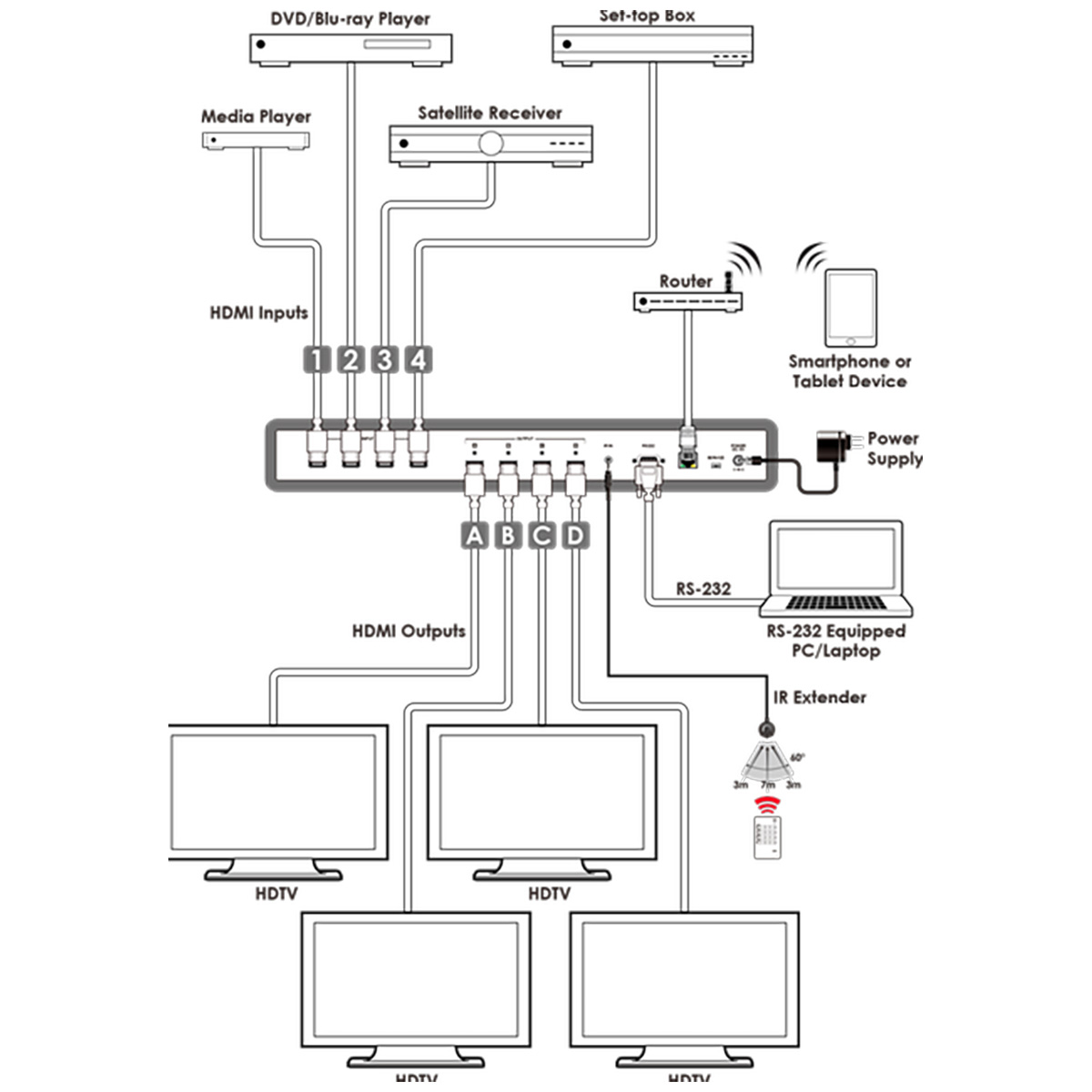

The 4 by 4 HDMI 4K UHD Matrix is capable of switching and routing an HDMI signal from any of its four sources to any of four connected HDMI displays, allowing any source to be shown independently on any display. It supports 3D, ‘Deep Color’ and high-definition lossless audio formats. Control of inputs and outputs can be easily operated through the on-panel buttons, IR remote control, RS-232 or Telnet/WebGUI control.
Features
- HDMI (with 3D & 4K2K supported), HDCP and DVI compliant
- Support Internal/External/Custom EDID management.

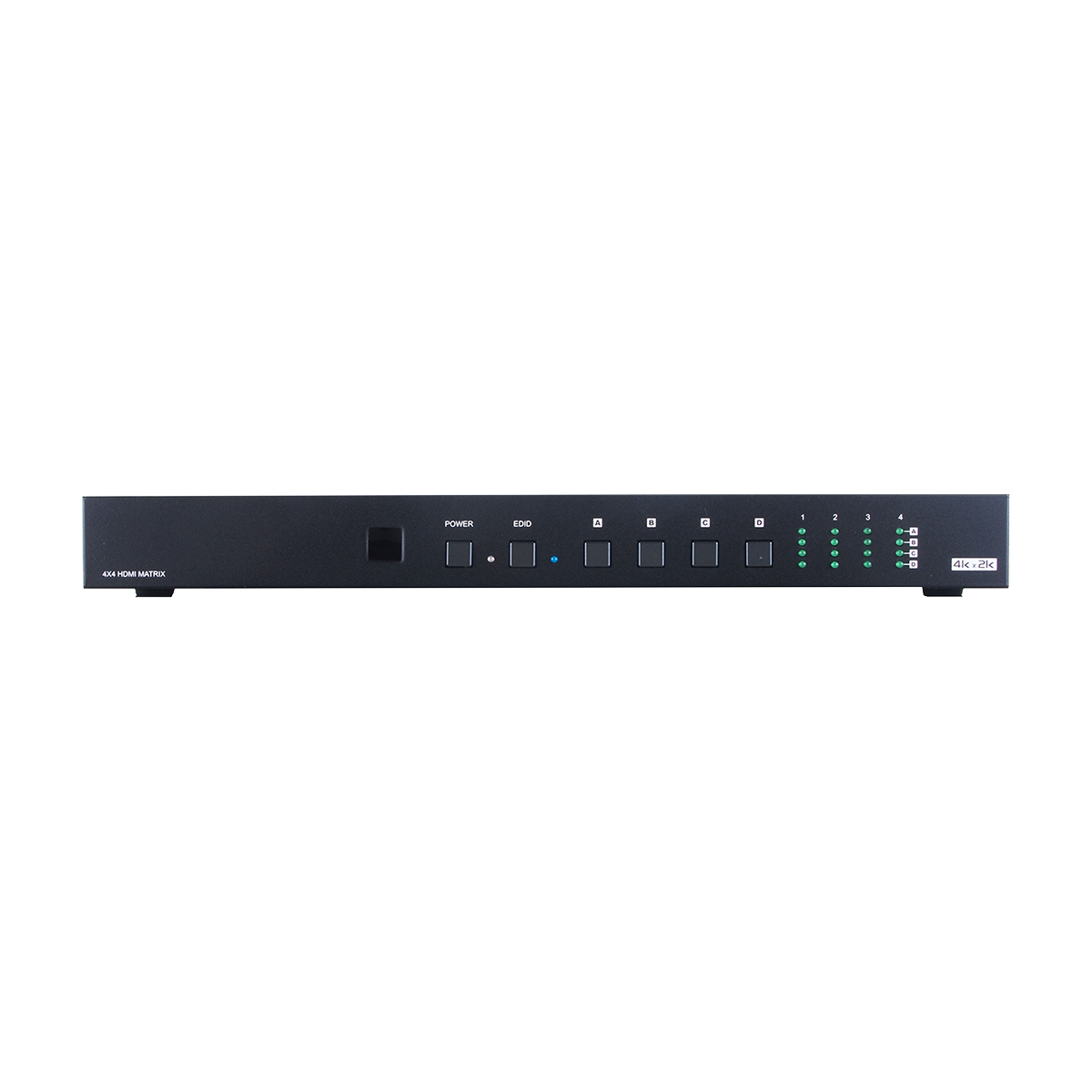

- Supports controls through on-panel buttons, IR remote control, RS- 232, Telnet and WebGUI
- Input port HDCP support Standard and Apple mode. The Apple mode selection to guarantees the use of Apple devices
Brand:
Cypress Technology
Product Type:
HDMI Matrix
Specifications
Maximum Operating Temperature:
+40°C
Colour:
Black
Special Features:
Support Internal/External/Custom EDID Management
Power Rating:
12.87W
Chassis Material:
Metal
Applications:
Showroom Display Control, Educational Demo, Residential and Commercial Installation Usage, Advertising Display
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
1x4 by 4 HDMI 4K UHD Matrix, 1xIR Extender, 1xRemote Control (CR-33), 1xUSB Type to Mini USB OTG Adaptor, 1x5V/4A DC Power Adaptor, 1xPower Cord, 1xOperation Manual
Performance
Resolution:
480i to 1080pixels@24Hz/50/60, 4K@24Hz/25/30,4K@50Hz/60 (YUV 420) & VGA and WUXGA
Video Bandwidth:
300MHz/9Gbps
Baud Rate:
115200bps
Inputs and Ports
Input Port Type:

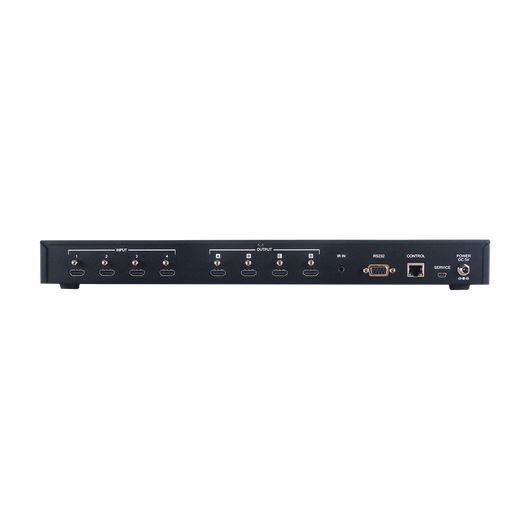

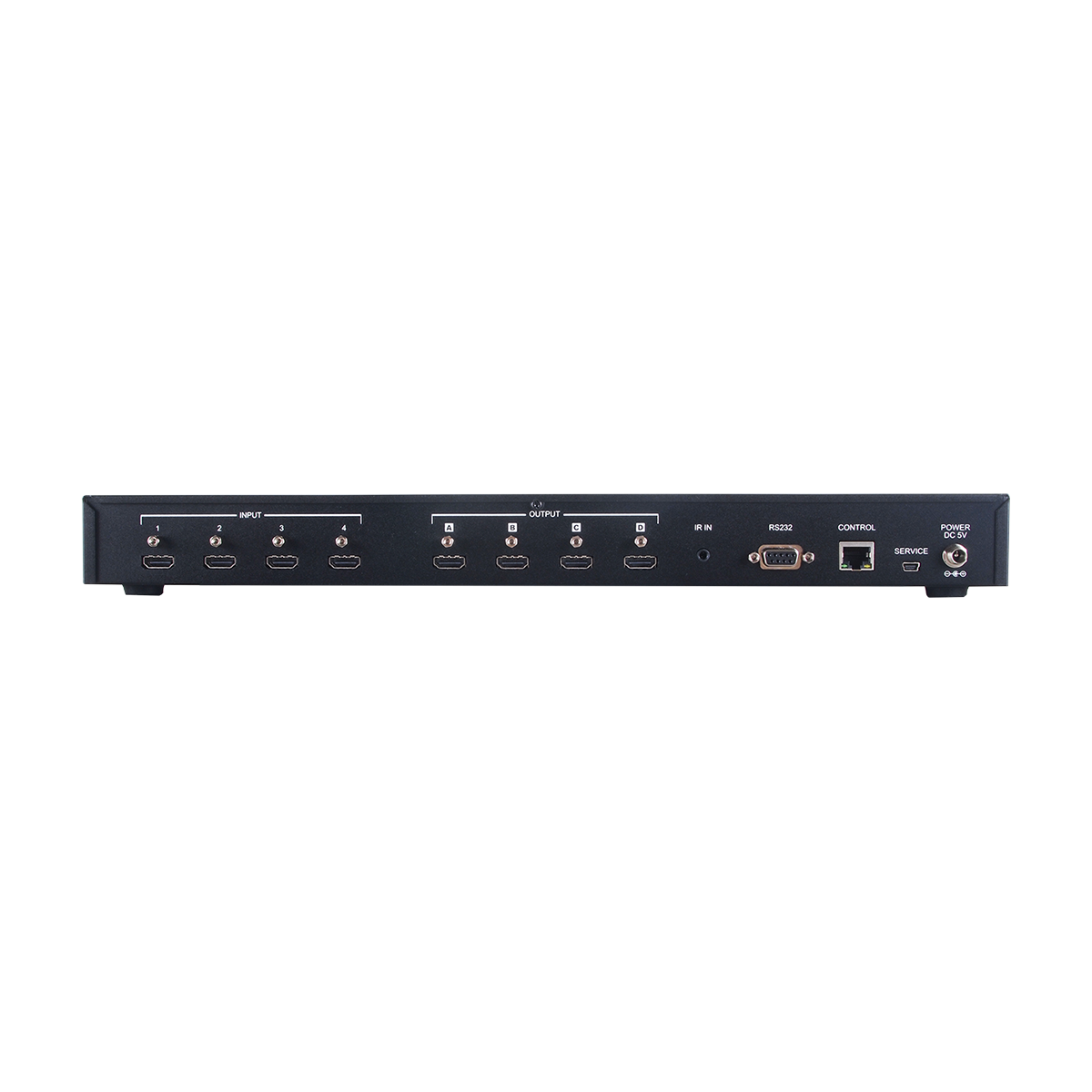

4xHDMI, 1xIR (3.5mm), 1xRS-232 (9-PinD-sub ), 1xControl (RJ45), 1xUSB (Service Only)
Output Port Type:
4xHDMI
Number of Ports:
4x4
Power
Current Rating:
4A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Length:
16.7cm
Width:
43.6cm
Height:
4.8cm
Weight:
1945g
Other
Voltage Rating:
5V DC
Voltage Rating:
5V DC
Standards Met:
CE/FCC/UL Certified
