CMPRO-U4H4CVPL 4K2K 4x4 HDMI Matrix over CAT5e/6/7
Please sign in so that we can notify you about a reply

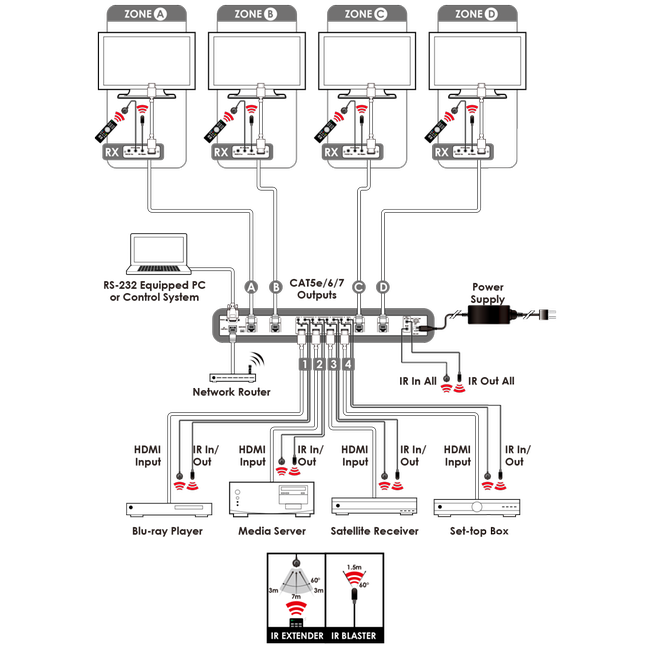

The 4K2K 4 by 4 HDMI Matrix over CAT5e/6/7 supports the transmission of video (resolutions up to 4K2K Full HD), multi-channel digital audio and control via IR, RS-232, Telnet or Web GUI from four high definition sources to four outputs over a single CAT5e/6/7 cable (up to 60m) for each output. It supports high resolution digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio as well as 3D content that can be displayed when connecting a 3D TV and 3D source.
Features
- HDMI, HDCP1.1 and DVI Compliant
- Supports HDMI 3D features
- Supports resolutions VGA~WUXGA and 4K2K @50/60(YUV_420) dependent upon the output display’s EDID settings
- Supports distances up to 60 meters through CAT5e/6/7 cables
- Supports 3D signal display dependent upon the output display EDID settings
- Supports HDMI input/output up to 10 meters at 8-bit/12-bit resolution or 5 meters at 4K2K resolution
- Supports bi-directional IR from input and output locations or 5 meters at 4K2K resolution

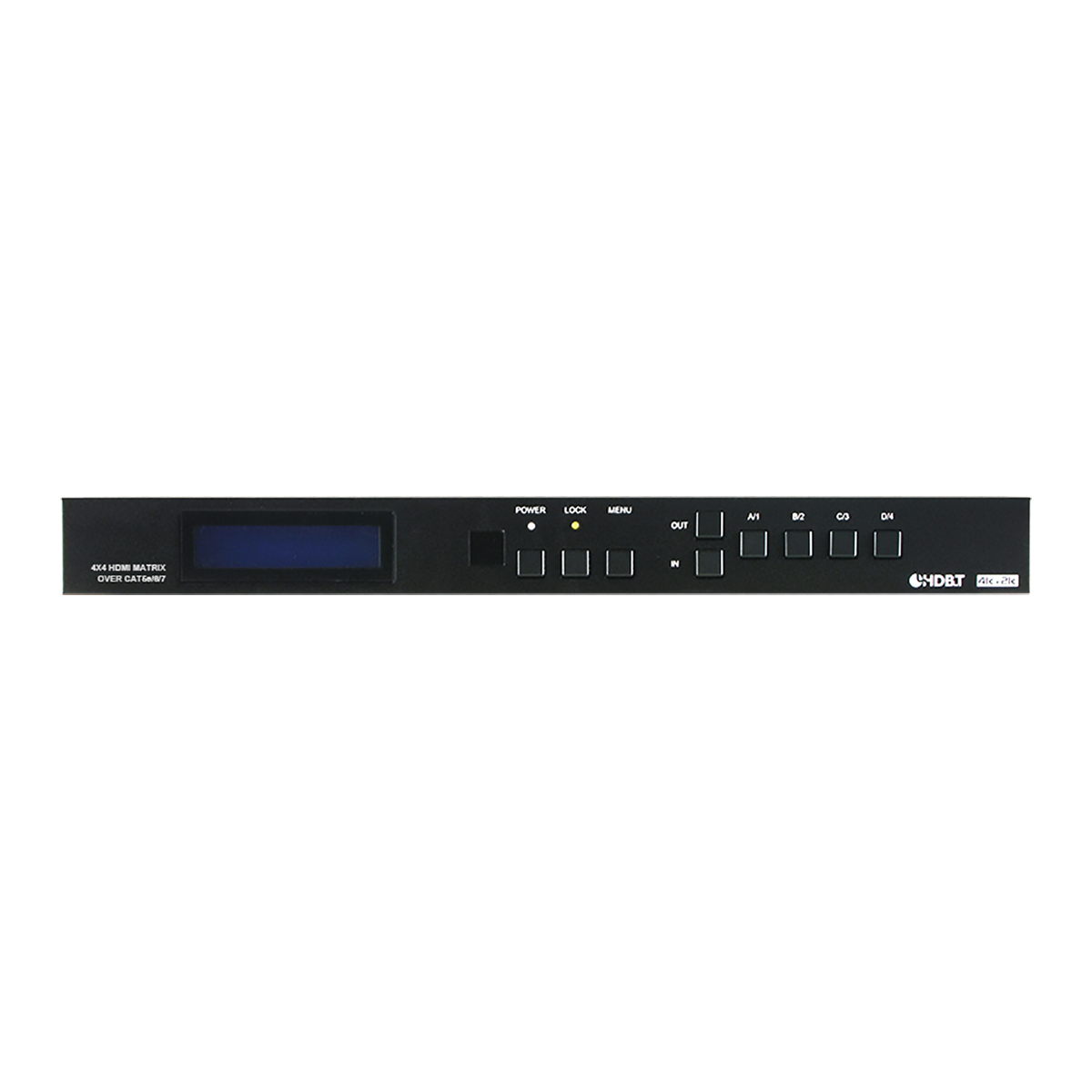

- Supports RS-232, remote control, on-panel control and IP Control (Telnet & Web GUI)
- 1U size design
- Supports external and internal EDID settings
- Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
Note:
Do not connect the LAN/CONTROL port to CAT outputs of this
device, doing so may tigger the device to shoot down.
Brand:
Cypress Technology
Product Type:
HDMI Matrix Over CAT5
Specifications
Maximum Operating Temperature:
+40°C
Colour:
Black
Special Features:
HDMI, HDCP 1.1 and DVI Compliant, Supports HDMI 3D Features
Power Rating:
66W
Chassis Material:
Metal
Applications:
HDMI Matrix System, Video/Tv Wall Display and Control, Security Surveillance and Control, Commercial Advertising/Display and Control, University Lecture Hall/Display and Control, Retail Sales and Demonstration
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
4K2K 4x4 HDMI Matrix Over CAT5e/6/7, 1xIR Extender, 1xIR Blaster, 1x24V/3.75A DC Power Adaptor, 1xPower Cord, 1xIR Remote Control with battery, 1x Right and Left Ear Rack Sets, Operation Manual
Performance
Video Bandwidth:
340Mbps/10.2Gbps
Baud Rate:
19200bps
Inputs and Ports
Input Port Type:

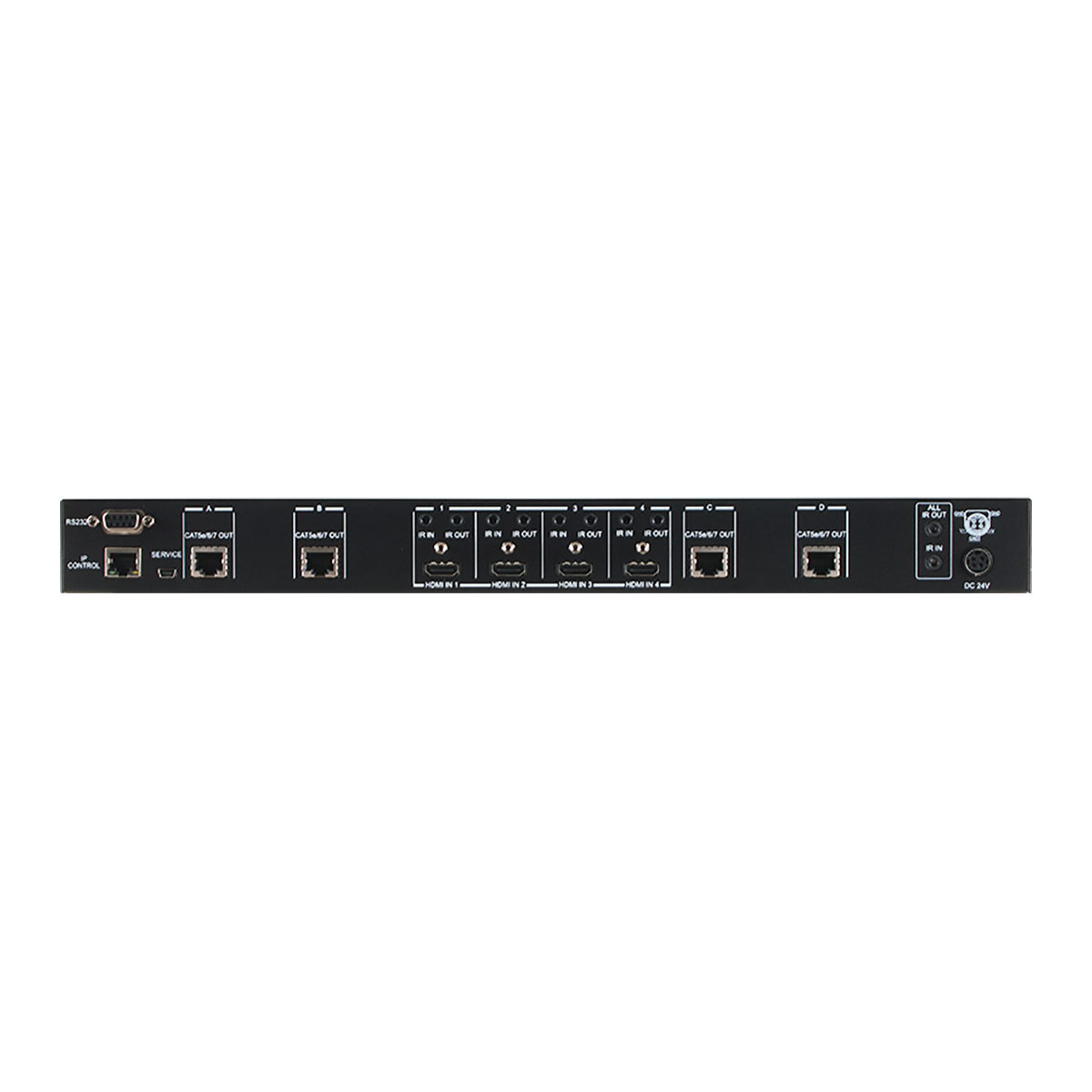

4xHDMI, 5xIR Extender, 1xRS-232, 1xRJ45(Control), 1xMini USB Type B (For Firmware Updated Only)
Output Port Type:
4xCAT5e/6/7, 5xIR Blaster
Number of Ports:
4x4
Power
Current Rating:
3.75A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Length:
25.6cm
Width:
43.6cm
Height:
4.8cm
Weight:
3352g
Other
Voltage Rating:
24V DC
Voltage Rating:
24V DC
Standards Met:
CE/FCC/UL Certified
