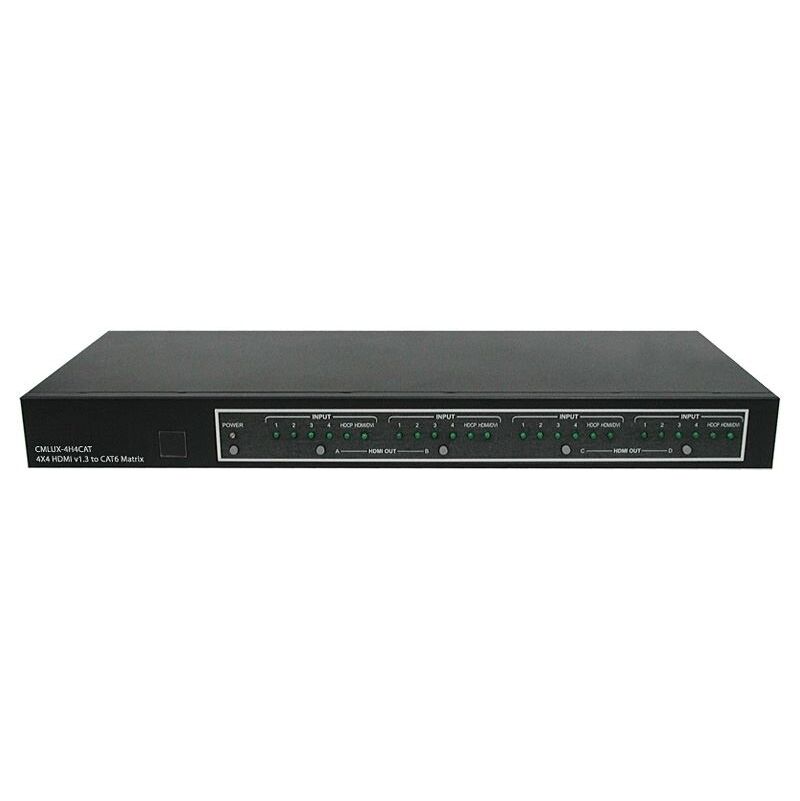

CMLUX-4H4CAT 4x4 HDMI to Dual Cat.6 Matrix
Please sign in so that we can notify you about a reply
The CMLUX-4H4CAT is a 4 by 4 HDMI over CAT6 Matrix that is a high performance device, boasting features such as a remote control, IR blaster and IR receiver. Compatible with Deep Color Video and high definition digital audio, this device has the ability to direct any of its four HDMI sources to any of the four HDMI displays, with each display showing a different source. Furthermore, since the signal is sent over CAT6 cables, you gain a long operating distance (50m at 1080p 8 bits) and if connected to a CAT 6 receiver or splitter you can extend your operating range over even longer distances. Lastly, with four individual output IR blasters, users are able to control the input sources with their existing remote controls. Are you in need of a device that offers you complete control over HDMI devices and displays, then look no further the CMLUX-4H4CAT 4 x 4 HDMI over CAT6 Matrix is the device you have been searching for.
Brand:
Cypress Technology
Product Type:
HDMI Over Dual-CAT6 Extender System
Specifications
Maximum Operating Temperature:
+40°C
Colour:
Black
Special Features:
Input/output LED Indicator, Has RS-232 Control
Power Rating:
16.5W
Chassis Material:
Aluminium
Applications:
Control Multiple Sources and Displays, Integrate Your Home Entertainment System, Multi-Task Project Presentation, Showroom Display, Advertising Display Control, System Installation Control
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
4 by 4 HDMI Matrix, Remote Control (with Battery), 1xIR Receiver, 4xIR Blasters, 5V DC Power Supply Adaptor, Power Cord, Operation Manual
Performance
Resolution:
480I to 1080pixels@50Hz/60Hz, 1080pixels@24Hz, VGA to UXGA
Video Bandwidth:
2.25MHz/6.75Gbps
Baud Rate:
9600bps

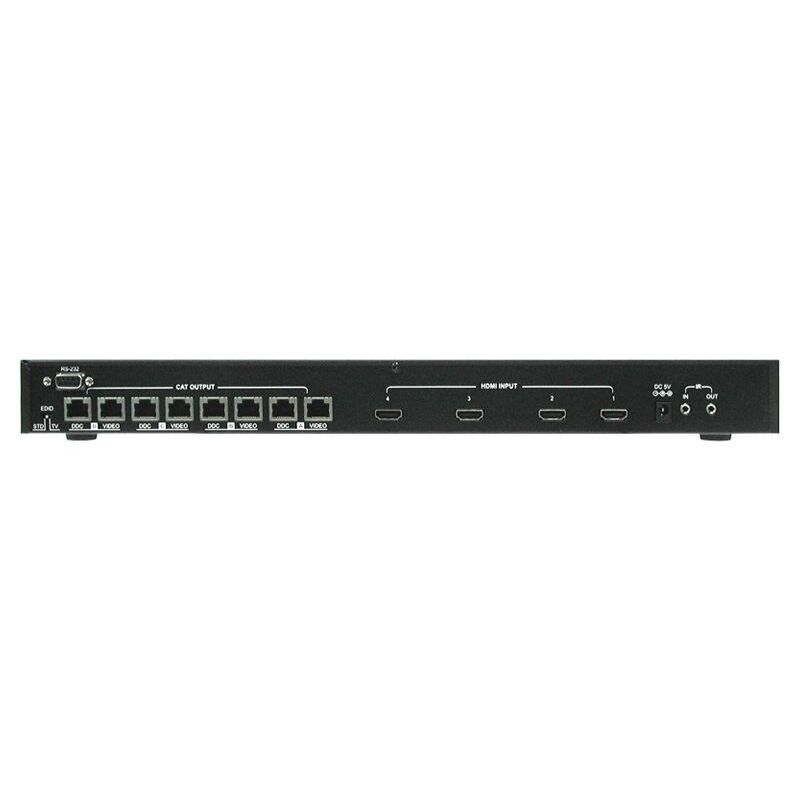

Inputs and Ports
Input Port Type:
4xHDMI Female Port
Output Port Type:
4xVideo/DDC CAT 6 Ports
Number of Ports:
4x4
Power
Current Rating:
6A
ESD Protection Rating:
±10kV (Air-Gap Discharge), ±6kV (Contact Discharge)
Dimensions
Length:
17.5cm
Width:
43.8cm
Height:
4.4cm
Weight:
2150g
Other
Voltage Rating:
5V DC
Voltage Rating:
5V DC
Standards Met:
CE/FCC/UL Certified
