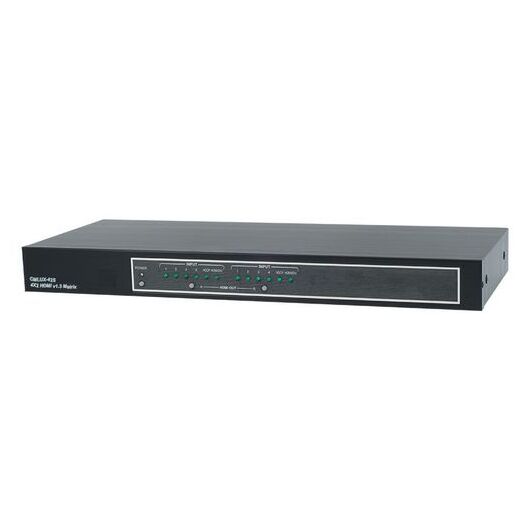

CMLUX-42S 4x2 HDMI Matrix switcher
Please sign in so that we can notify you about a reply
The 4x2 HDMI V1.3 Matrix is the ideal solution for connecting all your HDMI sources and displays together, and thanks to the included remote this system gives you complete control over your media environment. It features four HDMI input and two HDMI output with a remote control for you to link your favourite HDMI devices allowing you to enjoy movies, music, or games whenever you want to. It is suitable for transferring 1080p full HD video with deep colour and bit stream digital audio with maximum performance and supports HDMI 1.3, HDCP 1.1 and DVI 1.0. RS232 Port for professional home installations.
Features
- HDMI 1.3, HDCP 1.1 and DVI 1.0 compliant.
- Deep Colour 12 bit and a new lossless compressed digital audio.
- The HDMI input is compensated, clock/phase adjusted, and jitter Free so the output is a high quality HDMI signal.
- Has input source LED indicators for each output option.
- PC and HDTV resolutions from VGA to UXGA and 480i to 1080p.
- Supports RS-232 control.
- Supports IR remote control and IR extender.
- Dolby® Digital, DTS digital audio transmission (32-192 kHz).
- LPCM7.1 channels output from each independent HDMI ports.
- HDMI cable distance with 1080p/12 bit the Input distance is 10M.
- HDMI cable distance output 8 bit 10M / 12 bit 6M.
Brand:
Cypress Technology
Specifications
Product Type:
HDMI Matrix
Maximum Operating Temperature:
+40°C
Colour:
Black
Special Features:
Compatible with all HDMI sources and displays
Power Rating:
8W
Chassis Material:
Metal
Applications:
High Performance HDMI 1.3 Matrix of 4 (Four) Input and 2 (Two) Output with a Remote Control for You to Link Your favourite HDMI Devices Allowing you to Enjoy Movies/Music/or Games Whenever You Want To, When An HDMI Signal Goes Through the System/It Is Re-
Minimum Operating Temperature:
0°C
Includes:
4 by 2 V1.3 HDMI Matrix, Remote Control CR33 (with Battery), IR Receiver, Power Cord, 5V DC Power Supply Adaptor, Operation Manual
Performance
Resolution:
480I to 1080pixels@50Hz/60Hz, 1080pixels@24Hz, VGA to UXGA
Video Bandwidth:
2.25Gbps (Single Link)
Baud Rate:
9600bps
Inputs and Ports
Input Port Type:
4xHDMI Female Port
Output Port Type:
2xHDMI Female Ports
Number of Ports:
4x2
Power
Current Rating:
6A
Dimensions
Length:
17.5cm
Width:
43.8cm
Height:
4.9cm
Weight:
3100g
Other
Voltage Rating:
5V DC
Voltage Rating:
5V DC
Standards Met:
CE/FCC/UL Certified
