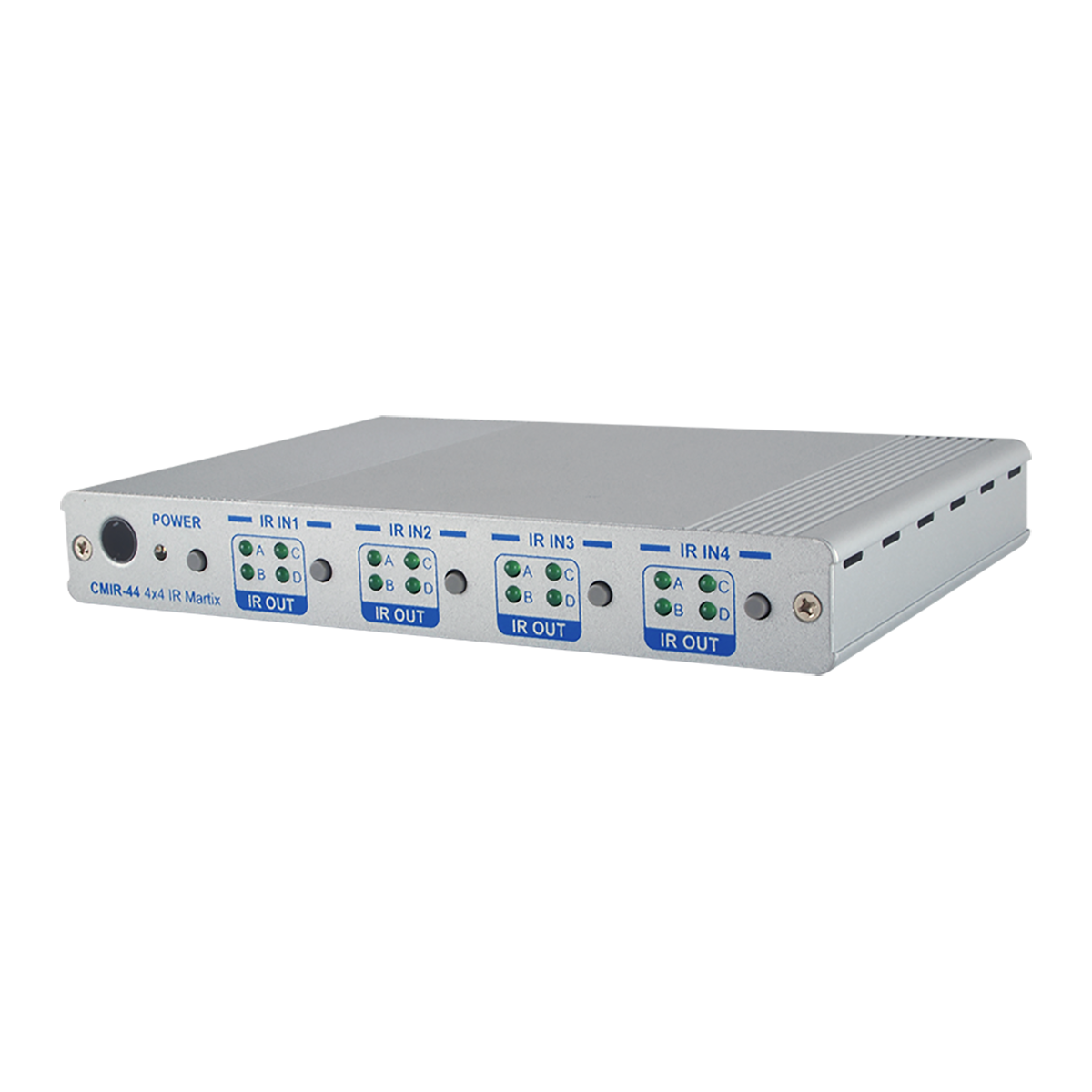

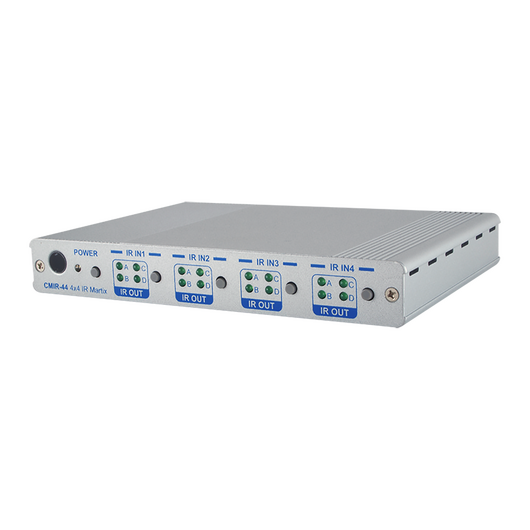

CMIR-44 4x4 Infrared Matrix

The Infrared 4 by 4 Matrix is designed to control your source devices from beside your display/receiver. Using the original remote, you can control DVD/ Blu-ray players, satellite and set-top-boxes and with a cross matrix design this device gives the ability to send infrared signals from place to place. When used with an HDMI/converter matrix, this brilliant product will allow you to freely manage your sources and displays. Simply place the IR receiver near the display and put the IR blaster in a position so that all devices will be able to function properly, even when they are hidden in a cabinet or placed far away. So if your looking for a way to extend IR control over great distances, you have but one choice:The Infrared 4 by 4 Matrix.

Features
  • Supports independent IR receiver and IR blaster selection and control
  • This device does not send audio/video signals, it only transmits and receives infrared signals to control equipment that is far away, using IR extender cables
  • Supports a frequency of 30kHz ~ 50kHz
  • Use your existing remote controls
Brand:
Cypress Technology
Specifications
Product Type:
Infrared Matrix
Maximum Operating Temperature:
+40°C
Colour:
Silver
Special Features:
Supports independent IR receiver and IR blaster selection and control
IR Frequency:
30 to 50kHz
Chassis Material:
Aluminium
Applications:
Control Multiple Sources, System Control, Showroom Control
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
4 by 4 Infrared Matrix, Remote Control CR81-06F09 with battery, 5V DC power adaptor, Operation Manual, 5xIR Receiver cables
Inputs and Ports
Input Port Type:
4xIndependent IR Blasters, 1xTotal IR blaster Control
Output Port Type:
4xIndependent IR Receiver, 1xTotal IR Receiver Control
Number of Ports:
4x4
Power
Current Rating:
1A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Length:
12.4cm
Width:
18cm
Height:
2.5cm
Weight:
450g
Other
Voltage Rating:
5V DC
Voltage Rating:
5V DC
Standards Met:
CE/FCC/UL Certified
