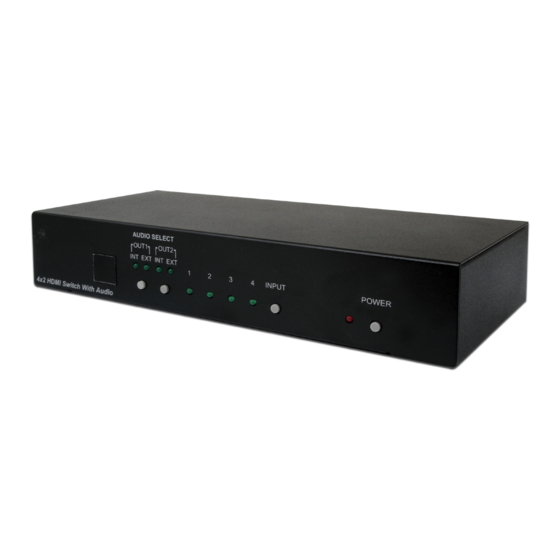

CLUX-42SA 4x2 HDMI Switcher
Please sign in so that we can notify you about a reply
The HDMI v1.3 Switcher with audio from Cypress Technology provides an excellent solution when trying to connect all the devices and sources in your possession. Furthermore, with the included remote control you have the ability to place the devices anywhere you want to. The HDMI v1.3 Switcher with audio from Cypress Technology supports an independent R/L input, allowing you to select their desired audio output (either from R/L or HDMI input) with an HDMI input connection. Also, this HDMI v1.3 Switcher supports HDMI 1.3, HDCP 1.1 and DVI 1.0, and can also transfer Deep Color video and bit stream digital audio. The CLUX-42SA HDMI V1.3 Switcher with Audio, organising made easy.
Features- HDMI 1.3, HDCP 1.1 and DVI 1.0 compliant
- Supports digital video formats in Deep Color Mode at up to 36 bits (12bits/ color) and new lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) digital audio
- The HDMI input signal is compensated, clock/phase adjusted, and jitter free, so it becomes a brand new standard HDMI signal
- Has input source LED indicators for each
Brand:
Cypress Technology
Product Type:
4x2 HDMI Switcher
Specifications
Maximum Operating Temperature:
40°C
Colour:
Black
Control Port Type:
RS-232
Special Features:
Supports IR Remote Control and IR Extender, Compatible with all HDMI Sources and Displays
Power Rating:
9W
Chassis Material:
Metal
Applications:
Simultaneously Display Multiple Sources on two LCD TV’s, Showroom Display, Educational Presentation
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
Operation Manual, 5V DC Power Supply Adaptor, Remote Control (CR-76)
Performance
Resolution:
480i to 1080Pixel
Baud Rate:
9600bps
Inputs and Ports
Input Port Type:
4xHDMI
Output Port Type:
2xHDMI
Number of Ports:
4x2
Power
Current Rating:
5A
ESD Protection Rating:
±10kV (Air-Gap Discharge), ±6kV (Contact Discharge)
Dimensions
Length:
11.5cm
Width:
24.1cm
Height:
4.8cm
Weight:
860g
Other
Voltage Rating:
5V DC
Standards Met:
US/EU Standards, CE/FCC/UL Certified
