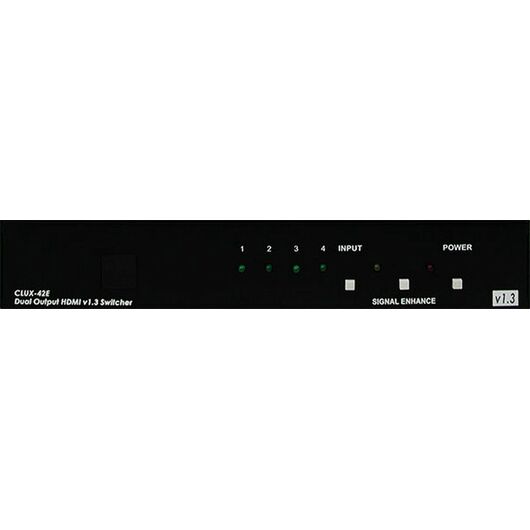

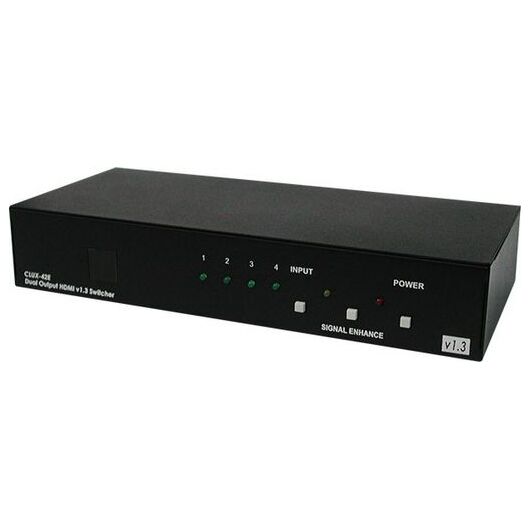

CLUX-42E 4×2 HDMI Switcher

Write a review
CLUX-42E
Cypress Technology
Out of stock
Log in to see price Add to wish list

This is a high performance HDMI Distributor with Switcher for HDMI source to view on two HDTV displays. It is compatible to HDMI specifications that can transfer Deep Colour (10-bit and 12-bit) video and new lossless compressed (LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) digital audio, with a high bandwidth up to 225MHz (6.75Gbps). It also does signal amplification and equalization, so as to provide high performance I/O of audio and video. This is a high performance HDMI Distributor with Switcher for HDMI source to view on two HDTV displays. It is compatible to HDMI specifications that can transfer Deep Colour (10-bit and 12-bit) video and new lossless compressed (LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) digital audio, with a high bandwidth up to 225MHz (6.75Gbps). It also does signal amplification and equalisation, so as to provide high performance I/O of audio and video.

Features
  • HDMI, HDCP1.1 and DVI1.0 compliant
  • Deep colour video up to 12bit, 1080p@ (24/60) Hz
  • Four HDMI sources to connect up to two HDMI displays simultaneously
Brand:
Cypress Technology
Specifications
Product Type:
4×2 HDMI Switcher
Maximum Operating Temperature:
40°C
Colour:
Black
Control Port Type:
RS-232
Special Features:
Four HDMI Sources to Connect up to Two HDMI Displays Simultaneously, Supports Signal Amplification and Equalization Before Transmitting
Chassis Material:
Metal
Minimum Operating Temperature:
0°C
Performance
Resolution:
480i to 1080Pixel
Baud Rate:
9600bps
Inputs and Ports
Input Port Type:
4xHDMI
Output Port Type:
2xHDMI
Number of Ports:
4x2
Dimensions
Length:
10.4cm
Width:
24cm
Height:
4.4cm
Weight:
785g
Other
Voltage Rating:
5V DC
Standards Met:
US/EU Standards, CE/FCC/UL Certified
