CDPW-V4H2HP 4 by 2 HDMI 4K UHD Wall Plate Matrix with HDCP 2.2
Please sign in so that we can notify you about a reply

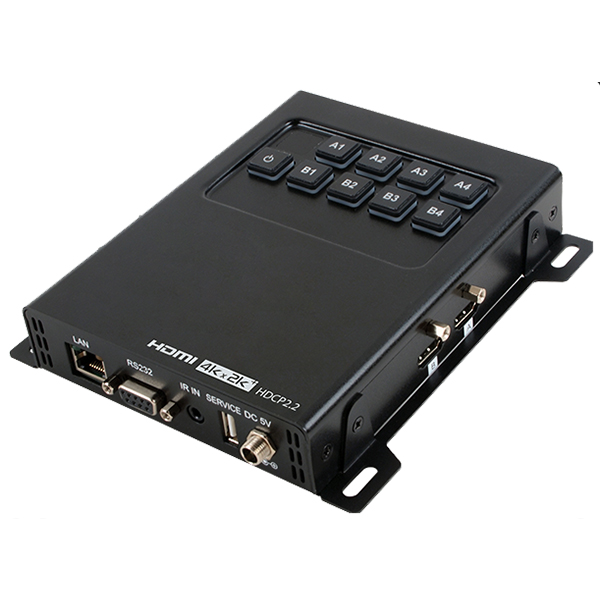

This 4 by 2 HDMI Wall Plate Matrix is an advanced HDMI solution designed for Ultra High-Definition signal distribution needs. It allows you switch between and distribute one of four 6G HDMI inputs to two simultaneous 6G HDMI outputs. It has support for the latest HDMI features such as support for 4K2K@60 resolution, 48-bit ‘Deep Color’, high definition audio and more. The device can be easily operated through RS-232, Telnet, WebGUI, IR remote and on-panel controls.
Features
- HDMI with 4096 x 2160p@60 supported
- Supports 4 HDMI inputs of one 4096 x 2160p@60 and 2 HDMI outputs of two 4096 x 2160p@60
- Supports data rate up to 6Gbps (600MHz) and Deep Color up to 1080p 16-bit
- Supports pass-through of HD audio formats of LPCM 2/5.1/7.1CH, Dolby Digital 2~5.1CH, DTS 2~5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio
Brand:
Cypress Technology
Specifications
Product Type:
HDMI Wall Plate Matrix
Colour:
Black
Special Features:

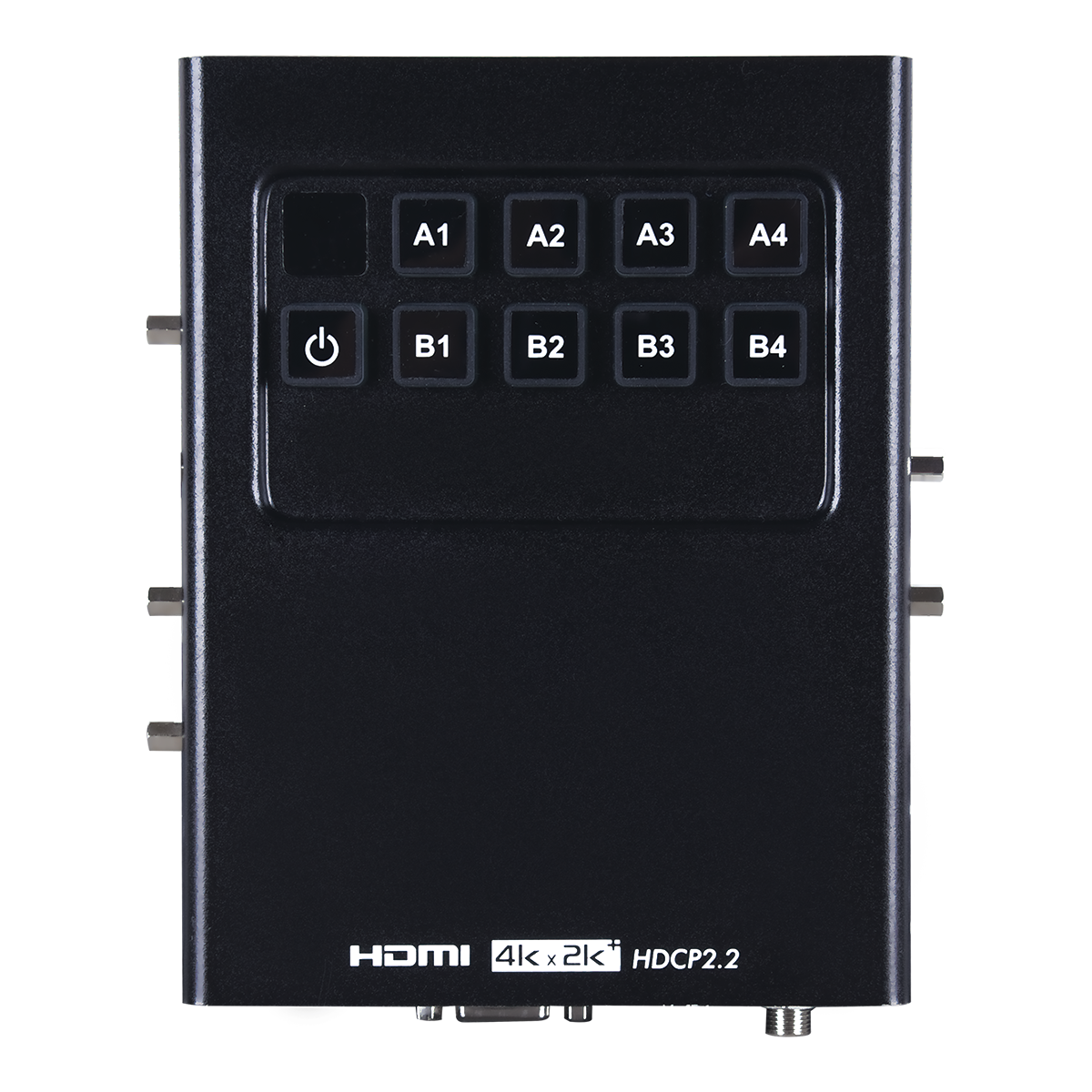

The device can be easily operated through RS-232, Telnet, WebGUI, IR remote and on-panel controls
Power Rating:
5.5W
Chassis Material:
Metal
Performance
Resolution:
4096x2160pixels@60Hz
Inputs and Ports
Input Port Type:

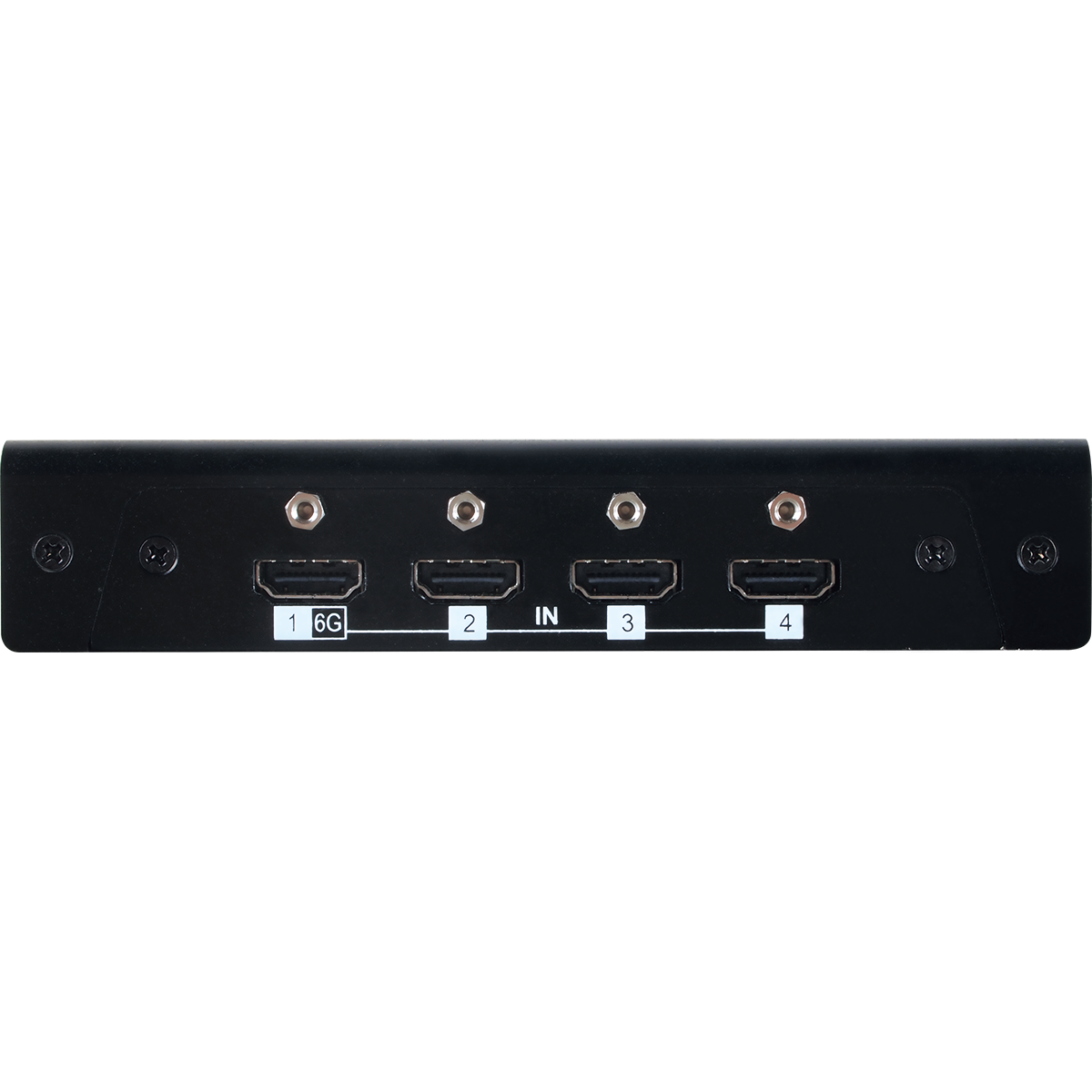

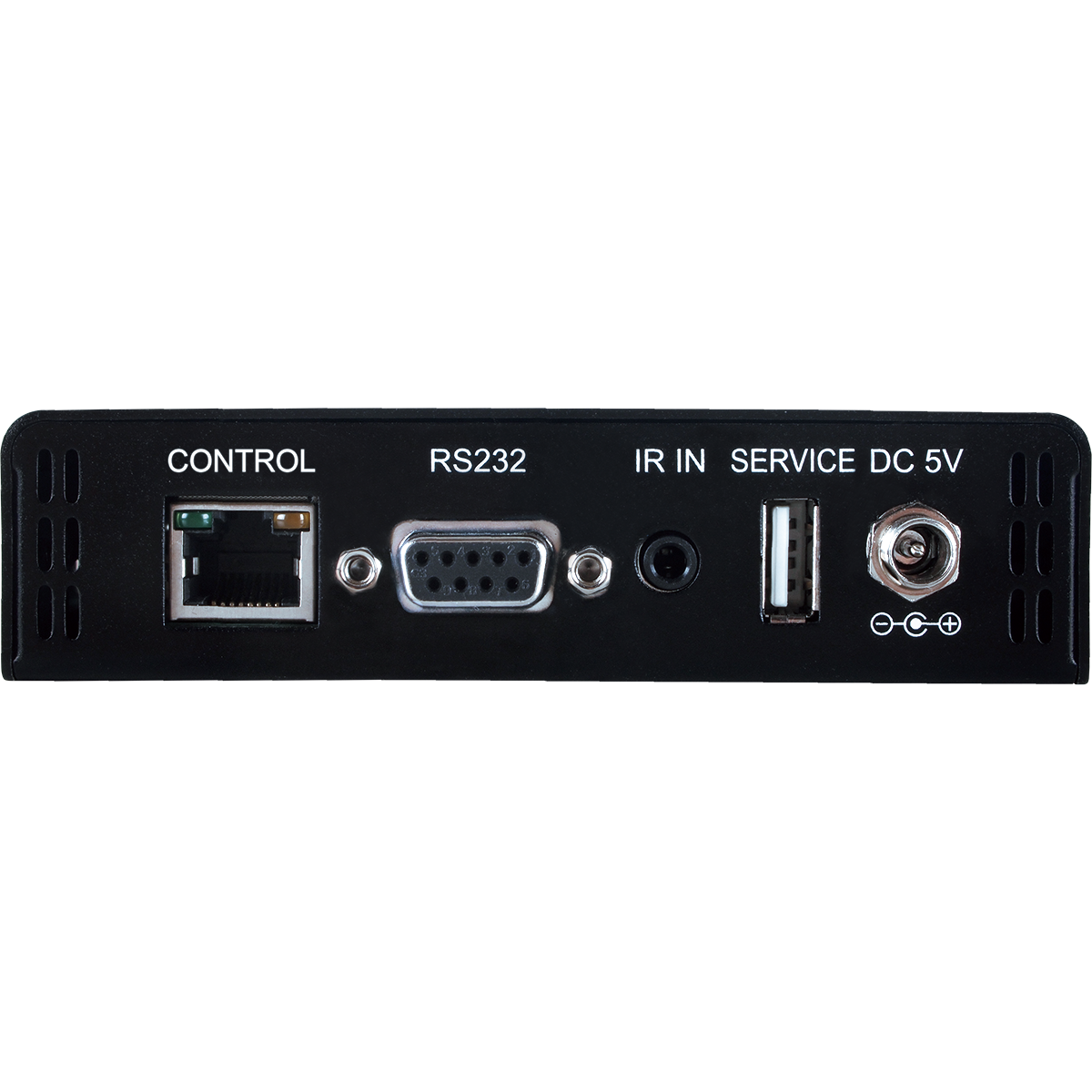

4xHDMI, 1xIP Control (RJ45), 1xIR (3.5mm), 1xRS-232 (9-Pin D-sub), 1xUSB (Service Only)
Output Port Type:
2xHDMI
Number of Ports:
4x2
Power
Current Rating:
2.6A
Dimensions
Length:
16.2cm
Width:
15cm
Height:
3.1cm
Weight:
744g
Other
Voltage Rating:
5V DC
Voltage Rating:
5V DC
Standards Met:
CE/FCC/UL Certified
