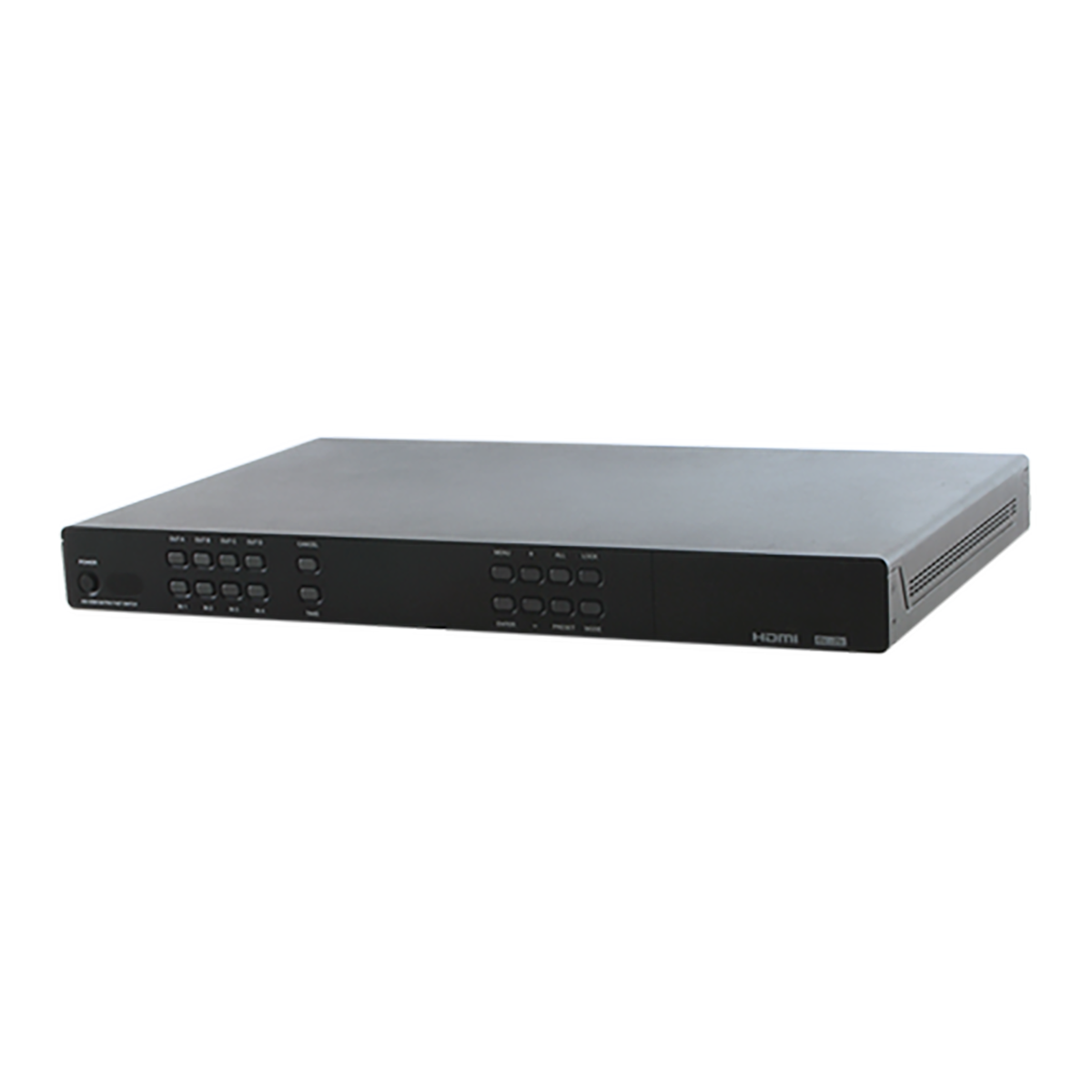

CDPS-UC4H4HFS 4x4 HDMI 4K UHD Matrix with Control System

Write a review
CDPS-UC4H4HFS
Cypress Technology
Out of stock
Log in to see price Add to wish list

This 4×4 HDMI 4K UHD Matrix allows up to 4 HDMI sources to be displayed on any of up to 4 HDMI displays. The built-in fast switching technology greatly reduces the time required between switches before a newly selected source is live. The included control system functionality provides access not only to direct but also indirect control interfaces for all of your devices. Direct control methods such as IR (with IR learning), RS-232, relay and DC triggers allow users to maintain traditional styles of control over devices while indirect device control is possible using telnet allowing users to control newer, more complicated devices. The operation of the system can be easily managed through the included WebGUI by connecting with your PC, laptop or even a mobile device such as a tablet. Front-panel controls, with an OLED screen to display current settings, are available for hands-on control. Additionally Telnet, RS-232, and an IR remote are available control options.

Features
  • HDMI v1.4a with 3D and 4K UHD support, DVI 1.0 compatible
  • Supports 4 HDMI inputs and 4 HDMI outputs
  • Supports resolutions up to 4K UHD:3840×2160@24/25/30Hz & 3840×2160@50/60Hz (YUV 4:2:0), 4096×2160@24/25/30Hz & 4096×2160@50/60Hz (YUV 4:2:0)
  • Supports pass-through of LPCM 2.0/5.1/7.1, bitstream, and HD bitstream audio formats
  • Supports individual or global EDID management
  • Supports HDCP 1.4 for all HDMI inputs and outputs
  • Per-input HDCP support control:Choose between Standard and Apple mode (Apple mode allows for the display of non-HDCP required content from Apple devices on non-HDCP displays)
  • Supports 1 IR Learning input, 8 IR Blaster outputs, 8 Trigger inputs, 8 Relay outputs, 2 COM ports, and 4 Ethernet ports
  • Supports an IR learning function which captures the IR signal broadcast by your remote when you press a button for retransmission as a part of a macro
  • Supports 8 trigger inputs with a voltage range of 0~15V (triggers at 5V)
  • Supports baud rates up to 115,200bps
  • Supports 10/100Mbps Ethernet network connections
Brand:
Cypress Technology
Specifications
Product Type:
HDMI Matrix
Maximum Operating Temperature:
+40°C
Colour:
Black
Special Features:
Supports individual or global EDID management
IR Frequency:
30 to 50kHz, 30 to 60kHz
Power Rating:
16.5W
Chassis Material:
Metal
Applications:
Home Theatre with Smart Home Control, Demo Room Display, Lecture Hall/Ball Room, Public Commercial Display with Interactive Control, Security Monitoring with Control
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
1x4 by 4 HDMI 4K UHD Matrix with Control System Centre, 1xRemote Control (CR-138), 1xIR Learner Cable, 1xIR Extender Cable, 1xIR Blaster Cable
Performance
Resolution:
408i@60Hz-4K@60Hz (4:2:0)VGA@60Hz-WUXGA@60Hz (RB)
Video Bandwidth:
340MHz/10.2Gbps
Baud Rate:
115200bps
Inputs and Ports
Input Port Type:
4xHDMI, 1xIR Learner (3.5mm), 1xIR Extender (3.5mm), 8xTrigger (2-Pin Terminal Block)
Output Port Type:
4xHDMI, 8xIR Blaster (3.5mm), 8xRelay (2-Pin Terminal Block), 2xCOM (9-Pin D-sub), 4xLAN (RJ45)
Number of Ports:
4x4
Power
Current Rating:
6A
ESD Protection Rating:
±12kV (Air-Gap Discharge), ±8kV (Contact Discharge)
Dimensions
Length:
27.6cm
Width:
48.2cm
Height:
4.9cm
Weight:
3258g
Other
Voltage Rating:
5V DC
Voltage Rating:
5V DC
Standards Met:
CE/FCC/UL Certified
