CDPS-UA6H2HFS 4K UHD 6x2 HDMI Matrix with Audio De-embedding (HDCP 2.2 Compliant)
Please sign in so that we can notify you about a reply
The 6 by 2 HDMI Matrix with Fast Switching allows HDMI signal from any of its 6 sources to be routed to and displayed on any of its 2 connected HDMI displays simultaneously with 'View All' mode and Picture-in-Picture (PIP) supported. With fast switching technology the unit can greatly eliminate the time required by swapping or turning on/off the connected displays. It supports 4K2K, 3D, 30-bit Deep Color, Hi-Def audio and other features defined by HDMI specifications. The management of source/sink scenarios can be operated easily through on-panel buttons, IR remote control, RS-232 or Ethernet protocol.
Features
- HDMI (with 3D and 4K2K supported), HDCP 2.2 and DVI Compliant
- Displays any of 6 HD sources on 2 HDTV displays simultaneously with fast switching
- When in Preview mode, the system will be treated as Switcher (2 HDMI output same images at the same time)
- In Preview mode, it support View All (1 Main video source and 5 Sub video sources) and PIP (1 Main video source and 1 Sub video source)
- Supports 3D signal bypass
- Supports HDTV resolutions up to 4K2K:3840×2160@24/25/30Hz, 3840×2160@50/60 (YUV420), 4096×2160@24/25/30Hz & 4096×2160 @50/60Hz (YUV420)
- Supports Optical audio extraction and audio sampling rate output up to 192kHz
- Supports data rate up to 3Gbps and 'Deep Color' up to 1080p@60Hz, 36-bit
- Supports individual EDID or common EDID
- Supports passthrough of audio formats:LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, DTS 2/5.1CH, Dolby Digital Plus, Dolby TrueHD & DTS-HD Master Audio
- Supports 6 sets of matrix preset functions for input/output setting
- Input ports HDCP support Standard and Apple modes
- Compliant with DVI source (not support 'Deep Color' and YCbCr 422/444 color spaces)
- Supports OSD on output B under Preview mode
Brand:
Cypress Technology
Specifications
Product Type:
HDMI Matrix with Audio
Maximum Operating Temperature:
+40°C
Colour:
Black
Special Features:
Compliant with DVI source, 3DTV Pass-Through
IR Frequency:
30 to 50kHz
Power Rating:
11.44W
Chassis Material:
Metal
Applications:
Entertainment Rooms and Home Theatres, Show Room / Demo Room, Lecture Room/Hall Presentation, Show Room/Demo Room, Public Commercial Display
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
6 by 2 HDMI 4K UHD Matrix with HDCP2.2 and Fast Switching, Remote Control with Battery, Left & Right Rack Ears, 5V/2.6A DC Power Adaptor, IR Receiver Cable
Performance
Resolution:
480i to 1080pixels@50Hz/604K2K@24Hz/25/304K2K@50Hz/60(YUV 420)VGA and WUXGA(RB
Video Bandwidth:
300MHz/9Gbps
Baud Rate:
Up to 115200bps
Inputs and Ports
Input Port Type:

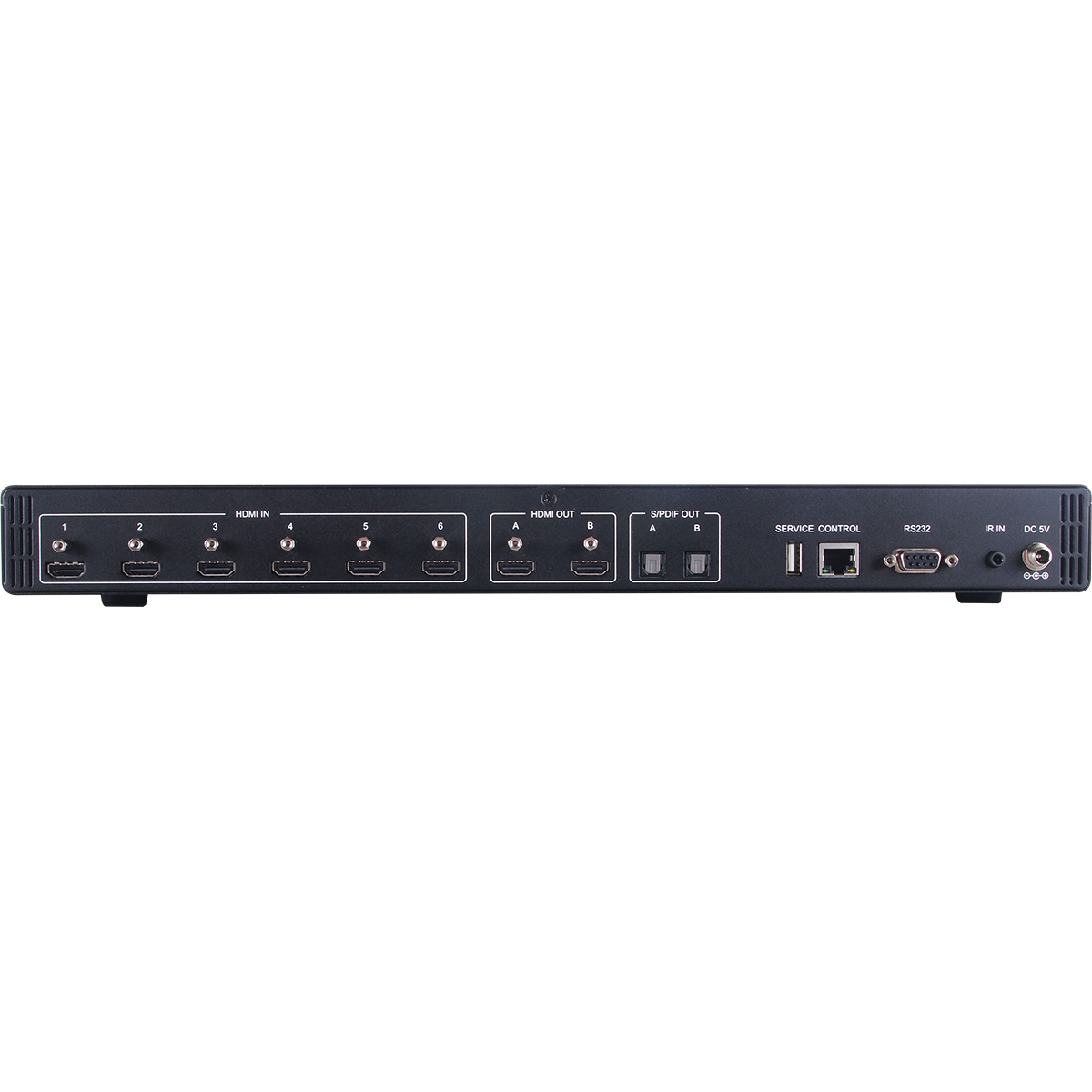

6xHDMI, 1xUSB(Service), 1xRS-232, 1xRJ45(Control), 1xIR
Output Port Type:
2xHDMI, 2xOptical (S/PDIF)
Number of Ports:
6x2
Power
Current Rating:
2.6A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Length:
27.4cm
Width:
48.2cm
Height:
4.9cm
Weight:
1892g
Other
Voltage Rating:
5V DC
Voltage Rating:
5V DC
Standards Met:
CE/FCC/UL Certified
