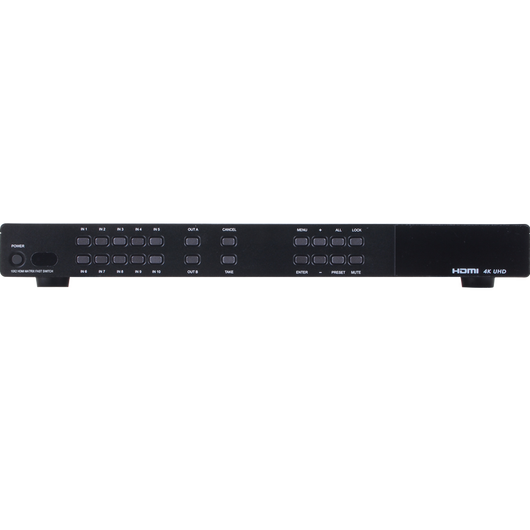

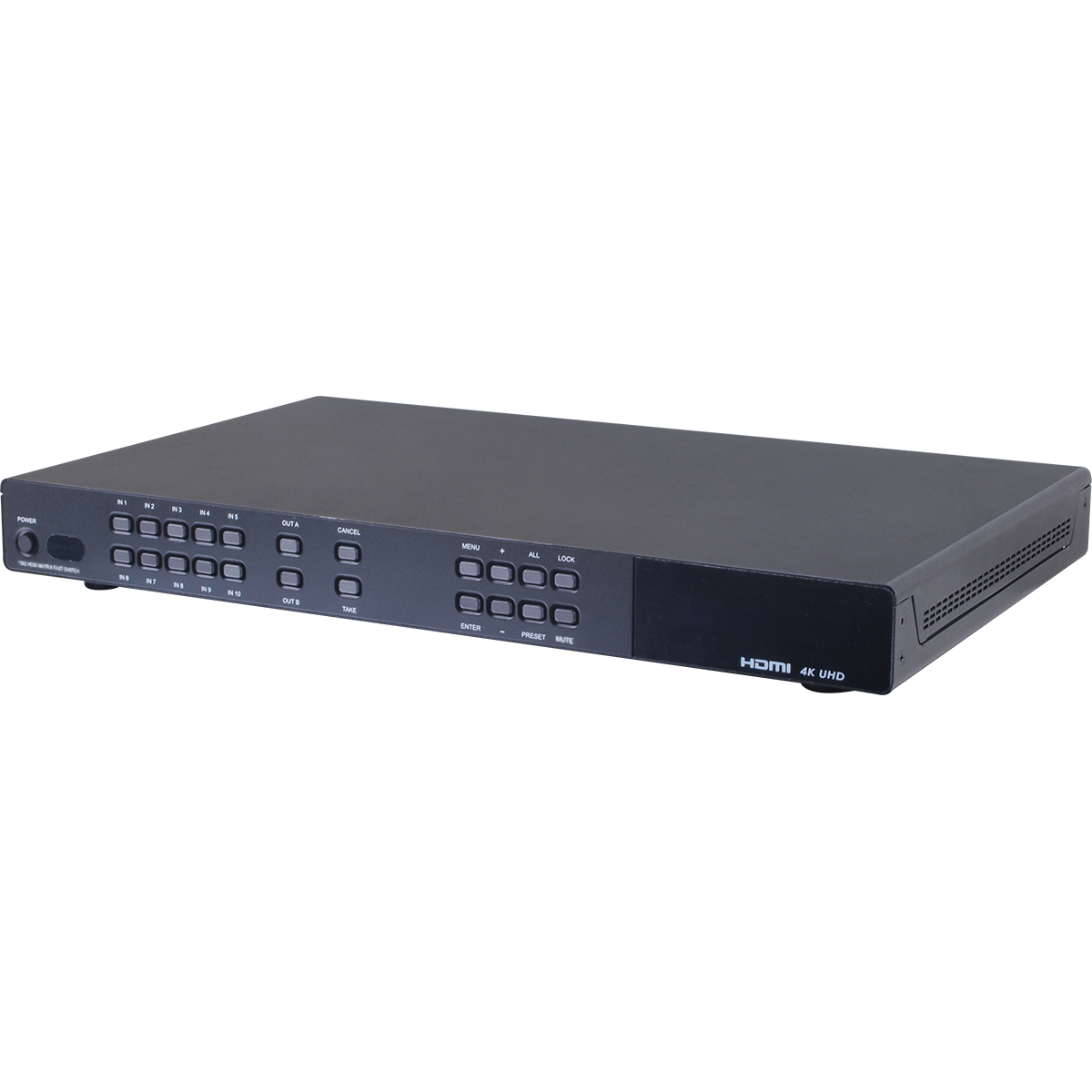

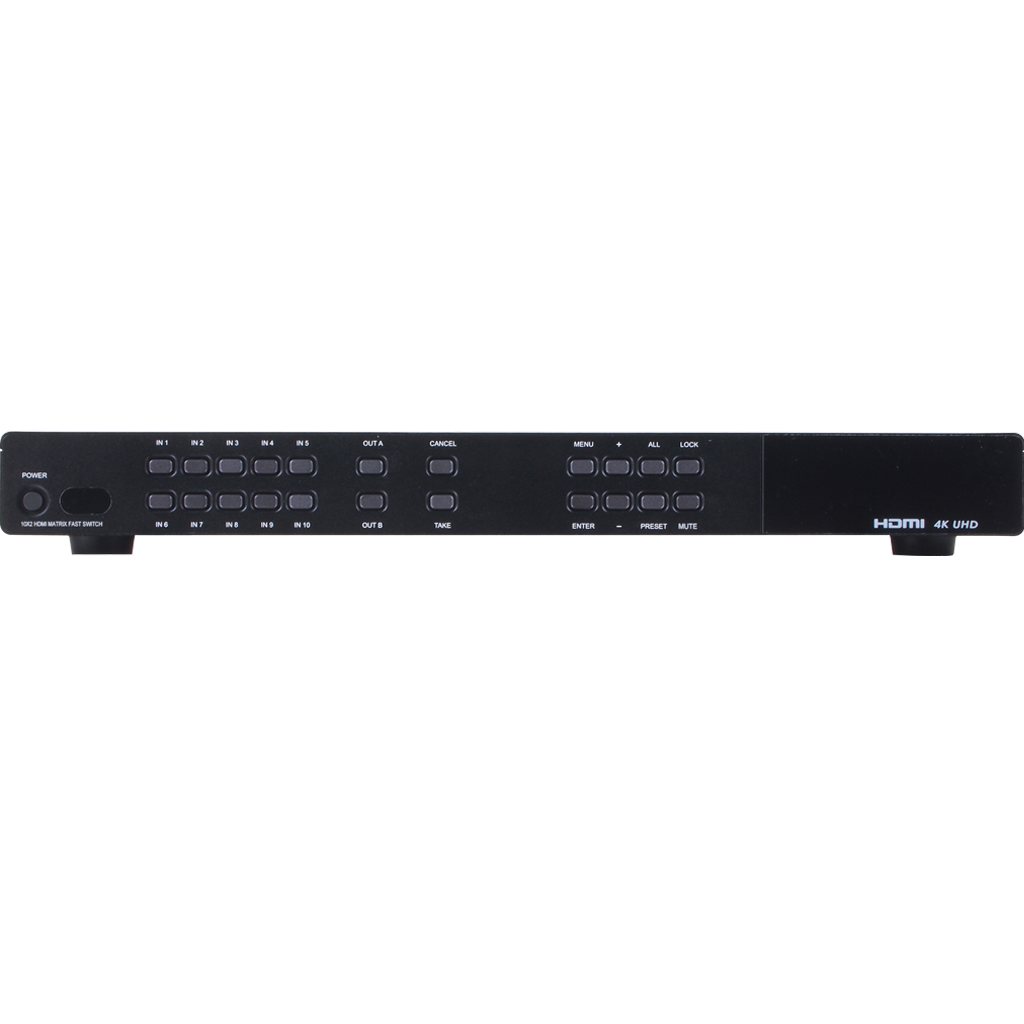

CDPS-U10H2HFS 4K UHD 10x2 HDMI Matrix
Please sign in so that we can notify you about a reply
This 10 by 2 HDMI UHD Matrix is an advanced solution for switching up to 10 HDMI inputs to two HDMI outputs. It provides high performance pass-through of video/audio and is capable of receiving and transmitting 300MHz/9Gbps bandwidth rate with no data loss. It’s Fast Switching technology can greatly reduce the time required to swap between inputs. Supporting the latest features you can be assured of reliable and high quality HDMI distribution.
Features
- Supports UHD resolutions up to 4K2K@24/25/30Hz & 4K2K YUV420@60Hz
- Supports HDTV resolutions up to 1080@60Hz, ‘Deep Color’ 36/30/24-bit and PC resolutions up to WUXGA@60Hz(RB)
- Supports 3D
- Supports pass-through of audio formats:LPCM 2/5.1/7.1CH, Dolby Digital 2~5.1CH, DTS 2~5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio
- Supports EDID selection function
- Supports control via IR, RS-232, Telnet and WebGUI controls
- Input port HDCP support Standard and Apple mode (The Apple mode selection to guarantees the use of Apple devices)
- Compliant with DVI source
Brand:
Cypress Technology
Product Type:
HDMI Matrix
Specifications
Maximum Operating Temperature:
+40°C
Colour:
Black
Special Features:
Compliant with DVI source, Supports 3D
Power Rating:
8.3W
Chassis Material:
Metal
Applications:
Showroom Display Control, Educational Demo, Installation Usage, Advertising Display
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
10 By 2 HDMI Matrix Fast Switch, 1xIR Extender, 1xRemote Control with Battery, 1x5V/2.6A Power Adaptor, 1xLeft & Right Ear Racks
Performance
Resolution:
HD:480i to 1080pixels@24Hz/50/60, 4K2K@24Hz/25/30& 4K2K@60Hz YUV_420
Video Bandwidth:
300MHz/9Gbps
Baud Rate:
115200bps
Inputs and Ports
Input Port Type:

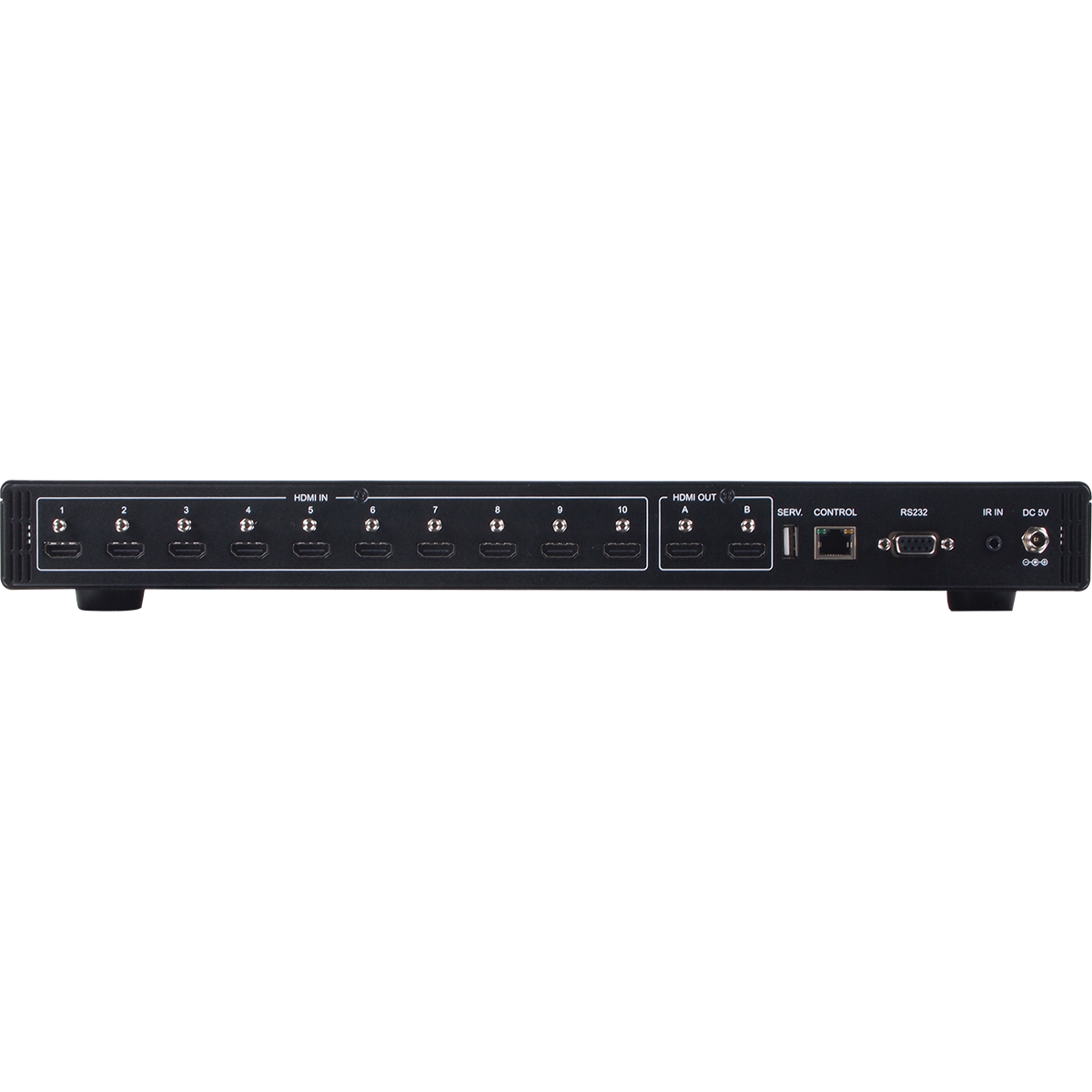

10xHDMI, 1xIR Extender, 1xRJ45(Control), 1xRS-232, 1xUSB (Firmware Update Only)
Output Port Type:
2xHDMI
Number of Ports:
10x2
Power
Current Rating:
2.6A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Length:
27.6cm
Width:
48.2cm
Height:
5.2cm
Weight:
2854g
Other
Voltage Rating:
5V DC
Voltage Rating:
5V DC
Standards Met:
CE/FCC/UL Certified
