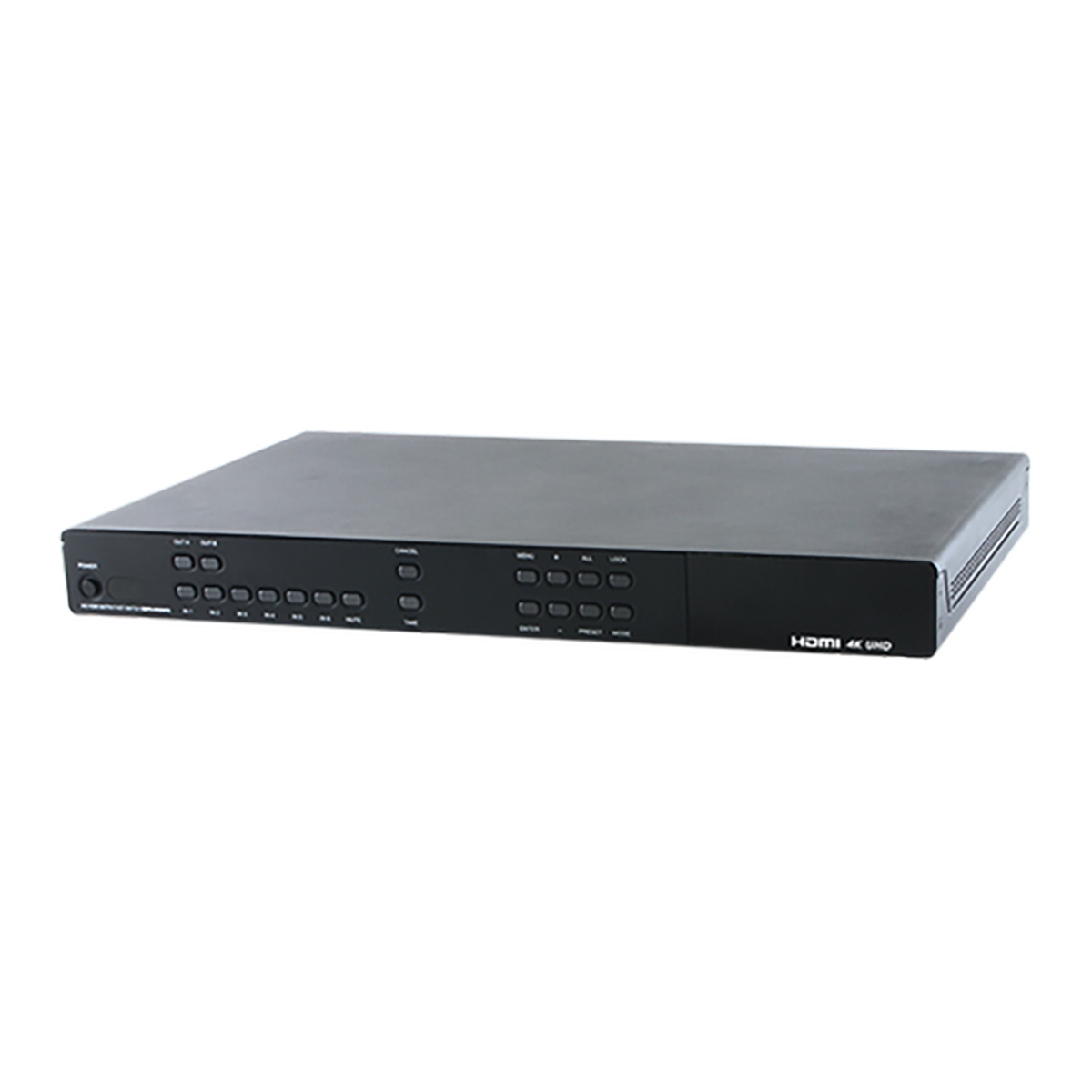

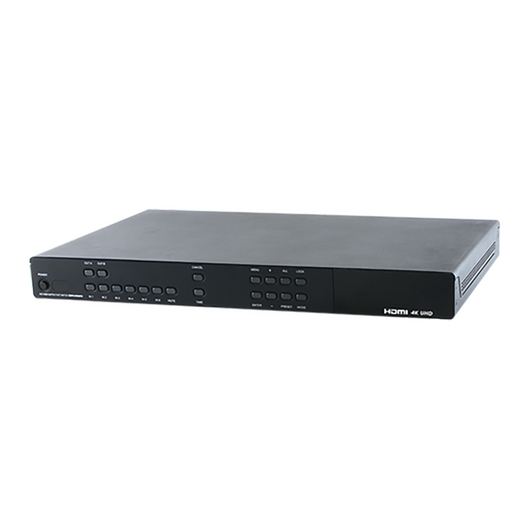

CDPS-6H2HFS 6x2 HDMI 4K UHD Fast-switching Matrix with Audio De-embedding
Please sign in so that we can notify you about a reply

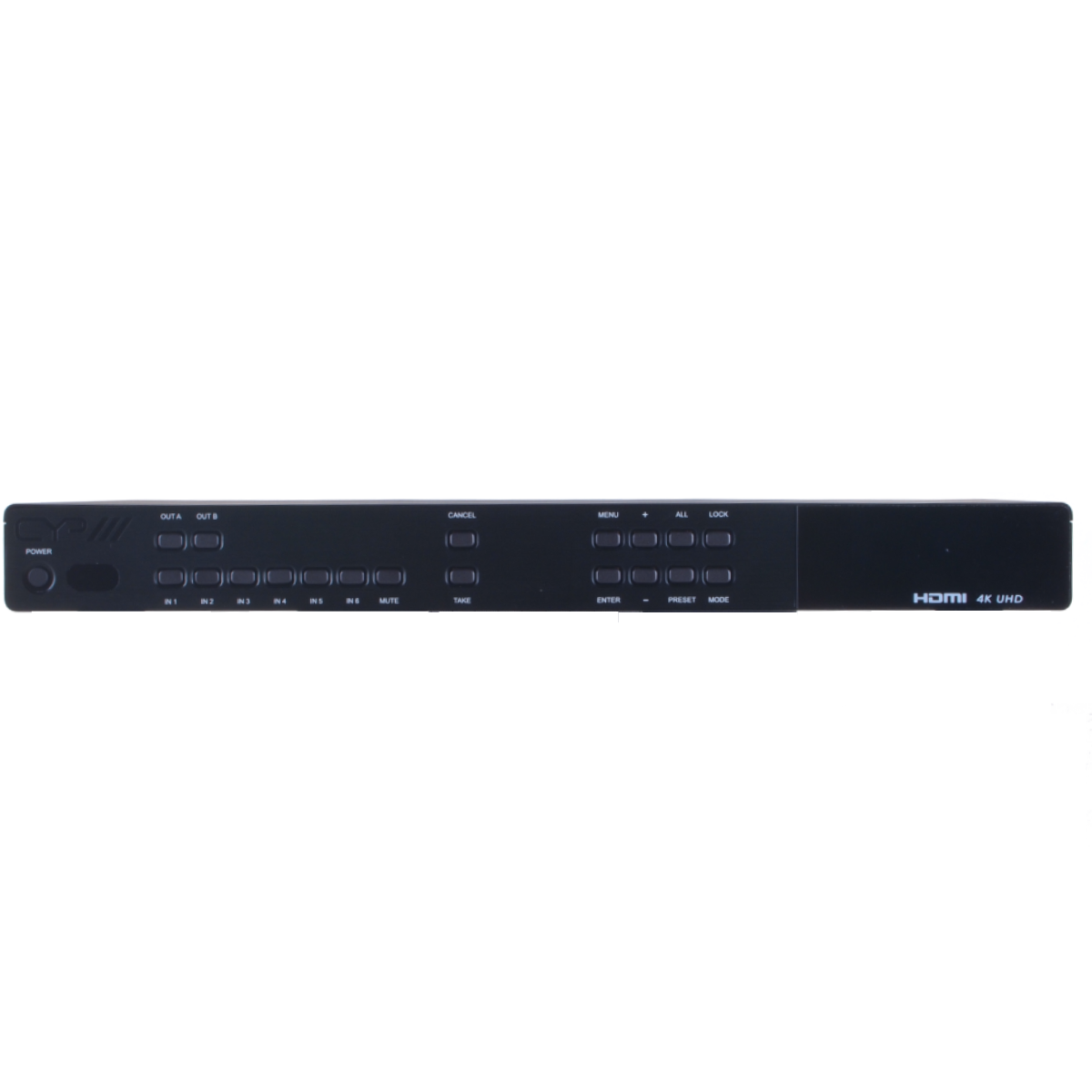

The 6 by 2 HDMI matrix which allows HDMI signal from any of its six sources to be routed to and displayed on any of its two connected HDMI displays simultaneously with View All Mode and Picture-inpicture (PIP) supported. With fast switching technology the device can greatly eliminate the time required by swapping or turning ON/OFF the connected displays. It supports 4Kx2K, 3D, 36-bit Deep Color, Hi-Def lossless audio and other features defined by HDMI specifications. The management of source/sink scenarios can be operated easily through on-panel buttons, IR remote control, RS-232 or Ethernet protocol.
Features
- HDMI with 3D & 4Kx2K supported, HDCP and DVI Compliant
- Support six HDMI inputs and two HDMI outputs
- Displays any of six (6) High-Definition sources on two (2) HDTV displays simultaneously with fast switch
- When in Preview mode, the system will be treated as Switcher (two HDMI output same images at the same time)
- In Preview mode, it support View All (1 Main video source and 5 Sub video sources) and PIP (1 Main video source and 1 Sub video source) but 3D and 4K2K sources inputs are not supported
- 3DTV Pass-Through
- Supports HDTV resolutions up to 4Kx2K (3840x2160@24/25/30 & 4096x2160@30Hz)
- Supports Optical audio extraction
- Supports Optical audio sampling rate output up to 192kHz
- Supports data rate from 300Mbps to 3Gbps and Deep Color up to 1080p 36-bit
- Supports individual EDID or common EDID
- Supports LPCM 2/5.1/7.1CH, Dolby Digital 2~5.1CH, DTS 2~5.1CH (Pass through), Dolby TrueHD and DTS-HD Master Audio
- Supports 6 sets of Matrix preset functions for input/output setting
- Input port HDCP support Standard and Apple mode and the Apple mode selection to guarantees the use of Apple devices
- Compliant with DVI source (Not support Deep color and Color space YCbCr 422/444)
- Supports OSD on output B under Preview Mode
Brand:
Cypress Technology
Specifications
Product Type:
HDMI Matrix with Audio
Maximum Operating Temperature:
+40°C
Colour:
Black
Special Features:
Compliant with DVI source, 3DTV Pass-Through
IR Frequency:
30 to 50kHz
Power Rating:
4.7W
Chassis Material:
Metal
Applications:
Home Theatre/Entertainment, Lecture Room/Hall Presentation, Show Room/Demo Room, Public Commercial Display, Information Board
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
6 by 2 HDMI 4Kx2K Matrix, Remote Control with Battery, Left & Right Rack Ears, 5V/2.6A DC Power Adaptor, IR Receiver Cable
Performance
Resolution:
480i to 1080pixels@50Hz/60Hz, 1080pixels@24Hz, 4Kx2K(3840x2160/4096x2160@30Hz)
Video Bandwidth:
300Mbps to 3Gbps
Baud Rate:
115200bps
Inputs and Ports
Input Port Type:

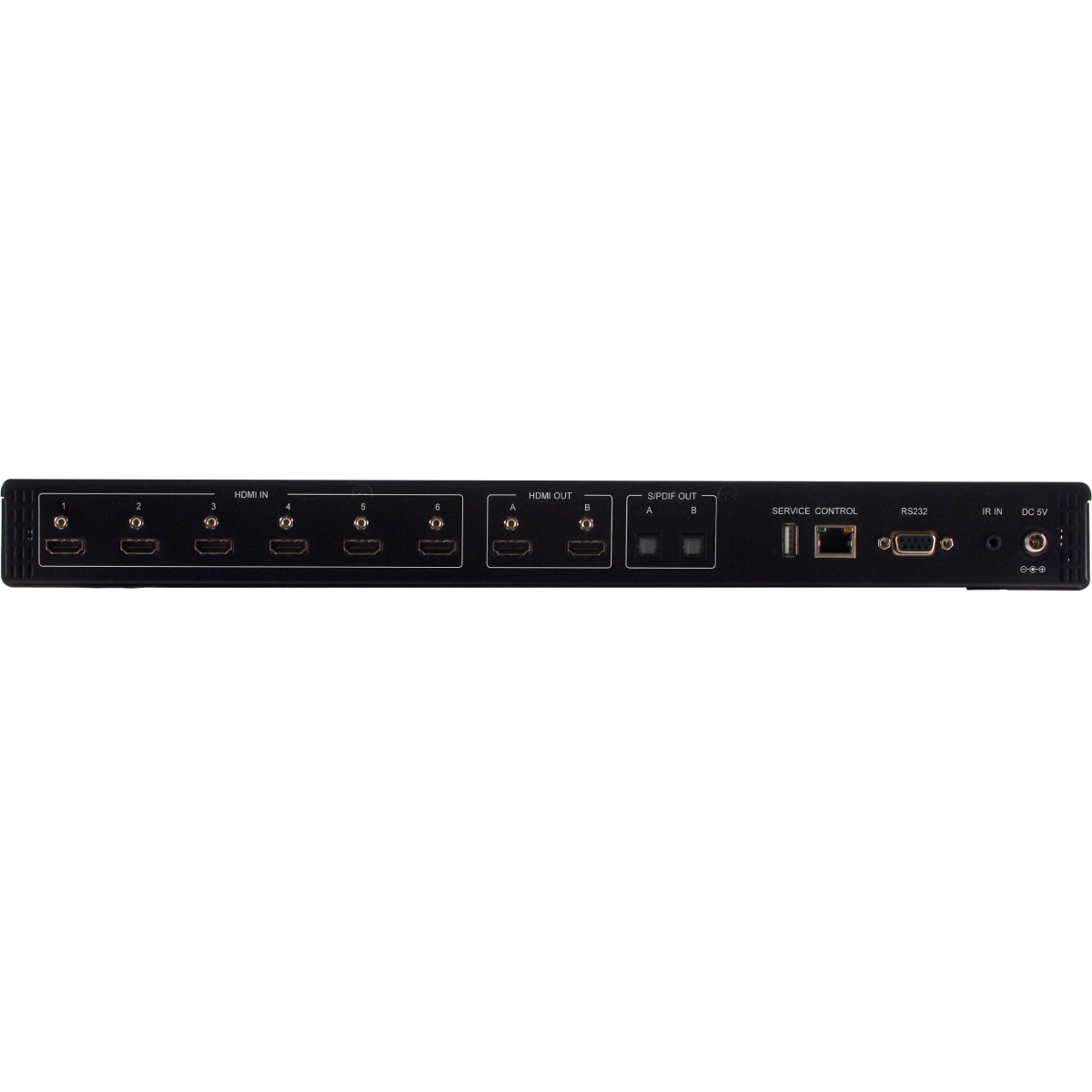

6xHDMI, 1xUSB (Service Only), 1xControl, 1xRS-232, 1xIR
Output Port Type:
2xHDMI, 2xOptical (S/PDIF)
Number of Ports:
6x2
Power
Current Rating:
2.6A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Length:
27.8cm
Width:
48.2cm
Height:
5.3cm
Weight:
3042g
Other
Voltage Rating:
5V DC
Voltage Rating:
5V DC
Standards Met:
CE/FCC/UL Certified
