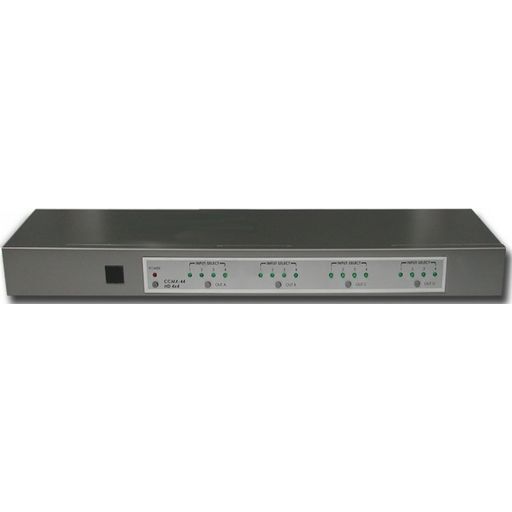

CCMX-44 4x4 Component Video/Audio Matrix Switcher
Please sign in so that we can notify you about a reply
Cypress CCMX-44 is a high performance Component + L/R Audio Matrix with remote control. It offers you maximum convenience in HDTV audio/video signal distribution when you have multiple sources and displays to connect together. Each of the four HDTV audio/video sources can be directed to any one of the four outputs, so four displays can show 4 identical or 4 different sources at the same time. CCMX-44 provides a maximum of 16 possible connection scenarios between sources and displays.
Features
- Supports interlace and progressive component video signals
- Switches video signals in high definition formats up to 1080p
- Supports switching of analog unbalanced stereo audio signals
- The device can be controlled directly from the front panel, IR remote control or via the RS-232 interface
Brand:
Cypress Technology
Product Type:
Audio Matrix
Specifications
Special Features:
Buffered Video and Audio Output, IR Remote Control
Chassis Material:
Metal
Performance
Resolution:
HDTV:480i, 576i, 480pixels, 576pixels, 1080i, and 1080pixels
Baud Rate:
9600bps
Inputs and Ports
Number of Ports:
4x4
Dimensions
Length:
12cm
Width:
43.6cm
Height:
4.4cm
Weight:
1.6kg
Other
Voltage Rating:
12V DC
Voltage Rating:
12V DC
