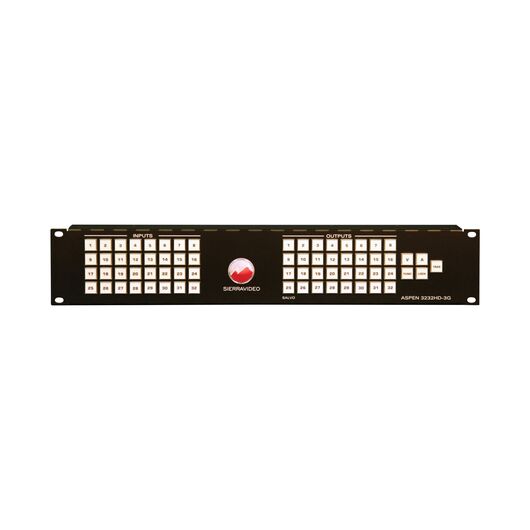

Aspen 3232HD-3G 3G HD-SDI Multi-Rate Router, 32x32 Ports, Black, 2RU with Local Control Panel
Please sign in so that we can notify you about a reply
Aspen 3232HD-3G is a 32x32 matrix switcher for SDI signals of up to 3G SDI. It is easy to operate and control through the network using the intuitive web pages and through RS-232 using a serial controller. Small and lightweight, it is capable of handling the most demanding applications.
Features- Max. Data Rate - 3Gbps
- HDTV Compatible
- Multi-Standard Operation - 3G-SDI - SMPTE 424M, HD-SDI - SMPTE 292M, SDI - SMPTE 259M-C/344M, DVB-ASI
- Advanced Equalization & re-clocking Technology - Rebuilds the digital signal to travel longer distances
- Supports ANC Data - Embedded audio, teletext, time code, etc
- Cable Equalization - Up to 200m for 1.5G HD signals, 155m for 3G signals
- Latency - less than one Frame
- Versatile Genlocking - Using an analog signal
- Optional Redundant Power Supply
Brand:
Kramer
Part number:
04-926501-00
Specifications
Product Type:
3G HD-SDI Router
Maximum Operating Temperature:
+40°C
Colour:
Black
Control Port Type:
RS-232, RS-422, Ethernet and Front Panel XY
Special Features:
HDTV Compatible
Power Rating:
18W
Minimum Operating Temperature:
0°C
Performance
Video Bandwidth:
3Gbps
Inputs and Ports
Input Port Type:
32x3G SDI:on 75 Ω BNC Connector
Output Port Type:
32x3G SDI:On 75Ω BNC Connector
Number of Ports:
32x32
Dimensions
Length:
5.08cm
Width:
48.2cm
Height:
8.2cm
Weight:
2.7kg
Other
Voltage Rating:
100 to 240V
