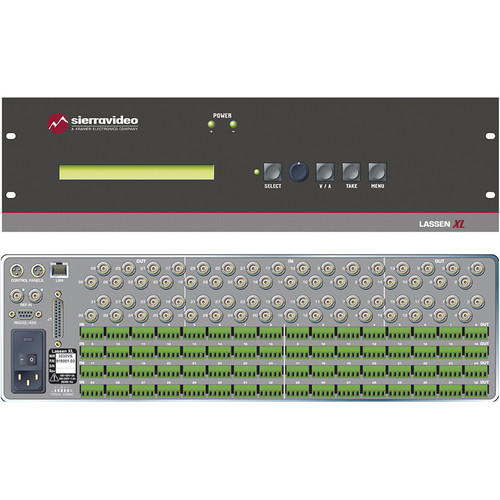

3232VSR-XL Sierra Video 32 x 32 Composite Video and Stereo Audio Routing Switcher with Redundant Power Supply
Please sign in so that we can notify you about a reply
The Lassen XL Series offers flexibility and adaptability to any application where saving space and costs are important. 3232VSR−XL is a 32x32 Composite Video & Analog Balanced Stereo Audio matrix switcher with redundant power, available in a compact 4RU frame. 3232VSR−XL also supports breakaway stereo audio switching whereby the Video, Audio Left and Audio Right can all be routed independently. It offers control via the front panel or remotely via RS−232 or Ethernet.
Brand:
Kramer
Part number:
04-918003-03
Specifications
Product Type:
Matrix Switcher
Maximum Operating Temperature:
+37.8°C
Colour:
Black
Special Features:
Qwik Adjust Knob Rotary Control Interface-Intuitive User Interface with Front Panel LCD Display
Power Rating:
<150W
Humidity:
10 to 90%
Minimum Operating Temperature:
-1.1°C
Performance
Video Bandwidth:
>100MHz (-3dB)
Baud Rate:
9600bps, 38400bps, 115200bps
Total Harmonic Distortion:
<0.025% (20Hz to 20kHz@+4dBu) (Unity Gain)
Crosstalk Level:
Composite Video:-80dB@1MHz, -47dB@100MHz, Audio:<-80dB@1kHz (Unity Gain), <-60dB@10kHz (Unity Gain)
Inputs and Ports
Number of Ports:
32x32
Dimensions
Length:
46.9cm
Width:
48.3cm
Height:
17.8cm
Weight:
16.3kg
Other
Voltage Rating:
90 to 240V AC
