3232HDS-XL Lassen XL 32 x 32 HD-SDI and Stereo Audio Matrix Switcher
Please sign in so that we can notify you about a reply

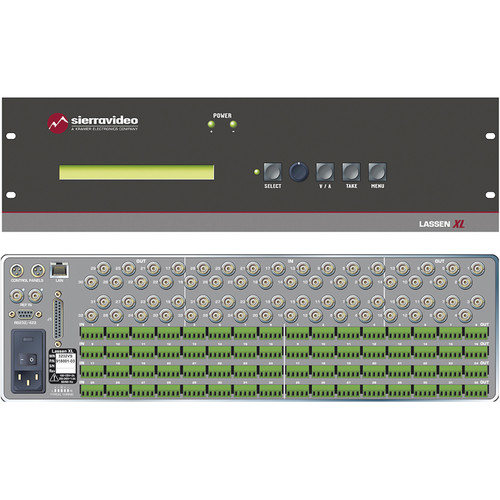

The Lassen HD XL Series offers flexibility and adaptability to any application where saving space and costs are important. 3232HDS−XL is a 32x32 HD−SDI (1.5G) & analog balanced stereo audio matrix switcher, available in a compact 3RU frame. 3232HDS−XL also supports breakaway stereo audio switching whereby the digital video, audio left and audio right can all be routed independently. It offers control via the front panel or remotely via RS−232 or Ethernet.
Brand:
Kramer
Part number:
04-918014-03
Specifications
Product Type:
HD-SDI & Audio Matrix
Maximum Operating Temperature:
+37.8°C
Colour:
Black
Special Features:
Qwik Adjust Knob Rotary Control Interface-Intuitive User Interface with Front Panel LCD Display
Power Rating:
<150W
Humidity:
10 to 90%
Minimum Operating Temperature:
-1.1°C
Performance
Video Bandwidth:
1.5Gbps
Baud Rate:
9600bps, 38400bps, 115200bps
Total Harmonic Distortion:
<0.025% (20Hz to 20kHz@+4dBu) (Unity Gain)
Crosstalk Level:
Audio:<-80dB@1kHz (Unity Gain), <-60dB@10kHz (Unity Gain)
Inputs and Ports
Number of Ports:
32x32
Dimensions
Length:
46.9cm
Width:
48.3cm
Height:
13.3cm
Weight:
16.3kg
Other
Voltage Rating:
90 to 240V AC
