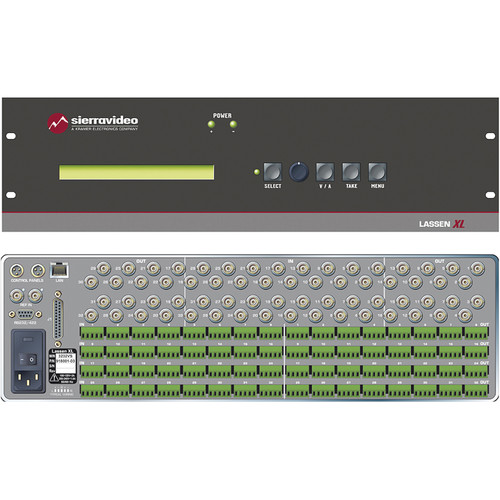

3232HD-XL Sierra Video 3232HD-XL Lassen XL 32 x 32 HD-SDI Matrix Switcher
Please sign in so that we can notify you about a reply
The Lassen HD XL Series offers flexibility and adaptability to any application where saving space and costs are important. 3232HD−XL is a 32x32 HD−SDI (1.5G) matrix switcher, available in a compact 3RU frame. It offers control via the front panel or remotely via RS−232 or Ethernet.
Brand:
Kramer
Part number:
04-918014-13
Product Type:
HD-SDI Matrix
Specifications
Maximum Operating Temperature:
+37.8°C
Colour:
Black
Special Features:
Qwik Adjust Knob Rotary Control Interface-Intuitive User Interface with Front Panel LCD Display
Power Rating:
<150W
Humidity:
10 to 90%
Minimum Operating Temperature:
-1.1°C
Performance
Video Bandwidth:
1.5Gbps
Baud Rate:
9600bps, 38400bps, 115200bps
Inputs and Ports
Number of Ports:
32x32
Dimensions
Length:
46.9cm
Width:
48.3cm
Height:
13.3cm
Weight:
15.9kg
Other
Voltage Rating:
90 to 240V AC
