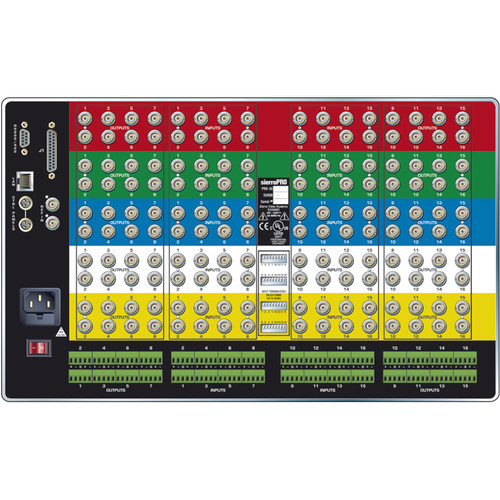

1616V5S-XL Sierra Video Pro XL Series 16x16 RGBHV Video Matrix Switcher with Balanced Audio (6RU)
Please sign in so that we can notify you about a reply
The Pro XL Series 16x16 RGBHV Matrix Switcher from Sierra Video is a high-bandwidth routing switcher for RGBHV, RGB/YUV, S-Video (Y/C), and composite video signals, and for analog audio signals. This is a 16-input, 16-output unit with a 5-channel design (3 video channels, 2 sync channels) that operates at 450 MHz. It supports Matrix Mapping Universal Breakaway Switching that provides independent switching of every level of every R, G, B, H, V, left, and right audio input on the routing switcher. You can switch a single level or any combination of levels. You can switch a single level or any combination of levels. For example, you can input a composite video signal on the R level of input one and an S-Video (Y/C) signal on the G and B levels of input one, then switch only the composite video signal on the R level, only the S-Video Y and C signals on the G and B levels, or switch all three levels together.
Features
- Local front-panel control with 80-character LCD readout
- RS-232, RS-485, RS-422, and Ethernet ports
- Supports optional remote control panels via RS-485
- Supports TCP/IP Protocol via rear panel RJ-45 connector
- Web browser control
- TyLinx Pro Router Control Software
- Meets UL & CE standards
