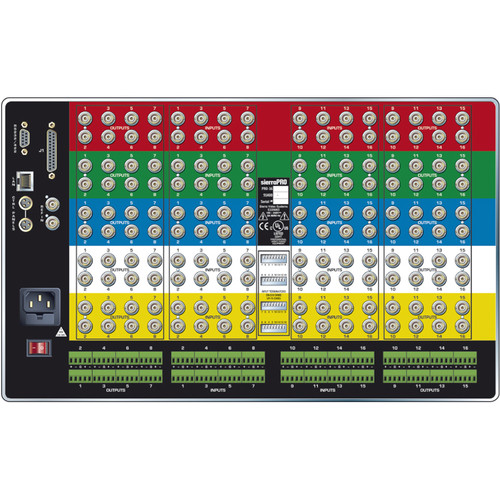

1616V5R-XL Sierra Video Pro XL Series 16x16 RGBHV Matrix Switcher with Redundant Power Supply (6RU)
Please sign in so that we can notify you about a reply
The Pro XL Series 16x16 RGBHV Matrix Switcher from Sierra Video is a high-bandwidth routing switcher for RGBHV, RGB/YUV, S-Video (Y/C), and composite video signals, and for analog audio signals. This is a 16-input, 16-output unit with a 5-channel design (3 video channels, 2 sync channels) that operates at 450 MHz. It supports Matrix Mapping Universal Breakaway Switching that provides independent switching of every level of every R, G, B, H, V, left, and right audio input on the routing switcher. You can switch a single level or any combination of levels. You can switch a single level or any combination of levels. For example, you can input a composite video signal on the R level of input one and an S-Video (Y/C) signal on the G and B levels of input one, then switch only the composite video signal on the R level, only the S-Video Y and C signals on the G and B levels, or switch all three levels together.
Features
- Local front-panel control with 80-character LCD readout
- RS-232, RS-485, RS-422, and Ethernet ports
- Supports optional remote control panels via RS-485
- Supports TCP/IP Protocol via rear panel RJ-45 connector
- Web browser control
- TyLinx Pro Router Control Software
- Meets UL & CE standards
Brand:
Kramer
Part number:
04-914001-R54
Product Type:
RGBHV Matrix
Specifications
Maximum Operating Temperature:
+38°C
Colour:
Black
Special Features:
The Routing Switcher Can Capture and Report the Input Sync Rates for Each Input Signal
Power Rating:
<150W
Humidity:
10 to 90%
Minimum Operating Temperature:
-1°C
Performance
Video Bandwidth:
450MHz@-3dB
Crosstalk Level:
-80dB@1MHz, -47dB@100MHz, -30dB@150MHz
Inputs and Ports
Number of Ports:
16x16
Dimensions
Length:
46.9cm
Width:
48.3cm
Height:
26.7cm
Other
Voltage Rating:
90 to 240V AC
