VGAA-OUT2-F16/STANDALONE 2-Output VGA with Analog Audio Card (F-16)
Please sign in so that we can notify you about a reply

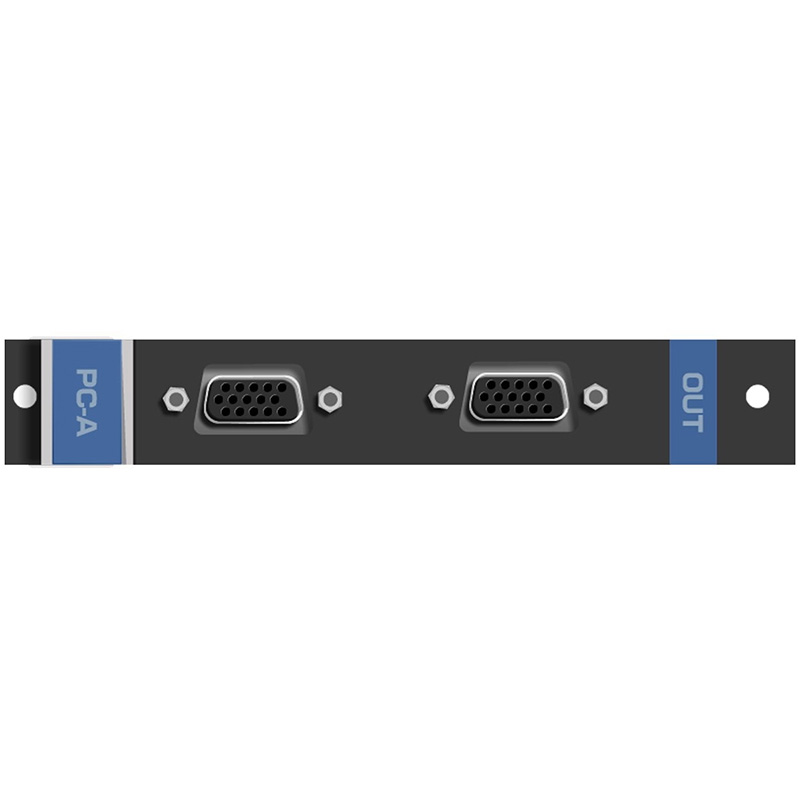

VGAA−OUT2−F16/F34 is a two−channel VGA with analog audio output card for the VS−1616 or VS−34FD Series Modular Multi−Format Digital Matrix Switchers. The VGAA−OUT2−F16/F34 outputs two VGA with analog audio signals from the chassis. Audio output is accessed by connecting the supplied Kramer VGA with audio cables to each VGA port.
Features
- Max. Bandwidth - 450MHz.
- HDTV Compatible.
- Analog Audio Over Breakaway Connector.
Brand:
Kramer
Part number:
20-70006298
Product Type:
VGA with Audio Input Card
Specifications
Maximum Operating Temperature:
+40°C
Special Features:
HDTV Compatible, Analog Audio Over Breakaway Connector
Power Rating:
5.5W
For Use With:
VS-1616 or VS-34FD Series Modular MultiFormat Digital Matrix Switcher
Applications:
Professional Display Systems, Multimedia and Presentation, Rental and Staging
Humidity:
10 to 90%
Minimum Operating Temperature:
0°C
Includes:
2 C-GF/GMAF-30 Cables
Performance
Bandwidth:
450MHz
Maximum Size Range:
10m
Inputs and Ports
Port Type:
2 Unbalanced Analog Audio on 3.5mm Mini Jack
Dimensions
Length:
13cm
Width:
25.2cm
Height:
2cm
Weight:
0.3kg
Other
Standards Met:
CE, Complies with Appropriate Requirements of RoHs and WEEE
