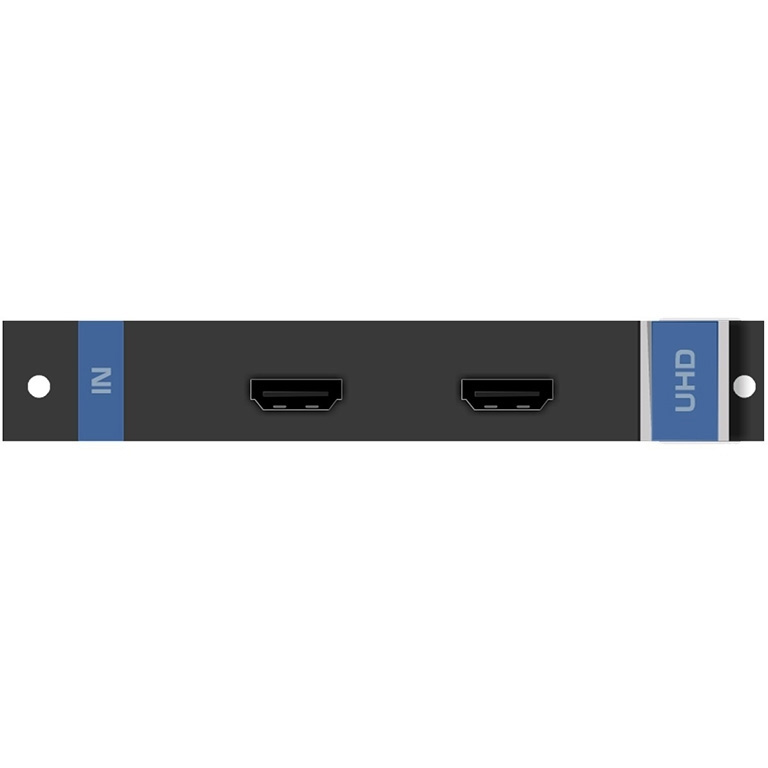

UHD-IN2-F16/STANDALONE 2-Input UHD HDMI Card (F-16)
Please sign in so that we can notify you about a reply
UHD-IN2-F16 is a two-channel 4K@60Hz (4:2:0) HDMI input card for the VS-1616 Series Modular Multi-Format Digital Matrix Switchers. The UHD-IN2-F16 inputs two HDMI signals into the chassis.
Features
- Max. Data Rate - 8.91Gbps (2.97Gbps per graphics channel).
- Max. Resolution - 4K@60Hz (4:2:0).
- HDMI Support - 3D, Deep Color, x.v.Color™, Dolby® TrueHD, Dolby Digital Plus, DTS-HD®, and 7.1 multi-channel audio.
- ARC Support.
- HDTV Compatible.
- HDCP Compliant.
- EDID Capture - Copies and stores the EDID from a display device.
- 3D Pass-Through.
- Kramer Equalization and re-Klocking Technology.
Brand:
Kramer
Part number:
20-70007998
Product Type:
HDMI Input Card
Specifications
Maximum Operating Temperature:
+40°C
Special Features:
ARC Support, HDTV Compatible, EDID Capture-Copies and Stores the EDID From a Display Device, 3D Pass-Through
Power Rating:
3.7W
For Use With:
VS-1616 Series Modular MultiFormat Digital Matrix Switcher
Applications:
Professional Display Systems Requiring Video Signal Routing, Broadcast/Presentation and Production Facilities/as Well as Monitoring in Large Duplication Systems, Rental/Staging
Humidity:
10 to 90%
Minimum Operating Temperature:
0°C
Performance
Resolution:
4K@60Hz (4:2:0)
Bandwidth:
8.91Gbps
Maximum Size Range:
10m-4K60 (4:2:0) or 4K30 (4:4:4), 15m-1080p 12bits (Deep Color)
Inputs and Ports
Port Type:
2xHDMI
Dimensions
Length:
13cm
Width:
19cm
Height:
2cm
Weight:
0.1kg
Other
Standards Met:
CE, Complies with Appropriate Requirements of RoHs and WEEE
