SDIA-IN2-F16/STANDALONE 2-Input 3G HD-SDI Card (F-16)
Please sign in so that we can notify you about a reply

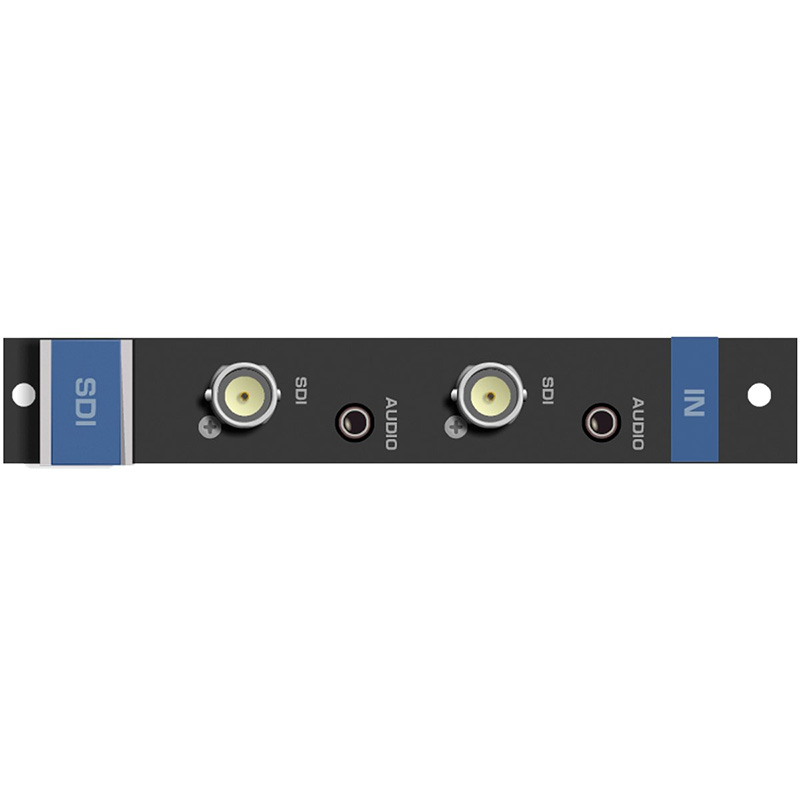

SDIA−IN2−F16/F34 is a two−channel SDI input card with optional analog audio embedding for the VS−1616 or VS−34FD Series Modular Multi−Format Digital Matrix Switchers. SDIA−IN2−F16/F34 inputs two SDI with optional unbalanced stereo audio signals into the chassis and converts each SDI signal separately into HDMI format for routing within the matrix switcher.
Features
- Max. Data Rate - 3Gbps.
- Multi-Standard Operation - SDI, HD-SDI, 3G HD-SDI.
- Stereo Audio Embedding.
Brand:
Kramer
Part number:
20-70009998
Product Type:
SDI with Audio Input Card
Specifications
Maximum Operating Temperature:
+40°C
Special Features:
Stereo Audio Embedding
Power Rating:
6W
For Use With:
VS-1616 or VS-34FD Series Modular MultiFormat Digital Matrix Switcher
Applications:
Video Broadcast Studios, Non-Linear Editing Suites, Video Production Studios, Boardrooms and Classroom
Humidity:
10 to 90%
Minimum Operating Temperature:
0°C
Performance
Bandwidth:
3Gbps
Maximum Size Range:
300m-SD, 200m-HD 1080pixels, 90m-3G 1080pixels
Inputs and Ports
Port Type:
2 Unbalanced Analog Audio on 3.5mm Mini Jack Connector
Dimensions
Length:
13cm
Width:
25.2cm
Height:
2cm
Weight:
0.3kg
Other
Standards Met:
CE, Complies with Appropriate Requirements of RoHs and WEEE
