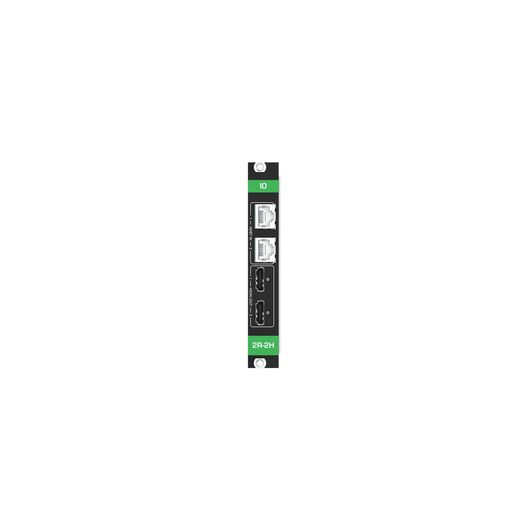

MC3-2R-2H/STANDALONE Combo 4K60 4:4:4 scaling HDMI Output & HDBT 3.0 Input Card
Please sign in so that we can notify you about a reply
MC3-2R-2H is a high-performance two-port HDBaseT 3.0 input and two-port HDMI output card which is part of the compatible modular matrices multi-signal cards family. MC3-2R-2H can flexibly occupy any of the matrix card slots. Its input signals are independently switched by the modular matrix to any of the matrix output ports, and any matrix input signals are independently switched to its scaling output ports.
Features- High Resolution Audio-Visual Experience
- Valuable Fast Switching Experience
- High-Performance Scaling PresentationHigh Performance Standard Extender
- Future-proof, Standard Extender
- HDMI Signal ExtensionMulti-channel Audio Transmission
- I-EDIDPro™ Kramer Intelligent EDID Processing
- Ethernet Extension
- Flexible USB 2.0 Extension
- Bidirectional RS-232 Extension
- Bidirectional Infrared Extension
- Easy Installation - Supports PoE
Brand:
Kramer
Part number:
20-70012698
Specifications
Product Type:
HDMI/HDBaseT Input/Output Card
Special Features:
High Resolution, Fast Switching, High–Performance, Multi–channel Audio Transmission
Card Type:
I/O Card
Performance
Resolution:
4096x2160pixels@60Hz
Bandwidth:
18Gbps
Supported Video Type:
4Kpixels@60Hz
Maximum Size Range:
Up to 100m
Inputs and Ports
Port Type:
2xHDBT, 2xHDMI
Card Slot Type:
2xHDBaseT, 2xHDMI
Dimensions
Length:
13cm
Width:
25.5cm
Height:
2cm
Weight:
0.4kg
Shipping Weight:
0.5kg
