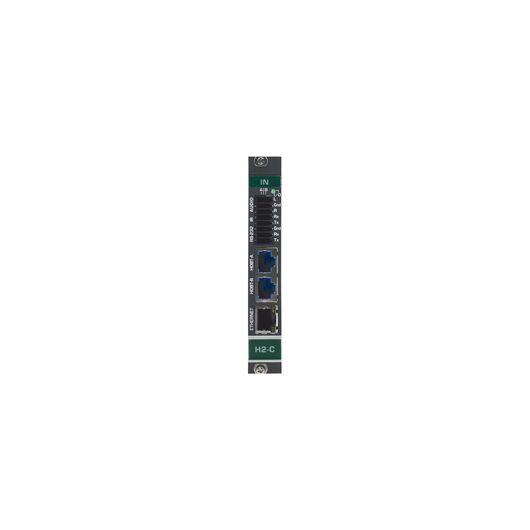

DTAxrC2-IN2-F34/STANDALONE 2-Channel 4K HDR HDMI over Extended Reach HDBaseT Input Card with Analog Audio
Please sign in so that we can notify you about a reply
DTAxrC2-IN2-F34 is a 2-channel, 4K@60Hz (4:4:4), CSC, HDMI, analog audio, bidirectional RS-232, Ethernet, & IR over HDBaseT twisted pair receiver card for compatible Kramer Modular Multi-Format Digital Matrix Switchers. DTAxrC2-IN2-F34 inputs two extended-reach HDBaseT signals with selectable embedded/de-embedded analog audio, bidirectional RS-232, Ethernet, and IR from the line to the chassis.
Features
- Max. Data Rate — 18Gbps (6Gbps per graphics channel), 10Gbps CSC over CAT cable.
- Max. Resolution — 4K@60Hz (4:4:4).
- Analog Audio Embedding/De-embedding - On the same jack
- HDBaseT Technology — HDTV compatible, HDCP 2.2/1.4 compliant.
- System Range — Up to 100m at normal mode (4K), up to 130m (430ft) at normal mode (2K), up to 180m (590ft) ultra mode (1080p @60Hz @24bpp). Note: When using Kramer HDBaseT cables.
- Ethernet Extension — Ethernet interface data flows in both directions, allowing extension of up to 100Mbps Ethernet connectivity for LAN communication and device control.
- Bidirectional RS–232 Extension — Serial interface data flows in both directions, allowing data transmission and device control.
- Bidirectional Infrared Extension — IR interface data flows in both directions, allowing remote control of peripheral devices located at either end of the extended line.
- 3D Pass–Through.
- PoE (Power over Ethernet) Enabled — Provides PoE power to a connected device with the Kramer PoE Power Supply Add–On PS–4812 (sold separately).
Brand:
Kramer
Part number:
20-70009498
Specifications
Product Type:
HDMI Over HDBaseT Input Card
Maximum Operating Temperature:
+40°C
Special Features:
HDBaseT Technology, HDTV compatible, HDCP 2.2/1.4 Compliant
Power Rating:
21.5W
For Use With:
Modular MultiFormat Digital Matrix Switcher
Humidity:
10 to 90%
Minimum Operating Temperature:
0°C
Performance
Resolution:
4K@60Hz (4:4:4)
Bandwidth:
18Gbps (6Gbps per Graphic Channel), 10Gbps CSC Over CAT cable
Maximum Size Range:
Up to 100m@Normal Mode (4K), Up to 130m@Normal Mode (2k), Up to 180m Ultra Mode (1080pixels@60Hz@24bpp)
Inputs and Ports
Port Type:
2 HDBaseT : On RJ45 Connector, 2 Unbalanced Audio : On a 6-Pin Terminal Block Connector
Card Slot Type:
HDMI
Dimensions
Length:
13cm
Width:
25cm
Height:
2cm
Weight:
0.3kg
Other
Standards Met:
CE, Complies with Appropriate Requirements of RoHs and WEEE
