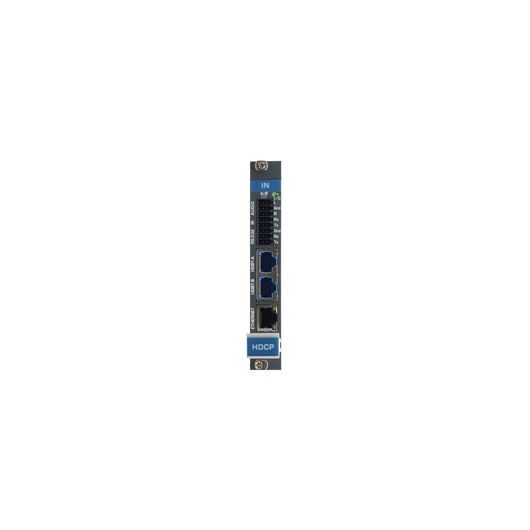

DTAxr-IN2-F16/STANDALONE 2-Channel 4K60 4:2:0 HDMI over Extended Reach HDBaseT Input Card
Please sign in so that we can notify you about a reply
DTAxr−IN2−F16 is a 2−channel 4K60 4:2:0 HDMI, analog audio, bidirectional RS−232, Ethernet, & IR over HDBaseT twisted pair receiver card for the VS−1616 Series Modular Multi−Format Digital Matrix Switchers. DTAxr−IN2−F16 inputs two extended reach HDBaseT signals with selectable embedded/de–embedded analog audio, bidirectional RS−232, Ethernet, and IR from the line to the chassis.
Features
- Max. Data Rate - 10.2Gbps (3.4Gbps per graphics channel)
- Max. Resolution - 4K@60Hz (4:2:0)
- Analog Audio Embedding/De-embedding - On the same jack
- HDBaseT Technology - HDTV compatible, HDCP Compliant
- System Range - Up to 100m at normal mode (4K), up to 130m (430ft) at normal mode (2K), up to 180m (590ft) ultra mode (1080p @60Hz @24bpp). Note:When using Kramer HDBaseT cables
- Ethernet Extension - Ethernet interface data flows in both directions, allowing extension of up to 100Mbps Ethernet connectivity for LAN communication and device control
- Bidirectional RS-232 Extension - Serial interface data flows in both directions, allowing data transmission and device control
- Bidirectional Infrared Extension - IR interface data flows in both directions, allowing remote control of peripheral devices located at either end of the extended line
- 3D Pass-Through
Brand:
Kramer
Part number:
20-70008798
Product Type:
HDBaseT Input Card
Specifications
Maximum Operating Temperature:
+40°C
Special Features:
HDBaseT Technology, HDTV Compatible, HDCP Compliant
Power Rating:
17W
For Use With:
VS-1616 Series Modular MultiFormat Digital Matrix Switcher
Applications:
Professional Display Systems Requiring Video Signal Routing, Broadcast/Presentation and Production Facilities/as Well as Monitoring in Large Duplication Systems, Rental/Staging
Humidity:
10 to 90%
Minimum Operating Temperature:
0°C
Performance
Resolution:
4K@60Hz (4:2:0)
Bandwidth:
10.2Gbps (3.4Gbps per Graphic Channel)
Maximum Size Range:
Up to 100m@Normal Mode (4K), Up to 130m@Normal Mode (2k), Up to 180m Ultra Mode (1080pixels@60Hz@24bpp)
Inputs and Ports
Port Type:
2 HDBaseT TP on RJ45 Connector, 2 Unbalanced Audio on a 16 Pin Terminal Block
Card Slot Type:
HDMI
Dimensions
Length:
13cm
Width:
19cm
Height:
2cm
Weight:
0.3kg
Other
Standards Met:
CE, Complies with Appropriate Requirements of RoHs and WEEE
