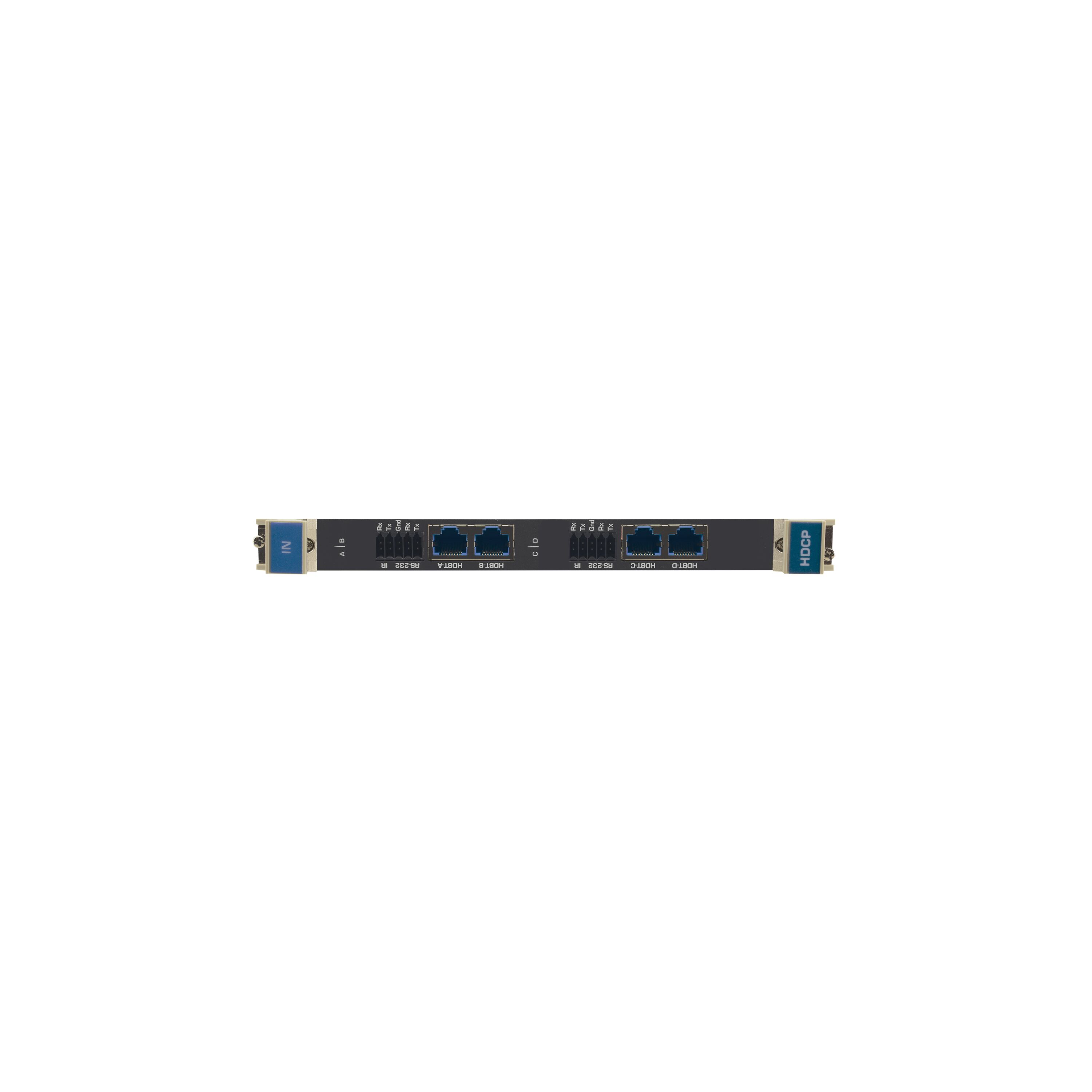

DT-IN4-F32/STANDALONE 4-Channel 4K60 4:2:0 HDMI over HDBaseT Input Card (70m)
Please sign in so that we can notify you about a reply
DT−IN4−F32 is a four−channel 4K@60Hz (4:2:0), long reach, HDBaseT input card for the VS−3232 Series Modular Multi−Format Digital Matrix Switchers. DT−IN4−F32 inputs four long reach HDBaseT signals with bidirectional RS−232 and IR from the line to the chassis.
Features
- Max. Data Rate - 10.2 Gbps (3.4Gbps per graphic channel).
- System Range - 40m (130ft) - 4K60 4:2:0 or 4K30 4:4:4;70m (230ft) - 1080p 12bit (deep color). Note:When using Kramer HDBaseT cables.
- HDTV Compatible.
- HDCP Compliant.
- 3D Pass-Through.
- Bidirectional RS-232 and IR per Port.
- Kramer Equalization and re-Klocking Technology.
Brand:
Kramer
Part number:
20-70008398
Specifications
Product Type:
HDBaseT Input Card
Maximum Operating Temperature:
+40°C
Special Features:
HDTV Compatible, HDCP Compliant, 3D Pass-Through
Power Rating:
10W
For Use With:
VS-3232 Series Modular MultiFormat Digital Matrix Switcher
Applications:
Professional Display Systems Requiring Video Signal Routing, Broadcast/Presentation and Production Facilities/as Well as Monitoring in Large Duplication Systems, Rental/Staging
Humidity:
10 to 90%
Minimum Operating Temperature:
0°C
Includes:
Screw Driver
Performance
Bandwidth:
10.2Gbps (3.4Gbps per Graphic Channel)
Maximum Size Range:
40m-4K@60Hz (4:2:0) or 4K@30Hz (4:4:4), 70m-1080p 12bits (Deep Color)
Inputs and Ports
Port Type:
4xHDBaseT on RJ45 Connector
Dimensions
Length:
19cm
Width:
21.6cm
Height:
2cm
Weight:
0.4kg
Other
Standards Met:
CE, Complies with Appropriate Requirements of RoHs and WEEE
