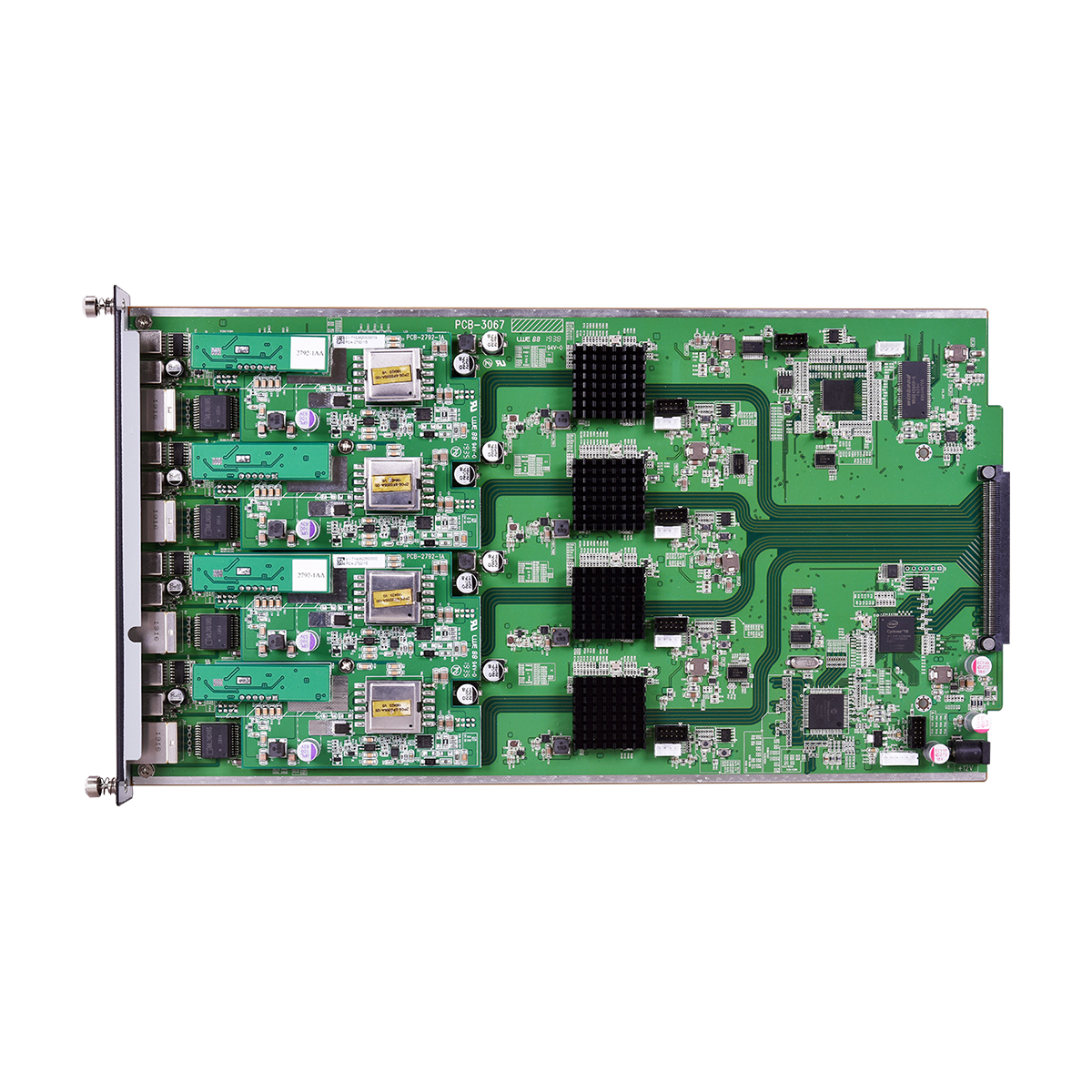

COUT-V4CV 4-Port HDBT with AVLC Output Card
Please sign in so that we can notify you about a reply
This 4-port HDBT output Card provides 4 independent high-bandwidth HDBT outputs, paired with IR input and analog stereo outputs. Any available input on the connected modular matrix can be freely routed to each output of the card. Despite HDBaseT’s 10.2Gbps bandwidth limitation, each port is able to supports up to and including 4K@60Hz (4:4:4, 8-bit) as well as 10/12-bit sources with HDR to be received and processed by the use of AVLC (Adaptive Visually Lossless Compression) when connected to a compatible AVLC Transmitter.
Features

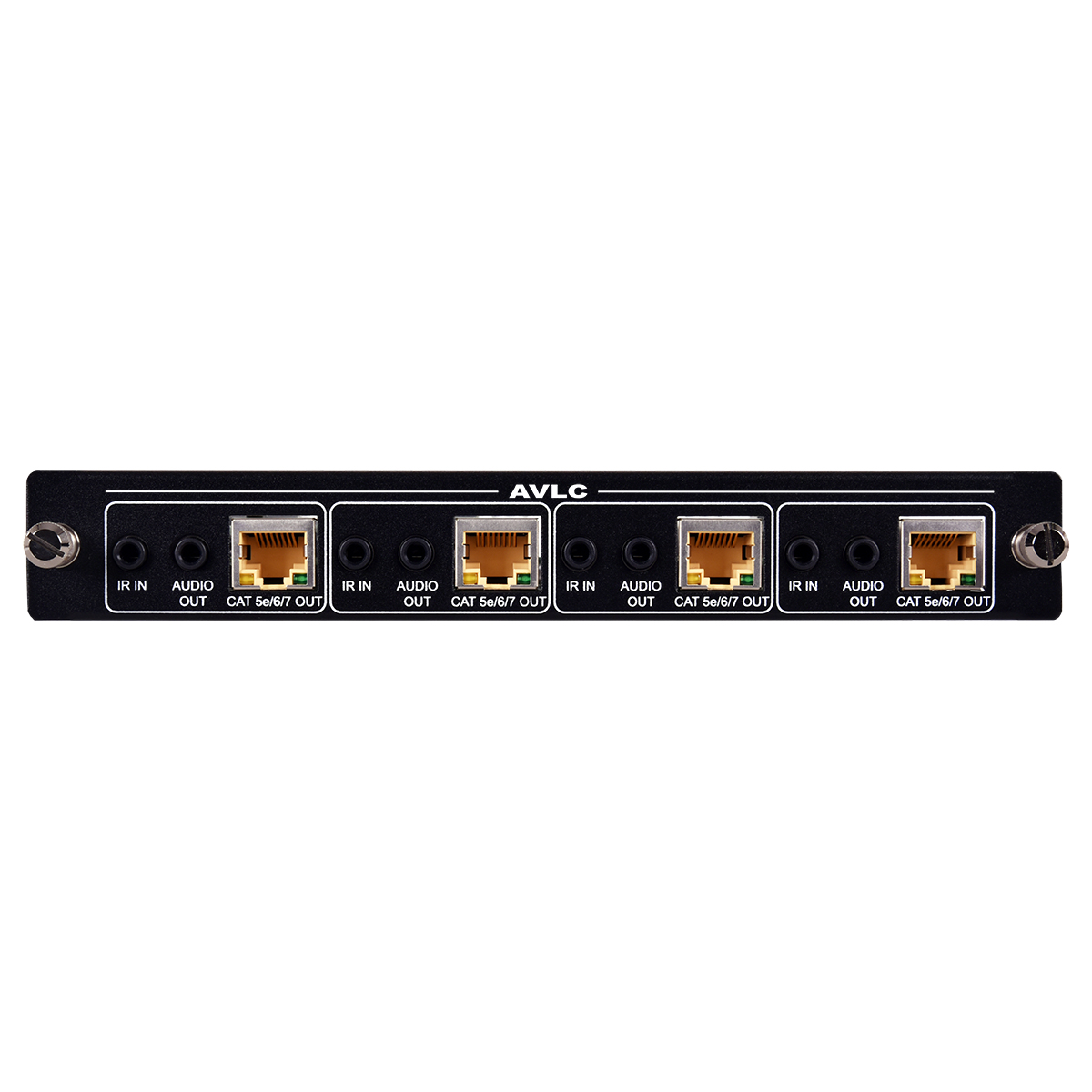

- 4 HDBT output ports paired with IR output and analog stereo output ports
- Supports 4K HDR at 24Hz (4:4:4) and 60Hz (YUV 4:2:0) with up to 12- bit color
- Supports 12-bit Deep Color up to 1080p@60Hz
- Supports pass-through of audio formats including LPCM 2.0/5.1/7.1 Bitstream, and HD Bitstream
- This card’s features are controlled by the modular matrix
Brand:
Cypress Technology
Product Type:
HDBaseT Output Card
Specifications
Special Features:
This Card’s Features are Controlled by the Modular Matrix
Performance
Resolution:
4096x2160pixels
Bandwidth:
10.2Gbps
Maximum Size Range:
1080p 12bits (Deep Colour)
Inputs and Ports
Port Type:
4xHDBT (RJ45), 4xStereo Analog Audio (3.5mm)
Dimensions
Length:
34.4cm
Width:
19.75cm
Height:
2.9cm
Weight:
458g
