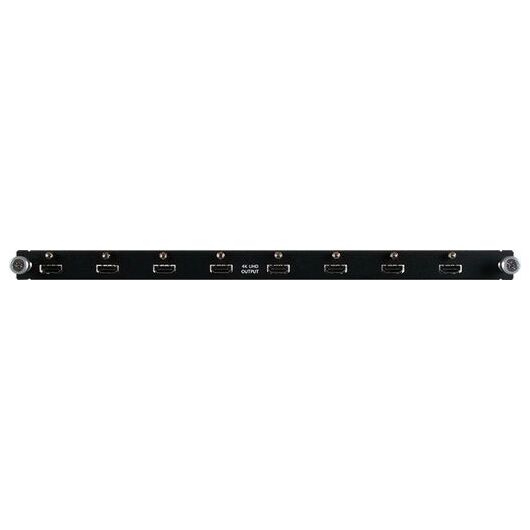

COUT-8HS4K 4K UHD 8-Port HDMI Output Module
Please sign in so that we can notify you about a reply
This output module enables the connection of up to 8 HDMI displays to the modular matrix. Resolutions up to 4K@30Hz or WUXGA@60Hz (RB), and 3D signals are supported along with high-definition audio transmission including LPCM 7.1CH, Dolby Digital Plus, Dolby True HD, and DTS Master Audio. HDMI inputs support cable lengths of up to 15m@1080p/8-bit, 10m@1080p/12-bit or 5m@4K.
- Video Bandwidth: 25~340MHz
- Output Ports: 8 HDMI
- Supported PC Resolutions: VGA to WUXGA@60(RB)
- Supported HD Resolutions: 480i to 1080p and 4K2K@30Hz
- Supported Audio transmission: LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio
- Supported Audio sampling rate: 32~192kHz
Brand:
Cypress Technology
Specifications
Product Type:
HDMI Output Card
Applications:
Hydrid Modularised Matrix
Performance
EDID (Yes/No):
Yes
HDCP Support (Yes/No):
Yes
HD Audio (Yes/No):
Yes
Deep Colour (Yes/No):
Yes
3D (Yes/No):
Yes
Inputs and Ports
Output Type:
8xHDMI
