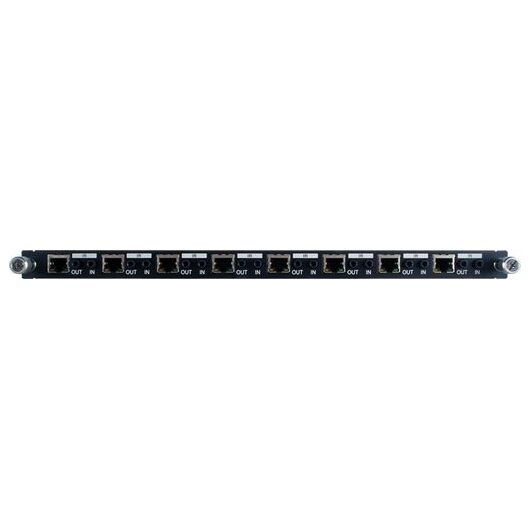

COUT-8CV-4PLAY 8-Port HDBaseT Output Module
Please sign in so that we can notify you about a reply
This output module comprises 8 HDBaseT connections which allows the transmission of HD sources, bi-directional IR and RS-232 signals, and PoC (Power over Cable) over single runs of CAT5e/6/7 cables up to 100m@1080p (8-bit/12-bit). Resolutions up to 1080p@60Hz or WUXGA@60Hz (RB), and 3D signals are supported along with LPCM 7.1CH, Dolby Digital Plus, Dolby True HD, and DTS Master Audio.
- Video Bandwidth: 300MHz/10.2Gbps
- HDBaseT technology: PoC and IR/RS-232 functions
- Output Ports: 8 CAT5e/6/7, 8 IR Extender,and 8 IR Blaster
- Supported PC Resolutions: VGA to WUXGA
- Supported HD Resolutions: 480i to 1080p
- IR Frequency: 30~50Hz
- Supported Audio transmission: LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio
- Supported Audio sampling rate: 32~192kHz
Brand:
Cypress Technology
Product Type:
HDBaseT Output Card
Specifications
Applications:
Hydrid Modularised Matrix
Performance
EDID (Yes/No):
Yes
HDCP Support (Yes/No):
Yes
HD Audio (Yes/No):
Yes
Deep Colour (Yes/No):
Yes
3D (Yes/No):
Yes
Inputs and Ports
Output Type:
8xRJ45
