COUT-4C 4-Port HDBT Output Card
Please sign in so that we can notify you about a reply

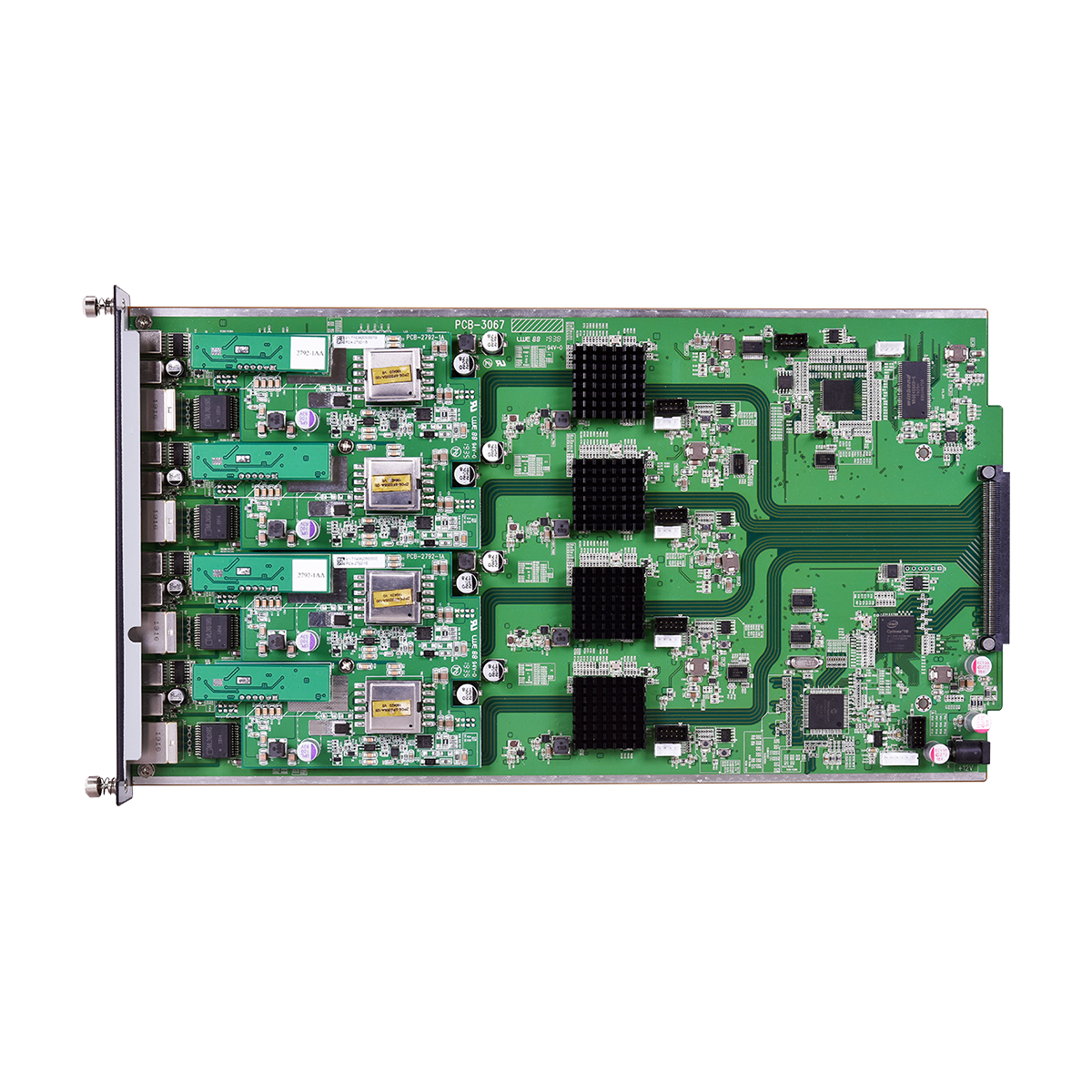

This 4-port HDBT output Card provides 4 independent high-bandwidth HDBT outputs, paired with IR input and analog stereo outputs. Any available input on the connected modular matrix can be freely routed to each output of the card.
Features

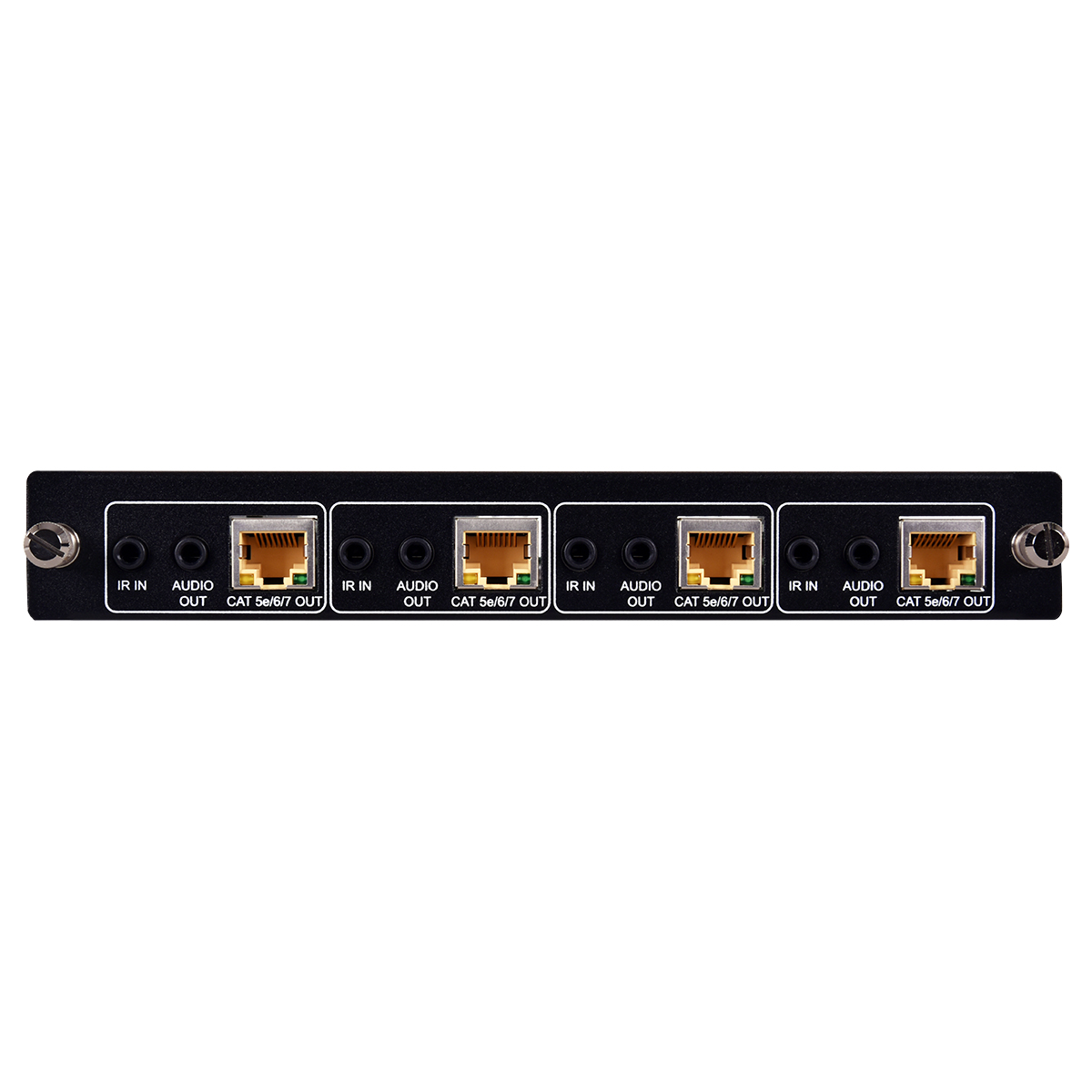

- 4 HDBT output ports paired with IR output and analog stereo output ports
- Supports 4K HDR at 24Hz (4:4:4) and 60Hz (YUV 4:2:0) with up to 12- bit color
- Supports 12-bit Deep Color up to 1080p@60Hz
- Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream, and HD Bitstream
- This card’s features are controlled by the modular matrix
Brand:
Cypress Technology
Product Type:
HDBaseT Output Card
Specifications
Special Features:
This Card’s Features are Controlled by the Modular Matrix
Performance
Resolution:
4096x2160pixels
Maximum Size Range:
1080p 12bits (Deep Colour)
Inputs and Ports
Port Type:
4xHDBT (RJ45), 4xStereo Analog Audio (3.5mm)
Dimensions
Length:
34.4cm
Width:
19.75cm
Height:
2.9cm
Weight:
458g
