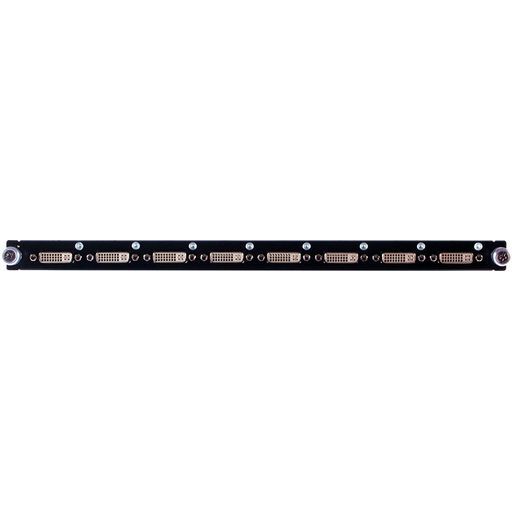

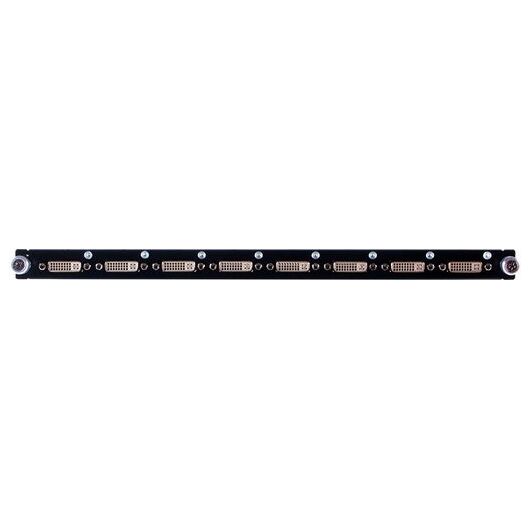

CIN-8DS 8-Port DVI Input Module
Please sign in so that we can notify you about a reply
The 32 by 32 / 16 by 16 / 8 by 8 Modularised Matrix provides a professional way to route multiple sources to multiple displays over different formats, currently it supports inputs of HDMI, DVI-D, VGA, HDBaseT™ and outputs of HDMI, DVI-D and HDBaseT™ of different specs. This grand matrix, with its modularisation design, provides ultimate flexibility by allowing the use of any combination of HDMI, DVI-D, and HDBaseT output cards in any of its four output slots.
- Video Bandwidth: 225MHz/6.75Gbps
- Input Ports: 8 DVI
- Supported PC Resolutions: VGA to WUXGA@60(RB)
- Supported HD Resolutions: 480i to 1080p
- Supported Audio transmission: LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio
- Supported Audio sampling rate: 32~192kHz
Brand:
Cypress Technology
Product Type:
Input/Output Module
Specifications
Applications:
Hydrid Modularised Matrix
Performance
EDID (Yes/No):
Yes
HDCP Support (Yes/No):
Yes
HD Audio (Yes/No):
Yes
Deep Colour (Yes/No):
Yes
3D (Yes/No):
Yes
Inputs and Ports
Input Type:
8xDVI
