CIN-4C 4-Port HDBT Input Card
Please sign in so that we can notify you about a reply

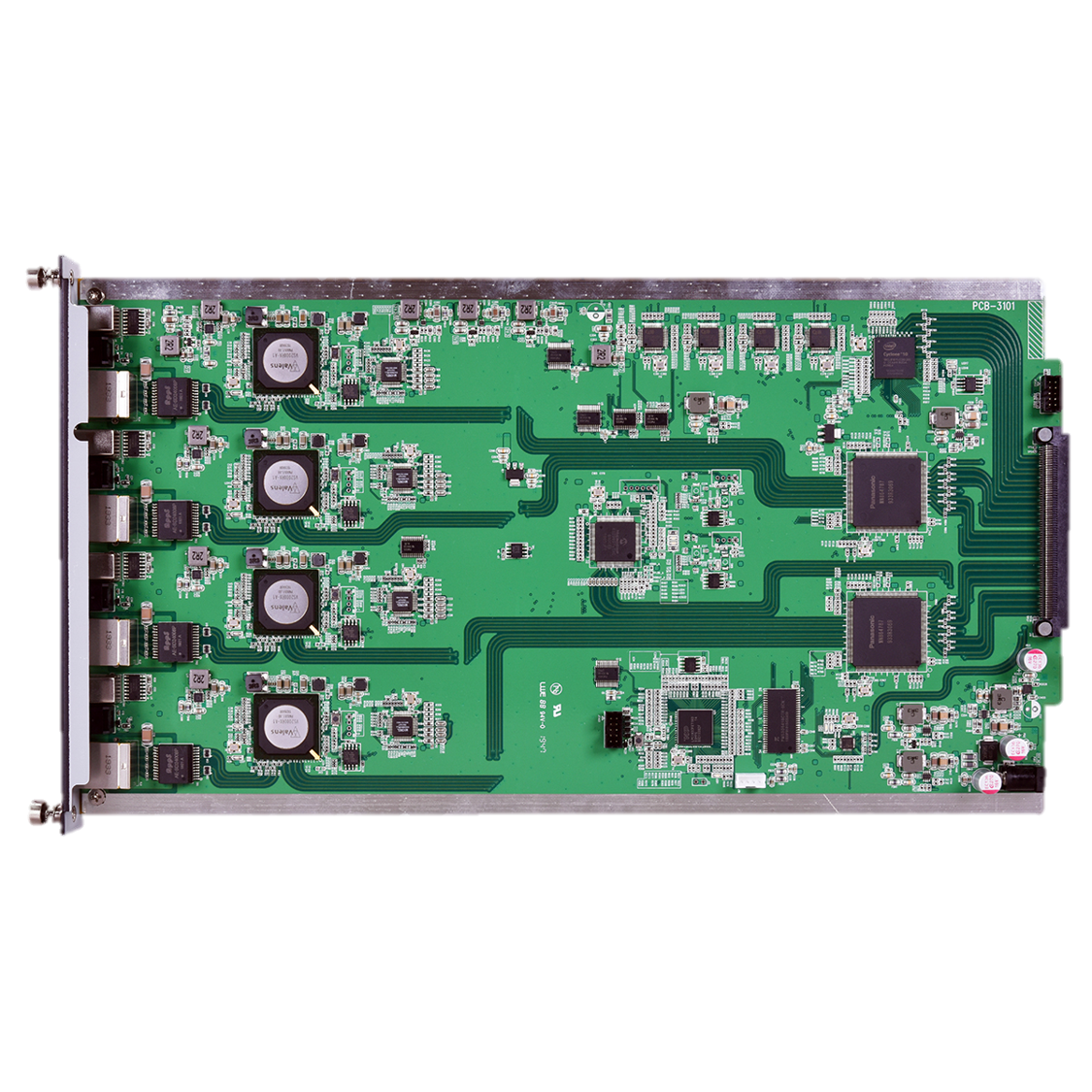

This 4-port HDBT Input Card provides 4 independent high-bandwidth HDBT inputs, paired with IR input and optical audio inputs which supports the Optical Audio Return (OAR) channel feature, found on compatible HDBaseT receivers, allowing optical audio sources connected to those receivers to be sent back to the matrix unit. Each grouping can be freely routed to any available output on the connected modular matrix.
Features

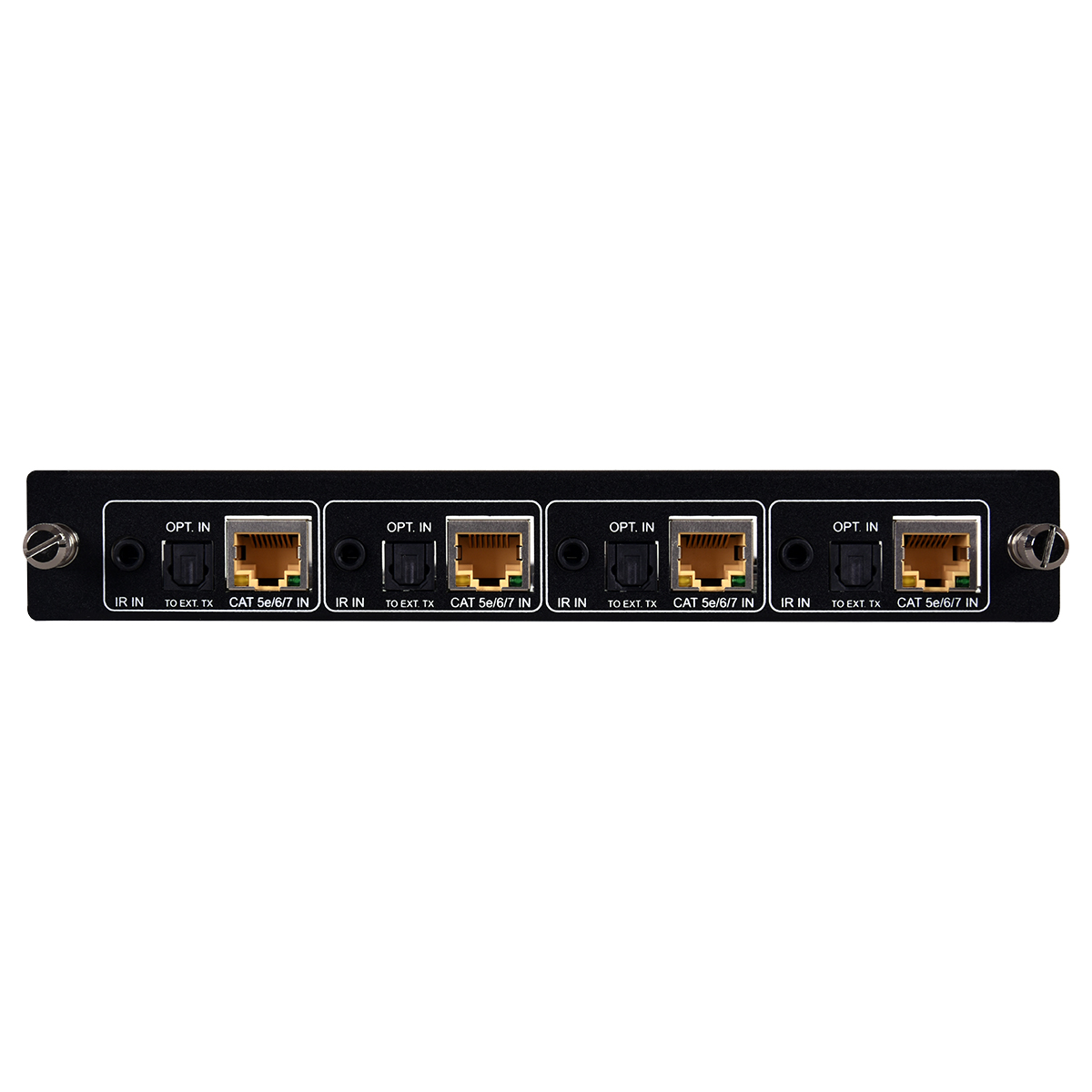

- 4 HDBT input ports paired with IR input and optical audio input ports
- Supports 4K HDR at 24Hz (4:4:4) and 60Hz (YUV 4:2:0) with up to 12- bit color
- Supports 12-bit Deep Color up to 1080p@60Hz
- Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream, and HD Bitstream
- Supports Optical Audio Return
- This card’s features are controlled by the modular matrix
Brand:
Cypress Technology
Specifications
Product Type:
HDBaseT Input Card
Special Features:
This Card’s Features are Controlled by the Modular Matrix
Performance
Resolution:
4096x2160pixels
Maximum Size Range:
1080p 12bits (Deep Colour)
Inputs and Ports
Port Type:
4xHDBT (RJ45), 4xOptical Audio
Dimensions
Length:
34.4cm
Width:
19.75cm
Height:
2.9cm
Weight:
458g
