RC-63DLN(W) 6-Button Room Controller with Digital Volume Control & LCD Group Labels, White
Please sign in so that we can notify you about a reply
The RC−63DLN is a 6−button control keypad with knob and LCD displays. Connected over KNET™ to master room controller and auxiliary keypads for remote keypad control, it can serve either as a standalone room controller or part of a multi−unit KNET™ system. The RC−63DLN is ideal for classrooms and meeting rooms, for convenient control of their multimedia devices and other room facilities such as screens and shades.
Features
- Back Lit & Label Capable Buttons — 6 RGB–color, tactile feedback, backlit buttons. Buttons are grouped in 2 groups, 4 buttons in ‘SOURCES’ group, and 2 buttons in ‘DISPLAY’ group.
- Custom Labeled, Removable Button Caps.
- Volume Control Knob with LEDs — Bi–directional rotary dialed digital knob for volume control, with 5 LED bar for visual volume level feedback.

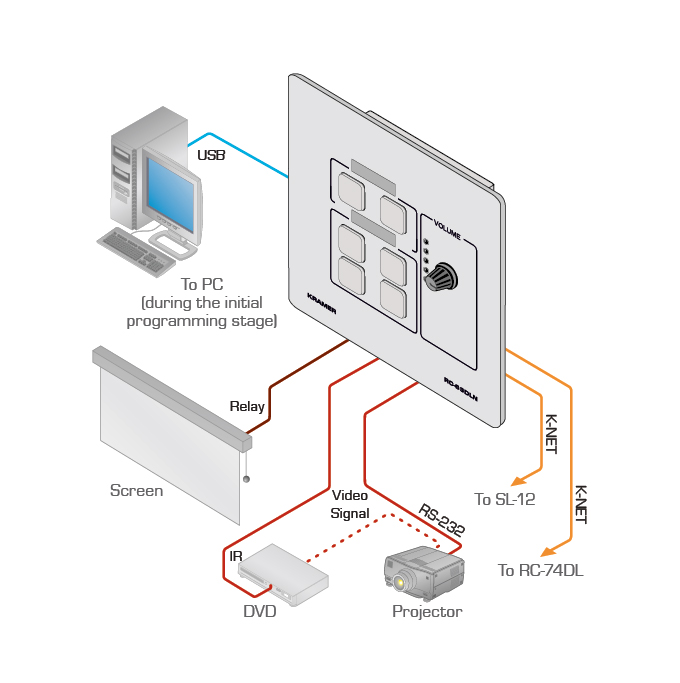

- 2 K–NET™ Connectors — Connects to master room controller, and auxiliary keypads for remote keypad control.
- K–NET™ Single Link Connection — Provides a single keypad link cable–connectivity, carrying both power and keypad control communication information.
- RS–232 Control Port — Controls a device via serial control protocols.
- IR Emitter Control Port — Controls a device via IR control protocols.
- Relay Control Port — Controls a device via relay contact closure.
- IR Sensor Port — Learns commands from IR remotes.
- Program Control — Program configuration with Kramer K–Config software.
- Keypad Lock–Out — Option for tampering prevention by locking and unlocking of the keypad buttons.
- Mini USB Port — To upload configuration files, set the K–NET™ ID number, and power the device during configuration.
- Mounting — In–wall, in standard 2 gang EU, UK, and US wall junction boxes.
- Easy Installation — Fits to standard in–wall boxes for simple and cost–reducing installation.
Brand:
Kramer
Part number:
80-80237095
Product Type:
Control Keypad with Knob with Displays
Specifications
Maximum Operating Temperature:
+40°C
Colour:
White
Special Features:
Provides a Single Keypad Link Cable-Connectivity, Carrying both Power and Keypad Control Communication Information
Control Interface Type:
6xButton
Applications:
Control in Presentation, Conference Room Systems, Board Rooms, Auditoriums
Enclosure Type:
In-Wall, Standard 2 Gang
Humidity:
10 to 90%
Minimum Operating Temperature:
0°C
Includes:
Power Supply, Label Set, Screwdriver
Inputs and Ports
Port Type:
1xRS-232, 2xK-NET, 1xMini USB
Output Port Type:
2 Relays
Power
Current Rating:
100mA
Fuse Type:
500mA, FSMD 2920
Dimensions
Width:
11.43cm
Depth:
2.5cm
Height:
11.4cm
Weight:
0.1kg
Other
Voltage Rating:
12V DC
Standards Met:
CE, ISO 9001:2008
