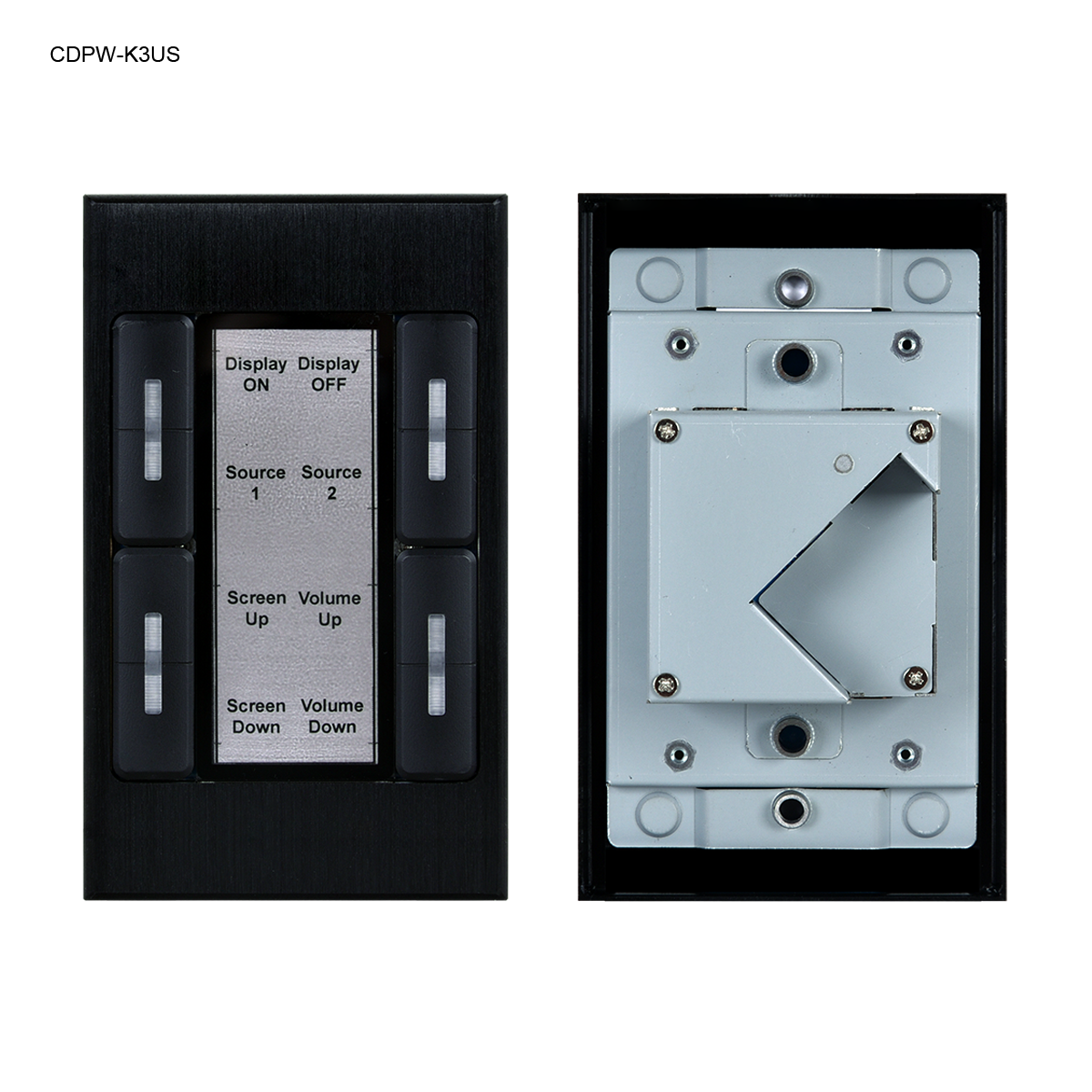

CDPW-K3US 8 Button Control Keypad with IP
Please sign in so that we can notify you about a reply
These keypads are versatile and useful products for both system integrators and smart home users alike. These keypads can send commands to any Ethernet controlled or relay controllable device in your system. The buttons are suitable for all environments and PoE (Power over Ethernet) support allows for creative placement of the keypad within your space without needing to be concerned about keeping it near a live power source. Additionally, the integrated clock and calendar based scheduling feature allows you to trigger macros to control devices within your installation at a specific time, or on a recurring schedule. The sophisticated appearance makes this keypad an elegant and decorative addition to your living or working space.
Features- 32 macros for controlling user equipment
- Up to 128 total commands can be stored and used across all macros in the system (up to 16 per macro)
- Supports time and date macro scheduling (single and recurring)
- Supports condition checking within macro commands for expanded macro design flexibility
- Supports 120 hours of backup power for the internal clock and schedule function to protect against blackouts and temporary power loss
- Supports customizable daylight savings time configuration
- Can be powered by an Ethernet switch that supports the IEEE 802.3af PoE standard (Optional)
- Controllable via keypad, Telnet and WebGUI
Brand:
Cypress Technology
Product Type:
8-Button Control Keypad
Specifications
Maximum Operating Temperature:
+40°C
Colour:
Black
Service Port Type:
1xUSB 2.0 (Micro USB)
Control Interface Type:
8xLED Button
Power Rating:
1.1W
Chassis Material:
Plastic, Steel
Enclosure Type:
1-Gang (US) Wall Plate Design
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
1x8-Button Control Keypad, 1x1-Gang Wall Plate (US, Black), 1x5V/2.6A DC Power Adapter, 1xOperation Manual
Inputs and Ports
Port Type:
1xIP Control
I/O Interface Type:
1xLAN (RJ45)
Power
Current Rating:
2.6A DC
Power Supply Port Type:
PoE (802.3af)
Dimensions
Width:
11.43cm
Depth:
4.05cm
Height:
6.9cm
Weight:
200g
Other
Voltage Rating:
5V
Standards Met:
CE, FCC Complaint, UL Listed
