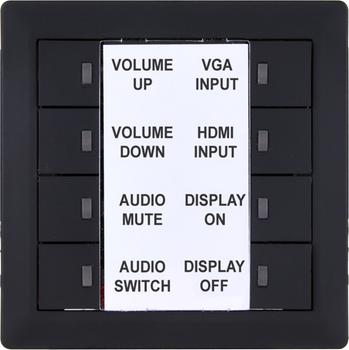

CDPS-TG2 8-Button Trigger Control Keypad

Write a review
CDPS-TG2
Cypress Technology
Log in to see price Add to wish list Add to Project

For aesthetic considerations, we specially designed wall plate extender. CMF-100 includes this kind of extender which contains scaler and control functions. It is a multi-functions AV solution designed to provide HDMI video switching, system control, video extension and analog audio amplification in a convenient kit. The system consists of CH-2607TXPL Scaler Wall Plate HDBaseT Transmitter, CH-2607RXPL HDBaseT Receiver and CDPS-TG2 keypad control.The Transmitter can send high-definition uncompressed audio/video over a single cable up to a distance of 60 meters at 1080p. The HDMI input supports resolutions up to 4K@60Hz (4:4:4, 8-bit). The VGA input supports resolutions up to WUXGA (RB) and with the use of the associated 3.5mm audio input. To provide maximum compatibility with a wide range of display types, all sources will be automatically scaled to match the preferred resolution and timing of the connected display (as reported by the display’s EDID). 4K UHD HDMI video sources, up to and including 4K@50/60Hz (4:4:4, 8-bit), are supported by converting the signal to 4K@30Hz when necessary. This system may be powered by 48V PoH from the Receiver, which allows for greater flexibility in installations.Signal management features such as automatic switching based on input signal and hot plug detection enable convenient hands-free operation. An input button on the face of the unit provides quick, single button press, manual input selection. Other functionality is controllable via front panel controls, WebGUI, Telnet, and RS-232. Additionally, the receiver features an analog audio de-embedding 2x20 watt 4 Ohm stereo amplifier.

Features
  • Simultaneous transmission of uncompressed video, audio and data over a single 60m Cat.5e/6/7cable at 1080p and 35m at 4K
  • The Transmitter is powered via 48V PoH (PD) from the HDBaseT Receiver (PSE) HDBaseT feature support: HD Video and Audio, 48V PoH, one direction USB pass-through and control (bi-direction IR pass-through)
  • Controllable via front panel, WebGUI, Telnet, Key Pad, and RS-232[Keypad: CDPS-TG2]
  • Supports firmware update via USB
  • Support 8 keypad triggered command
Brand:
Cypress Technology
Product Type:
Control Keypad
Specifications
Special Features:
Supports Firmware Update Via USB, Support 8 Keypad Triggered Command
Inputs and Ports
Input Port Type:
HDMI, VGA
Output Port Type:
8xButton
I/O Interface Type:
1xRJ45 [1xRS-232]
Power
Power Supply Port Type:
48V PoH (PD)
Dimensions
Width:
7cm
Depth:
3.3cm
Height:
7cm
Weight:
115g
