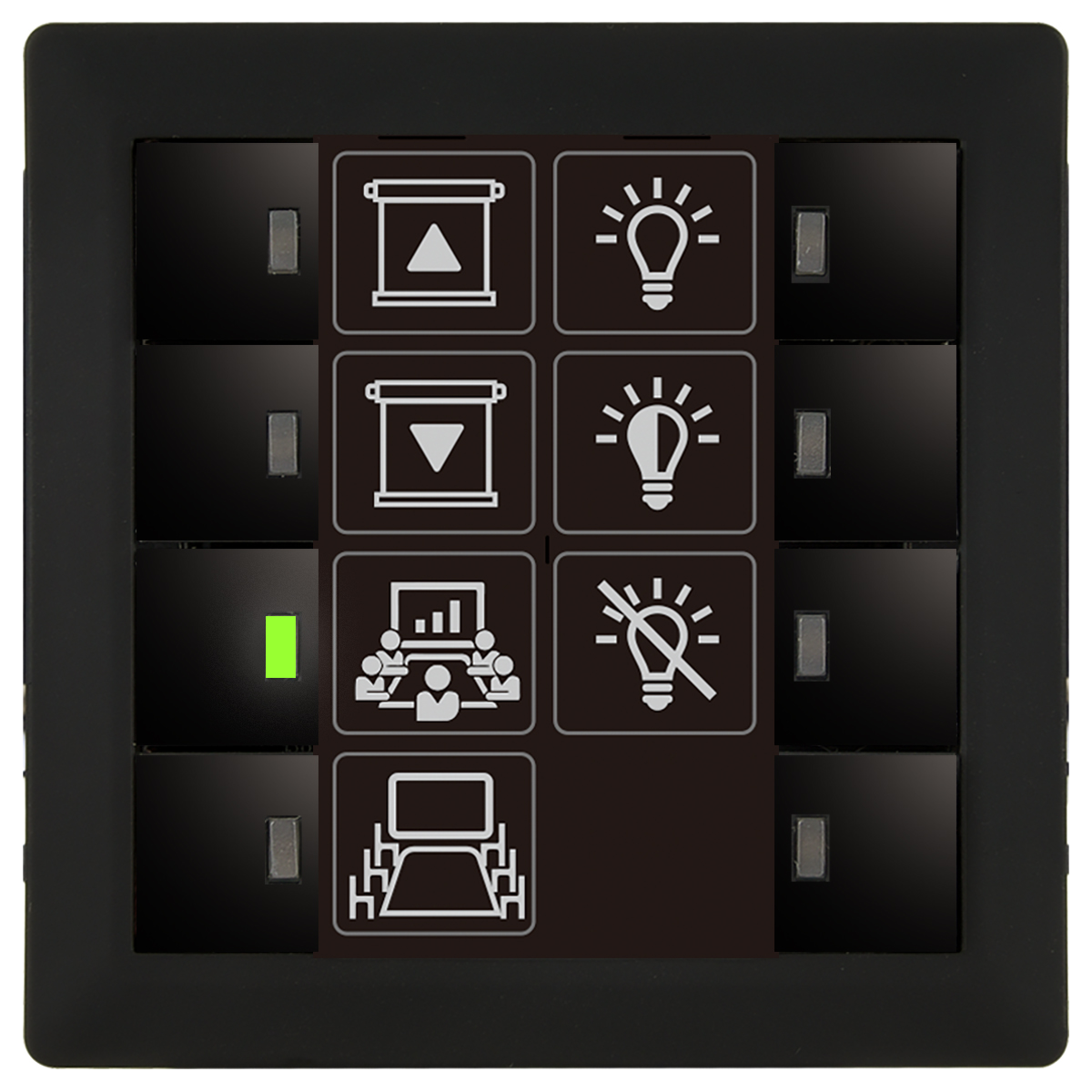

CDPS-TG1 LED Button Control Keypad
Please sign in so that we can notify you about a reply
This keypad is designed to be a simple and efficient interface for a more complex control system. This keypad features a set of 8 buttons which directly activate its 8 trigger connections which can be attached to any compatible control system. The keypad’s connection cable allows for the extension of instant system control to locations that are more convenient for user interaction such as a conference table, lectern, or wall plate. The sophisticated appearance makes this keypad an elegant and decorative addition to your living or working space.
Features- 8 buttons linked directly to 8 triggers which are capable of instantly activating macros or functions on a connected control device
- Provides instant extended physical control of compatible control devices
- Allows for easy execution of macros (on compatible control systems) which can activate complex, multi-step, events with a single button press
- No external power supply required

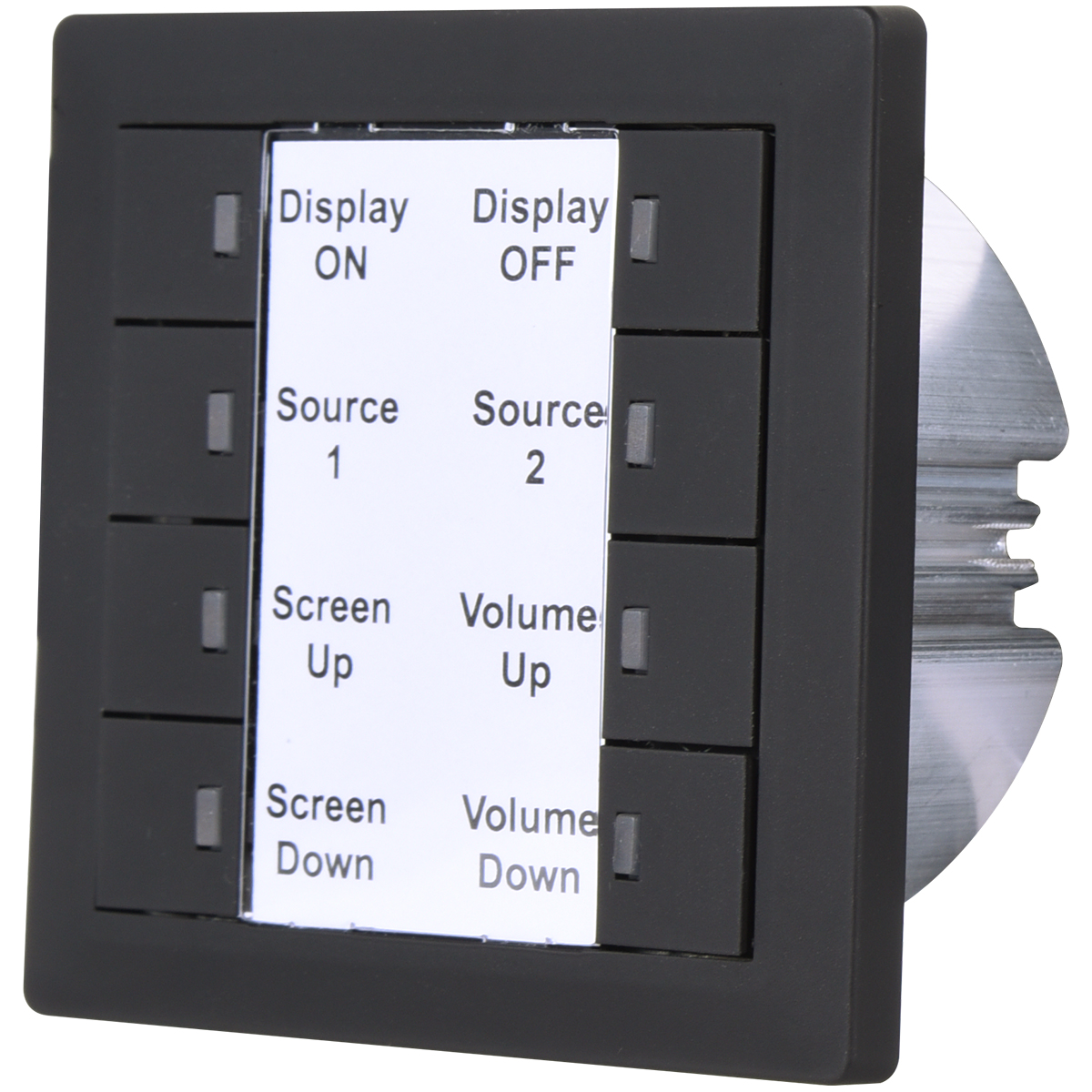

- User customizable button labels
- Elegant appearance
Brand:
Cypress Technology
Specifications
Product Type:
Control Keypad
Maximum Operating Temperature:
+40°C
Colour:
Black
Special Features:
No External Power Supply Required, User Customizable Button Labels, Elegant Appearance
Chassis Material:
Metal (Case), Plastic (Face Plate)
Enclosure Type:
Conference Table, Lectern, Wall Plate
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
1xControl Keypad, 2xTerminal Blocks (5-Pin), 2xButton Labels, 1xOperation Manual
Inputs and Ports
Input Port Type:
8xButton
Output Port Type:

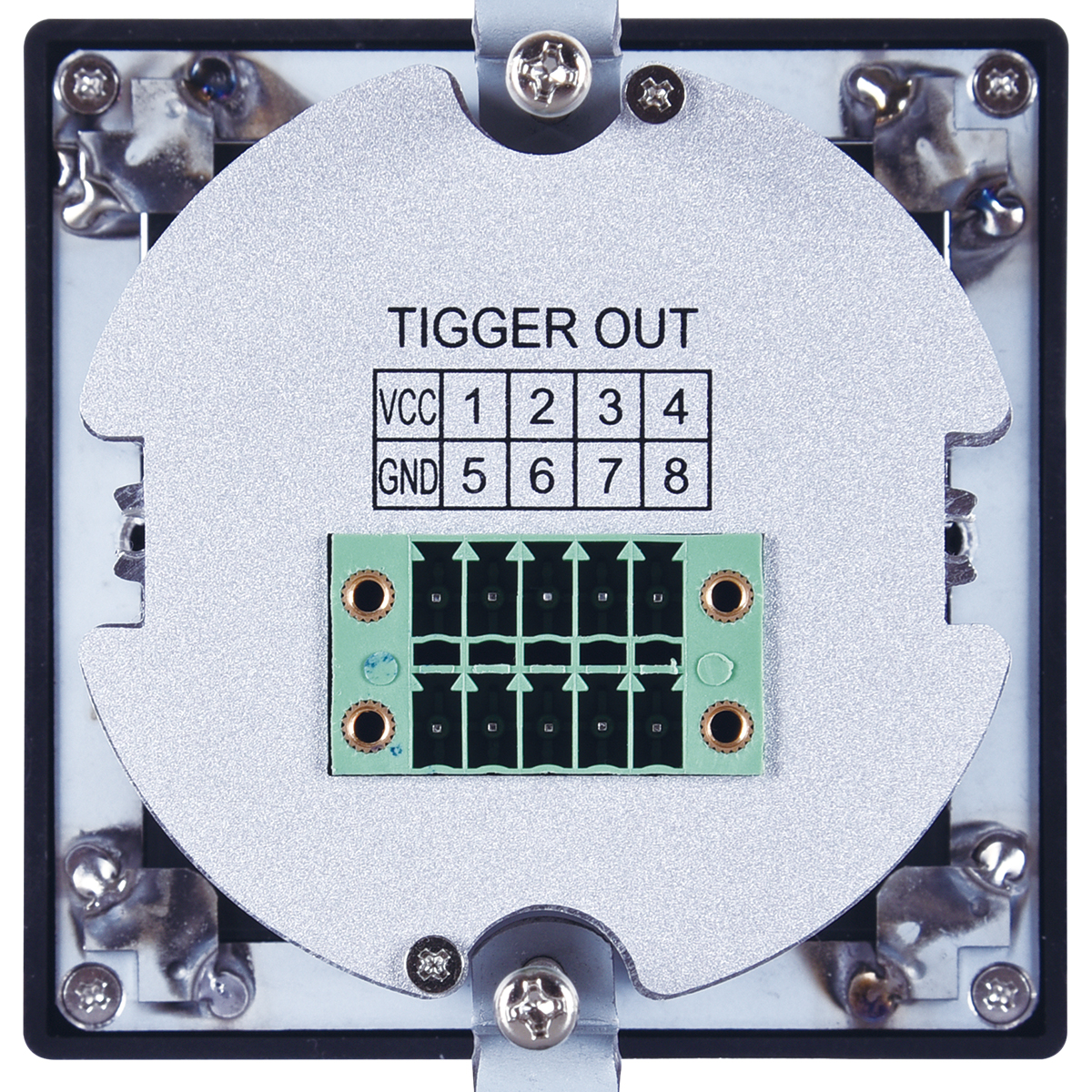

8xTerminal Blocks
Dimensions
Width:
7cm
Depth:
3.3cm
Height:
7cm
Weight:
100g
