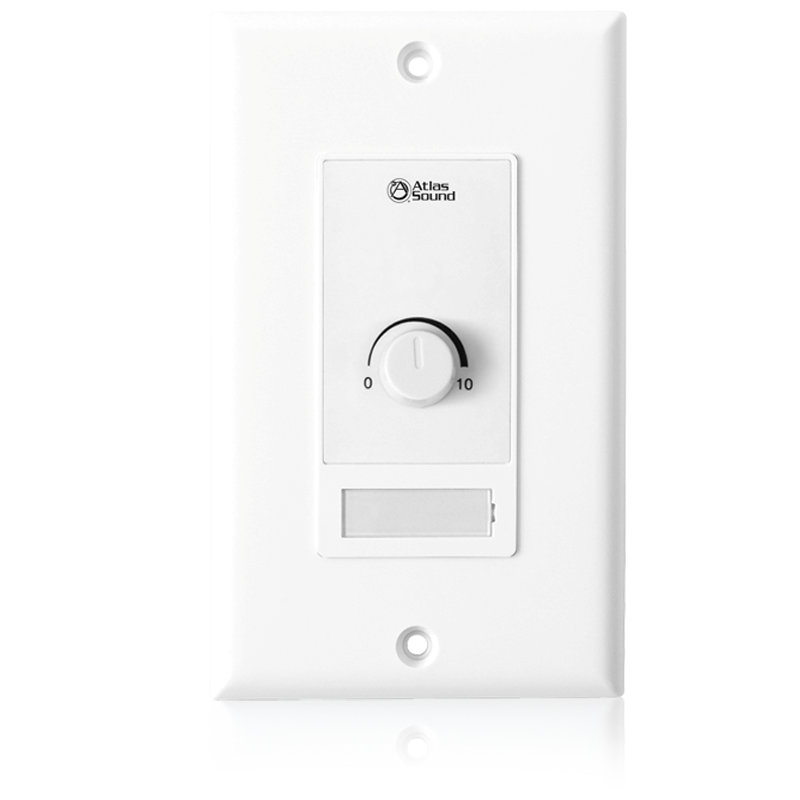

WPD-VC10K Wall Plate 10kO Level Control

Write a review
WPD-VC10K
Atlas IED
Log in to see price Add to wish list Add to Project

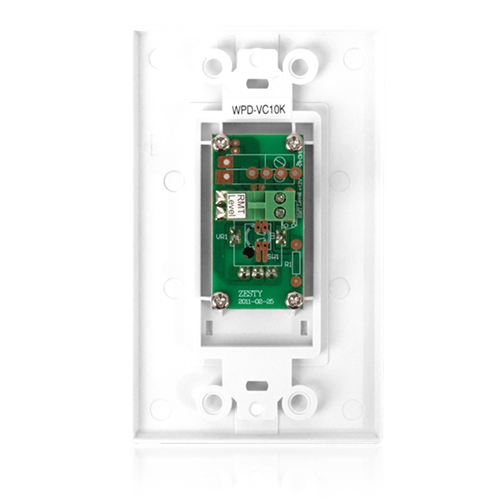

The AtlasIED WPD-VC10K is a decor style wall plate featuring an adjustable 10kΩ potentiometer designed to remotely control the level of connected AtlasIED products like amplifiers. The unit is constructed of durable ABS material and a removable label guard for easy and clean designation of key switch function. The unit can function with VCA 2 or 3 conductor systems and uses a 2 or 3 conductor interface connection designed to work with the included Phoenix style connector. This unit can function in up to 200 feet from the controlled unit using 22-gauge wire.

Features
  • White Decor Style Plate, ABS Material
  • Fits a Single Gang Electrical Outlet
  • 2 or 3 Conductor Interface Connection
  • Removable 3 Position Phoenix Style Connector, 5.08mm Pin Spacing
  • Removable Label Guard Allows for Clean Identification
Brand:
Atlas IED
Product Type:
Wall Plate
Specifications
Colour:
White
Material:
ABS
Dimensions
Width:
6.3cm
Depth:
0.6cm
Height:
11.4cm
Other
Warranty:
3yrs

WPD-VC10K 1 (ATS004434B-WPD-VC10K-Owners-Manual.pdf, 451 Kb) [Download]
