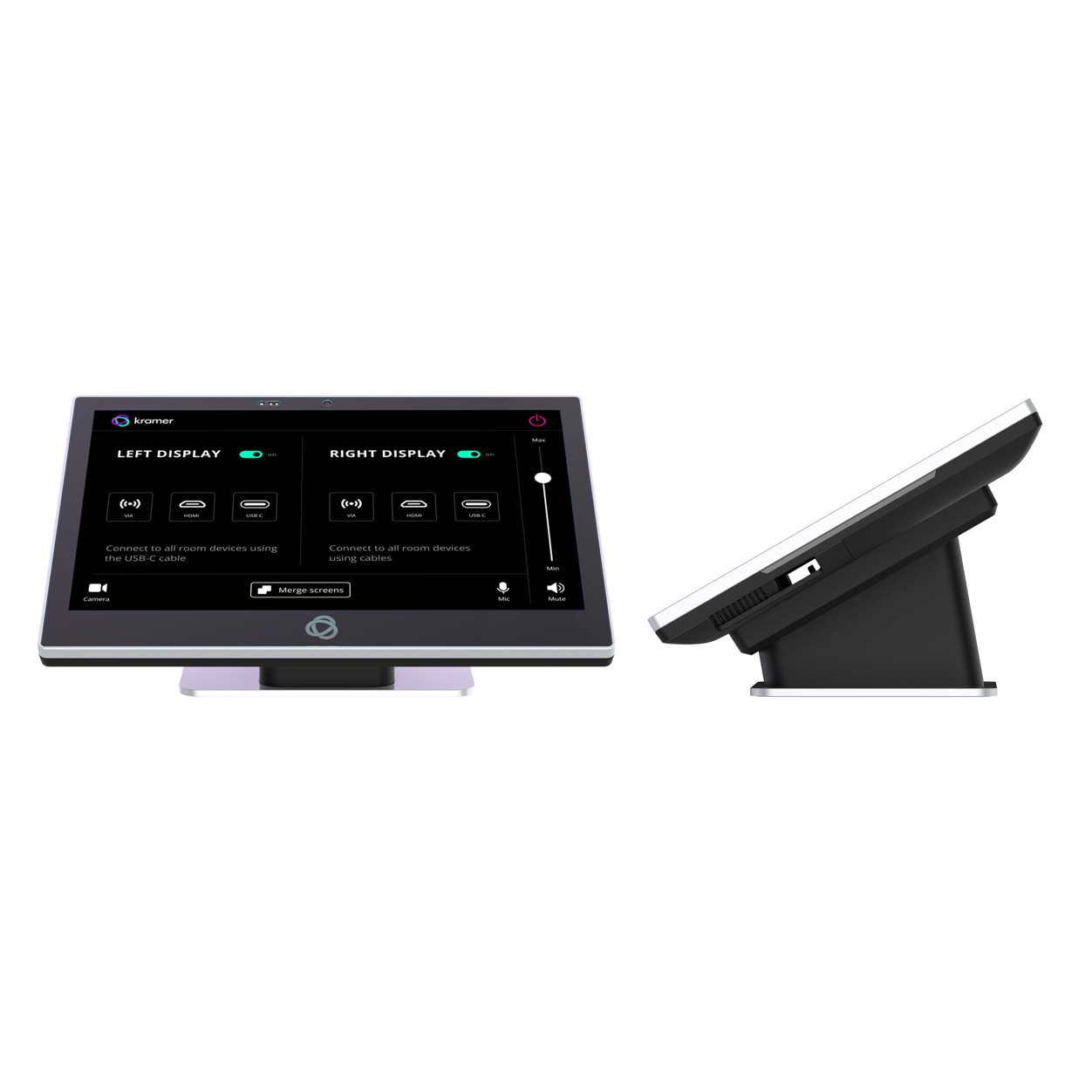

KT-2010 10in Table Mount PoE Touch Panel

KT-2010 is a new powerful, 10-inch, IPS, multi-touch, touch panel with 1920x1200 resolution. Elegantly designed for decorative room integration, this portable touch panel can be deployed either on a tabletop or wall. KT-2010, with the latest Android 11, supports wired PoE (Power over Ethernet) and advanced Wi-Fi connectivity options. The touch panel has a built-in speaker and camera and comes either with a tabletop or a wall mount. The touch panel is easy to assemble, using elegant wiring, secured mounting, reliable operation and flexible deployment. KT-2010 is a touch panel that is ideal for any 24/7 Kramer-supported commercial AV or control application and features a user-friendly, fully customizable graphical user interface configured by Kramer software.

Features

  • Elegant Design - Smooth integration with room furniture design, either on table or wall, with flexible panel cabling and locking design options
  • Superior User Experience - IPS 1280x800 hi-resolution screen with ±80° horizontal and vertical wide viewing angles, ambient light sensor, proximity sensor, with advanced 10 multi-touch points and 2-finger gesture capabilities
  • Powerful Processing - i.MX8M Plus Quad Core A53, 4GB RAM, 32GB ROM processing performance, smoothly running complicated media and graphics-rich applications, such as H.265 video, audio streams encoding and decoding, and seamless hi-resolution 5Mp FF camera operation
  • Flexible Services - Latest Android 11 operating system
  • Easy Installation - Powering and connectivity via a single Ethernet cable
  • Flexible Mounting - Including table and wall mounts
  • Optional Connectivity - Simple wireless Bluetooth 5 as well as connection to USB peripheral devices for either table or wall-mount installations, using the included USB cable
  • Reliable Networking - Seamless switching between wired and wireless 802.11ac connectivity
  • Versatile Powering Options - PoE and power adapter (sold separately)
  • Auto Sensing - Optimized performance and operation according to automatically detected LAN speed
  • Firmware Update - Define automatic updates on a predefined time of the day or update manually using USB port
  • Secured Operation - Highly secured operation of applications using password protection, hidden control buttons and more. Red LED alert when camera is active
  • Secured Deployment - Flexible locking options to prevent unwanted panel mount removal, elegantly designed to remain out of site
Brand:
Kramer
Part number:
30-000590
Specifications
Product Type:
PoE Touch Panel
Camera Type:
5MP Camera
Display Size:
10in
Display Type:
LED
Touch Panel Type:
10 Multi-Touch Point with 2-Finger Gesture
Mounting Type:
Wall Mount, Table Mount
Colour:
Black
Supported Video Format Type:
H.264 / H.265,VC-1, MPEG-4, VP9/VP8
Viewing Angle:
±80°
Control Type:
Button
VESA Mounting Ready:
7.5x7.5cm
Speaker Unit Type:
2x1W
User Interface Indicator Type:
LED Sidebar
System Memory:
4GB LPDDR4
Internal Storage Memory:
32GB eMMC
Back-Light Type:
LED Side-Light
Humidity:
5 to 85%
Operating Temperature Range:
0 TO +40°C
Includes:
2xLED Side Bars, Table Mount for KT-2010/On-Wall Mounting Bracket & Panel Mounting Bracket for KT-2010WM, Installation Screws
Performance
Display Resolution:
1920x1200pixels
Contrast Ratio:
1000:1
Supported Audio Formats:
MPEG/OGG/AAC
CPU Performance:
ARM Quad-Core Cortex-A53 Up to 1.8GHz (64Bit)
Inputs and Ports
Number of Ports:
1 (Ethernet), 2 (USB)
Connectivity
Wireless Communication Type:
Wi-Fi 6, 802.11 a/b/g/n/ax/ax+BT 5.0
Ethernet Port Type:
10/100/1000 Mbps LAN
Power
Power Source Type:
12V / 2A DC Adapter, PoE
Dimensions
Length:
1.85cm
Width:
24.2cm
Height:
17.3cm
Weight:
0.6kg
Shipping Weight:
1.2kg
Other
Voltage Rating:
12V
Standards Met:
CE, FCC, UL, UKCA, RoHs, WEEE

KT-2010 1 (KT-2010, 146 Kb) [Download]
