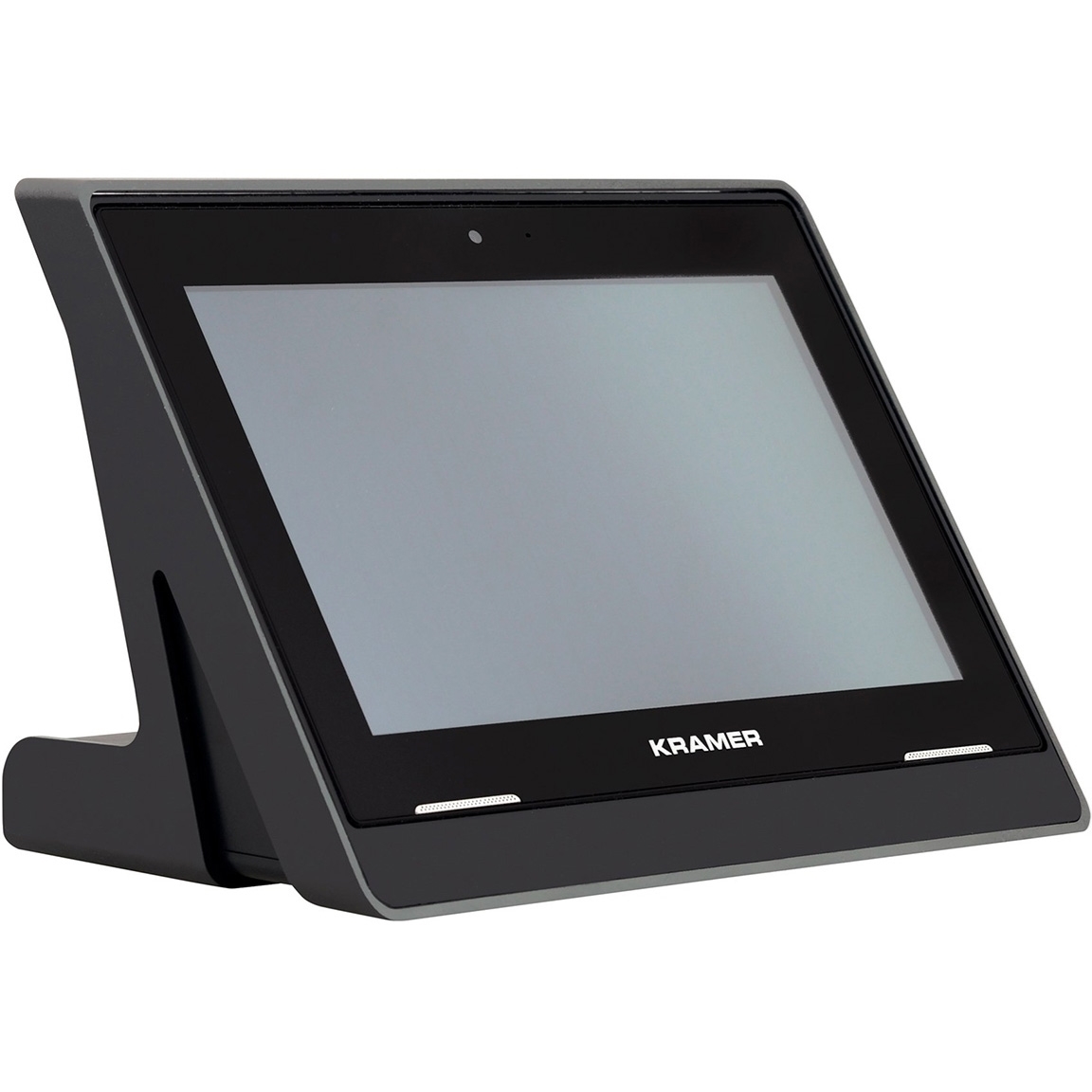

KT-107S Secured 7-Inch Wall & Table Mount PoE Touch Panel

KT−107S is a highly secured 7−inch IPS multi−touch, powerful touch panel with 1280x800 resolution. Elegantly designed for decorative room integration, this portable touch panel can be deployed either tabletop or on−wall, mounted inside standard in−wall junction boxes. KT−107S supports wired Power over Ethernet (PoE) resilient connectivity. The touch panel comes with table and wall mounts for easy installation, secured mounting, and flexible deployment. KT−107S is an Android−based touch panel that is ideal for any 24/7 Kramer−supported commercial AV or control application and features a user−friendly, fully customizable graphical user interface configured by Kramer software.

Features

  • High Security Operation - Touch panel specially designed for highly secured deployment applications, with no camera, microphone, Wi–Fi and Bluetooth wireless connectivity.
  • Elegant Design - Smooth integration with room furniture design, either on table or wall, with flexible panel cabling and locking design options.
  • Easy Installation - Single Ethernet cable for connectivity and powering, flexible package–included table and wall mounts that fit into standard market–available 2–gang in–wall junction boxes and simple wired USB peripheral add–on connectivity to either mounting options with package–included USB cable.
  • Reliable Operation - Seamless, non–service affecting switching between PoE, PSU and battery powering resiliency options.
  • Secured Deployment - Flexible, invisible panel and mounts, screwing and locking options to prevent unwanted displacement, secured applications operation with various unauthorized exit protection options.
  • Hi–quality User Experience - IPS 1280x800 hi–resolution screen with ±80° horizontal and vertical wide viewing angles, built–in lighting sensor for auto–adaptable brightness, with advanced 10 multi–touch points and 2 finger gesture capabilities.
  • Powerful Processing - Quad–core CPU, GPU, 2GB RAM, 16GB ROM processing performance, smoothly running complicated media and graphics rich applications, such as H.265 video and audio streams encoding and decoding.
  • Flexible Services - Advanced Android 6.0 Operating System with rich Kramer and market–available applications from cloud/store offerings, such as K–Touch Control and EventBoard Scheduling applications.
Brand:
Kramer
Part number:
30-001890
Product Type:
Secured PoE Touch Panel
Specifications
Display Size:
17.78cm
Display Size:
17.78cm
Display Type:
IPS
Touch Panel Type:
10 Point 2-Finger Gesture
Mounting Type:
Wall Mount, Table Mount
Supported Video Format Type:
HEVC/H.265 (Decoding Format), H.264 (Decoding Format), H.263 (Decoding Format), MPEG-1/2/4 (Decoding Format), VC-1 (Decoding Format), VP6/8 (Decoding Format), RV8/9/10 (Decoding Format), AVS (Decoding Format), MVC (Decoding Format), Sorenson Spark (Decodi
Viewing Angle:
±85° (Horizontal/Vertical)
Control Type:
Hidden Reset Button, Power Button (ON/OFF), Volume Up Button
Speaker Unit Type:
2x1W, 8Ω
User Interface Indicator Type:
Touch Panel Status LED: Flashes Green During Charging, Steady Green for Fully Charged
Humidity:
10 to 90%
Operating Temperature Range:
0 TO +40°C
Includes:
Power Supply Unit Adapter (5V, 4.0A AC/DC), Tabletop Mount, On-Wall Mount Unit, Panel-Mount Plate, Right-Angle OTG USB Cable, Installation Screws
Performance
Contrast Ratio:
800:1
CPU Performance:
1.6GHz Quad Core, GPU, 2GB RAM, 16GB Flash
Inputs and Ports
Number of Ports:
1x1000/100/10BaseT Ethernet (Tabletop Mount): On RJ45 Connector (Tabletop Mount), 1xMicro USB 2.0 (Tabletop Mount), 2-Pin Terminal Block for DC Power Supply (Tabletop Mount), 1x1000/100/10BaseT Ethernet on RJ45 Connector (On-Wall Mount), 2-Pin Terminal Bl
Connectivity
Ethernet Port Type:
10/100/1000Mbps PoE LAN
Power
Power Source Type:
POE Power Supply Unit, Battery
Dimensions
Length:
13cm
Width:
17.8cm
Height:
1.3cm
Weight:
0.4kg
Other
Voltage Rating:
5V DC
Voltage Rating:
5V DC
Standards Met:
CE/CB, FCC, ROHS, REACH

KT-107S 1 (KT-107S.pdf, 124 Kb) [Download]
