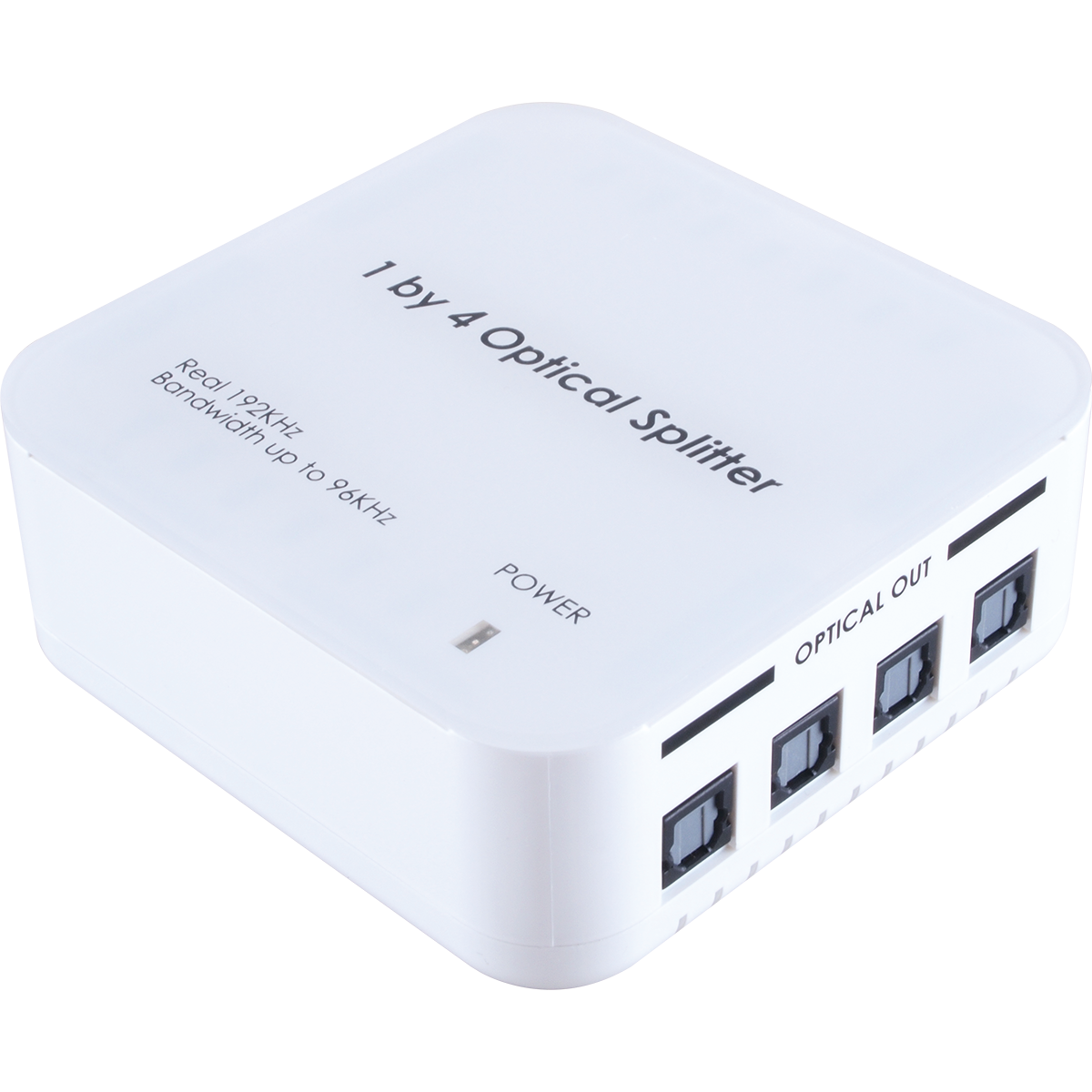

DCT-28 1x4 Optical Audio Splitter
Please sign in so that we can notify you about a reply

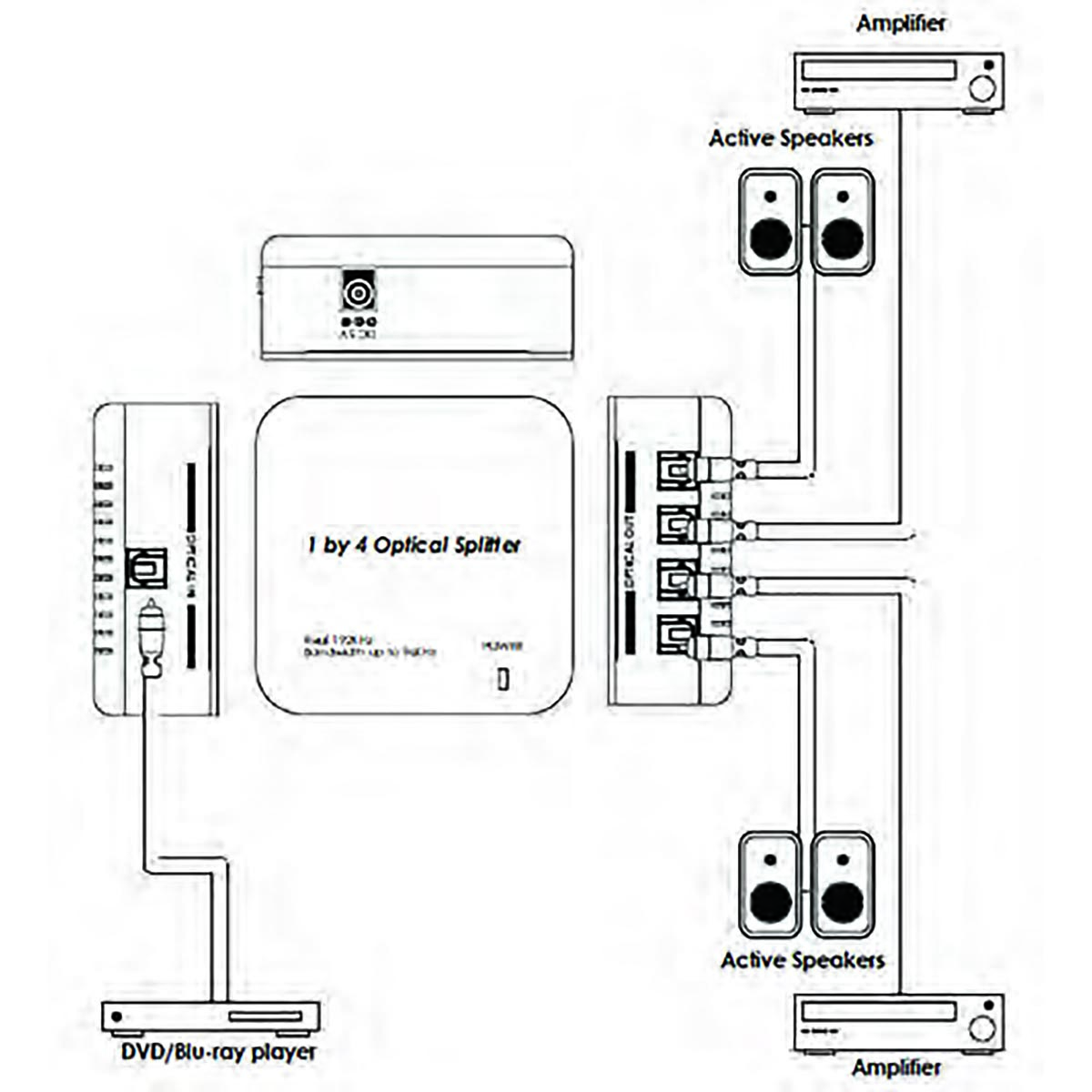

The 1 by 4 Optical Audio Splitter has one optical input and four optical outputs that allow users to share one optical source to output onto four optical sound systems. A simple and easy to use tool for expanding single optical signal to multiple areas.
Features
- Supports one optical input and four optical outputs
- Supports 2CH LPCM audio signal, sampling rate from 32kHz to 192kHz
- Supports Dolby and DTS audio signal bypass
- Low power consumption
Brand:
Cypress Technology
Specifications
Product Type:
Optical Splitter
Splitter Type:
1x2
Maximum Operating Temperature:
+40°C
Colour:
White
Splitter Number:
2
Special Features:
Supports One Optical Input and Four Optical Output, Supports 2ch Lpcm Audio Signal (sampling Rate Up to 192kHz), Supports Dolby and Dts Audio Signal Bypass, Supports Sampling Rate from 32kHz to 192kHz, Low Power Consumption
Power Rating:
0.2W
Chassis Material:
Plastic
Applications:
Home Sound System, Conference and Meeting Room Audio System Sharing, Showroom
Minimum Operating Temperature:
0°C
Includes:
1 by 4 Optical Audio Splitter, 5v Power Adaptor, Operation Manual
Performance
Frequency Rating:
32 to 192kHz
Power
Input Voltage:
5V
Current Rating:
1A DC
Dimensions
Width:
8.5cm
Depth:
8.5cm
Height:
3.4cm
Weight:
94g
Other
Standards Met:
CE, FCC Compliant, UL Listed
No reviews found
