VP-400K 1:4 Computer Graphics Video Distribution Amplifier
Please sign in so that we can notify you about a reply

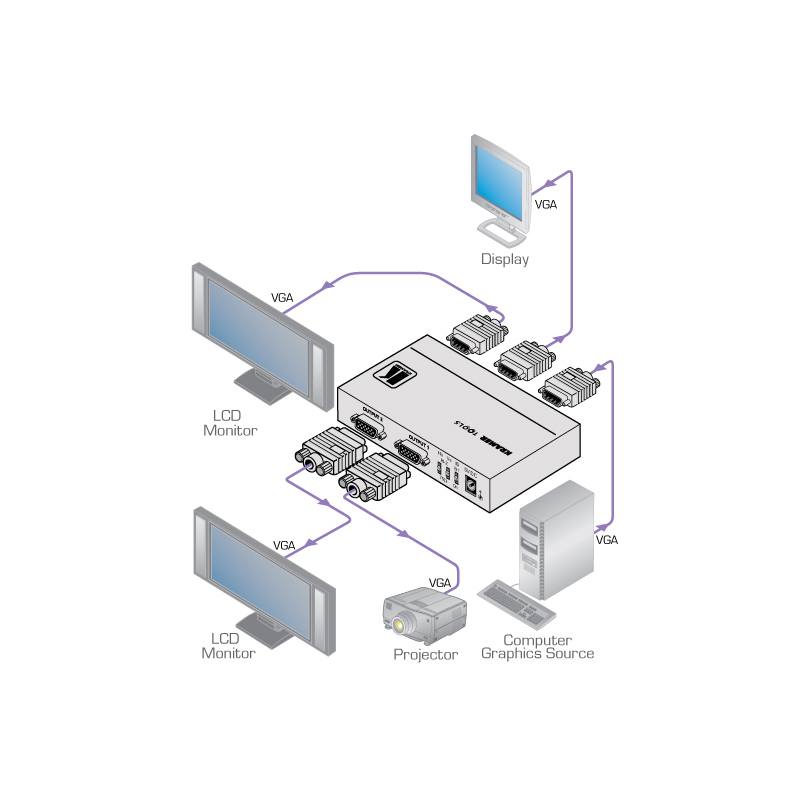

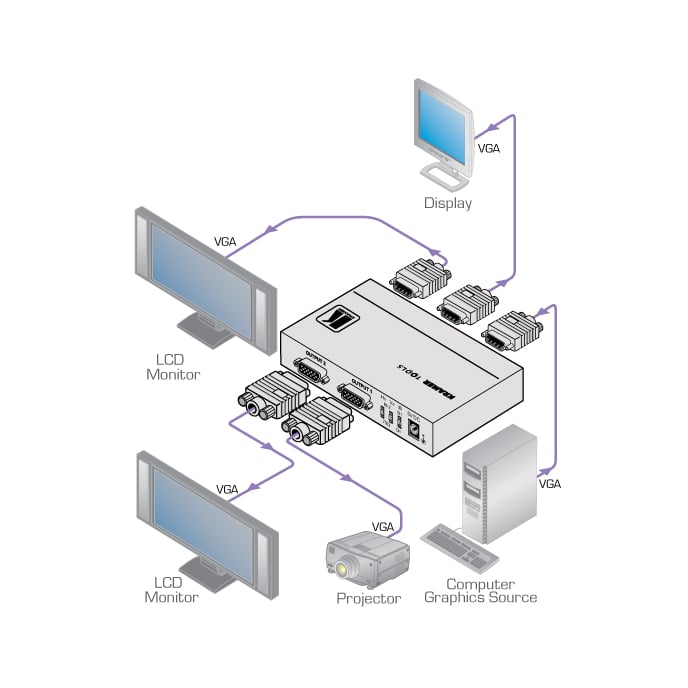

The VP−400K is a distribution amplifier for computer graphics signals with resolutions up to and exceeding UXGA. The unit takes one input, provides correct buffering and isolation, and distributes the signal to four identical outputs.
Features
- High Bandwidth - 400MHz (−3dB).
- HDTV Compatible.
- ID Bit Control. Kr-isp® Advanced Sync Processing - Ensures compatibility with a wide range of computers (even if the sync level is too low) by restoring the sync signal waveform.
- Kr−isp® advanced sync processing can be enabled or disabled.

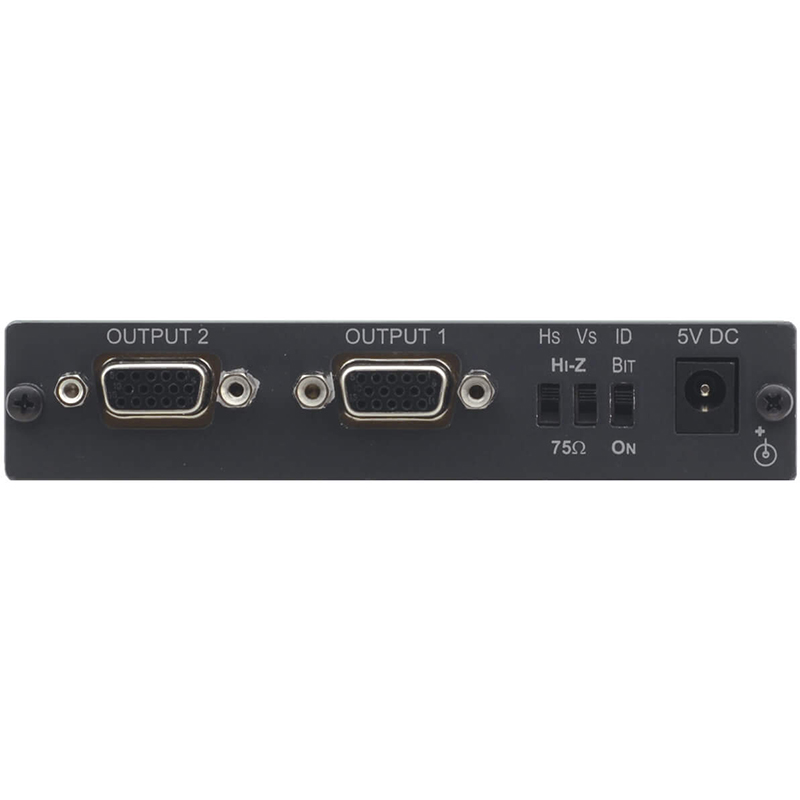

- EDID PassThru - Passes EDID signal from display to source via output 1. Selectable Sync Input Impedance - 75Ω (video), 510Ω (Graphics/TTL). DC Coupling.
- 3ft 15-pin HD Cable Included.
- Compact Krame
Brand:
Kramer
Part number:
11-70769090
Product Type:
VGA Splitter
Specifications
Maximum Operating Temperature:
+40°C
Special Features:
HDTV Compatible, ID Bit Control, kr-isp® Advanced Sync Processing, EDID PassThru, Selectable Sync Input Impedance, DC Coupling, 3ft 15-Pin HD Cable Included
Applications:
Dual Monitor Systems, Stores, and Points of Sale, Presentation Systems
Indicator Type:
LED
Humidity:
10 to 90%
Minimum Operating Temperature:
0°C
Includes:
Power Supply(5V/2.6A), Mounting Bracket
Performance
Bandwidth:
400MHz
Signal-to-Noise Ratio:
72dB
K-Factor:
<0.05%
Differential Gain:
0.03%
Differential Phase:
0.03°
Inputs and Ports
Output Type:

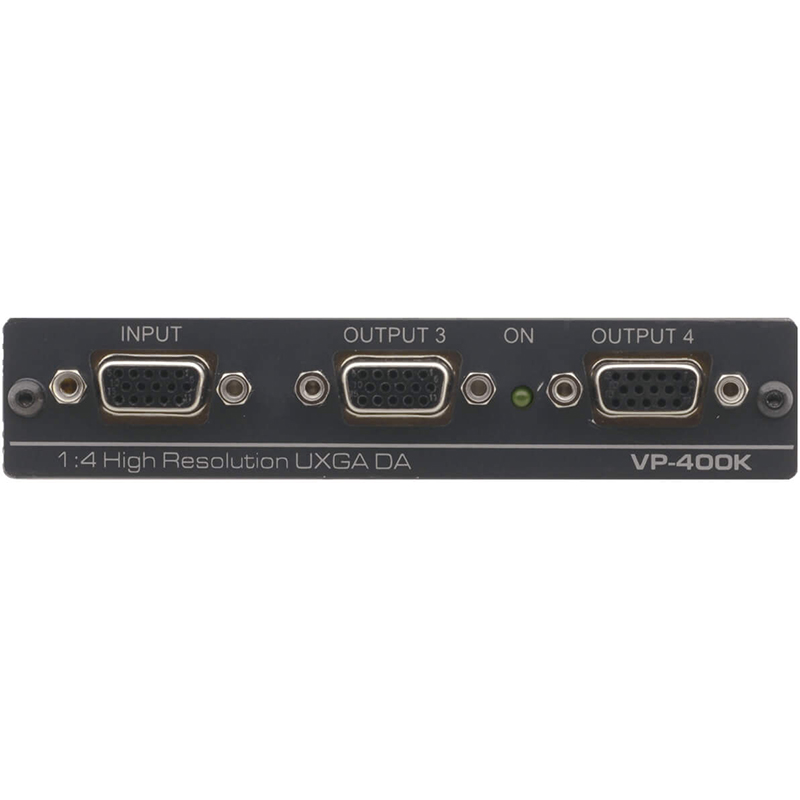

4xUXGA on 15-Pin HD Connector
Input Type:
1 UxGA on a 15-Pin HD Connector
Power
Input Voltage:
5V DC
Dimensions
Width:
12.cm
Depth:
7.1cm
Height:
2.4cm
Weight:
0.2kg
