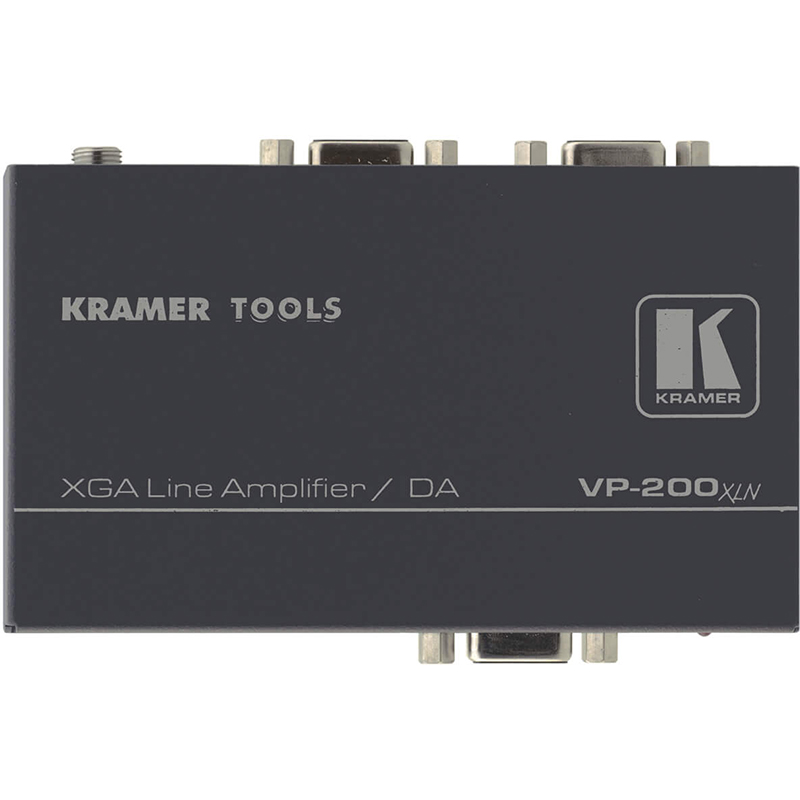

VP-200xln 1:2 Computer Graphics Video Line & Distribution Amplifier
Please sign in so that we can notify you about a reply
The VP-200xln is a high-performance line and distribution amplifier for computer graphics video signals with resolutions up to and exceeding UXGA. It provides controls to compensate for signal losses inherent in long cable runs.
Features
- High Bandwidth — 400MHz (–3dB).
- HDTV Compatible.
- Level (Gain) and EQ (Peaking) Controls.
- ID Bit Control.
- AC/DC Coupling Selection — Individually for R, G, & B signals.
Brand:
Kramer
Part number:
90-70169090
Specifications
Product Type:
VGA Splitter
Special Features:
HDTV Compatible, Level (Gain) and EQ (Peaking) Control, ID Bit Control, AC/DC Coupling Selection
Applications:

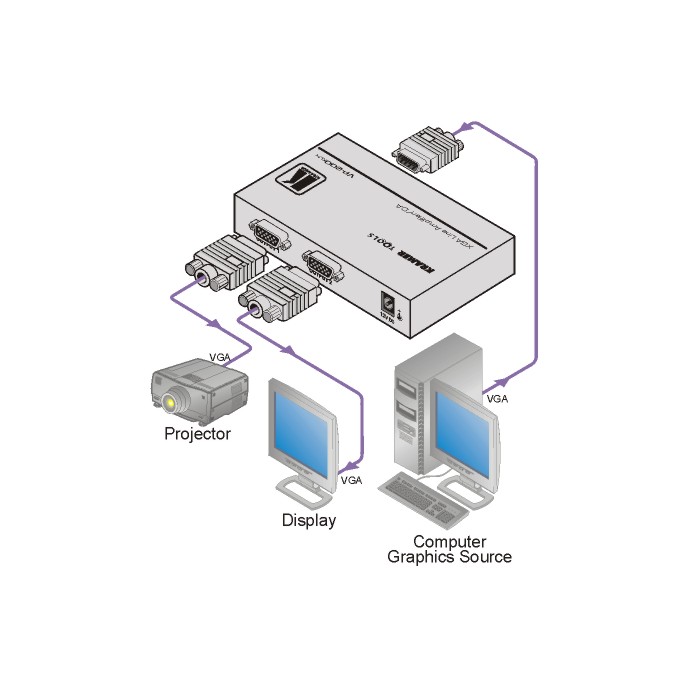

Dual Monitor Systems, Stores, and Points of Sale, Presentation Systems
Includes:
Power Supply, Mounting Bracket
Performance
Bandwidth:
400MHz
Signal-to-Noise Ratio:
71dB
K-Factor:
<0.05%
Differential Gain:
0.05%
Differential Phase:
0.03°
Inputs and Ports

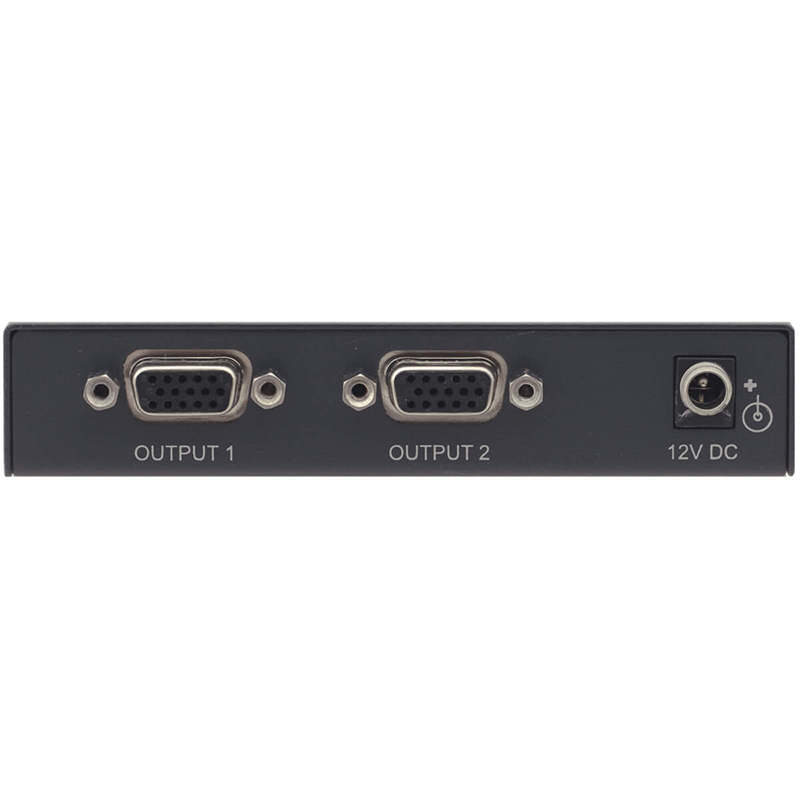

Output Type:
2xUXGA on 15-Pin HD (F) Connector

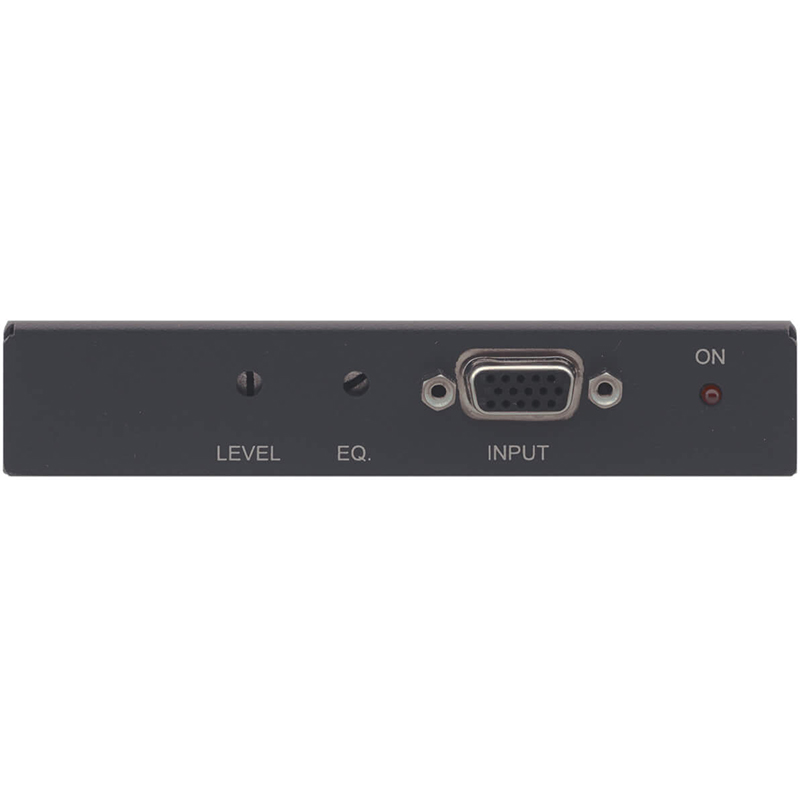

Input Type:
1 UxGA on a 15-Pin HD (Female) Connector
Power
Input Voltage:
12V DC
Dimensions
Width:
12.cm
Depth:
7.1cm
Height:
2.4cm
Weight:
0.2kg
