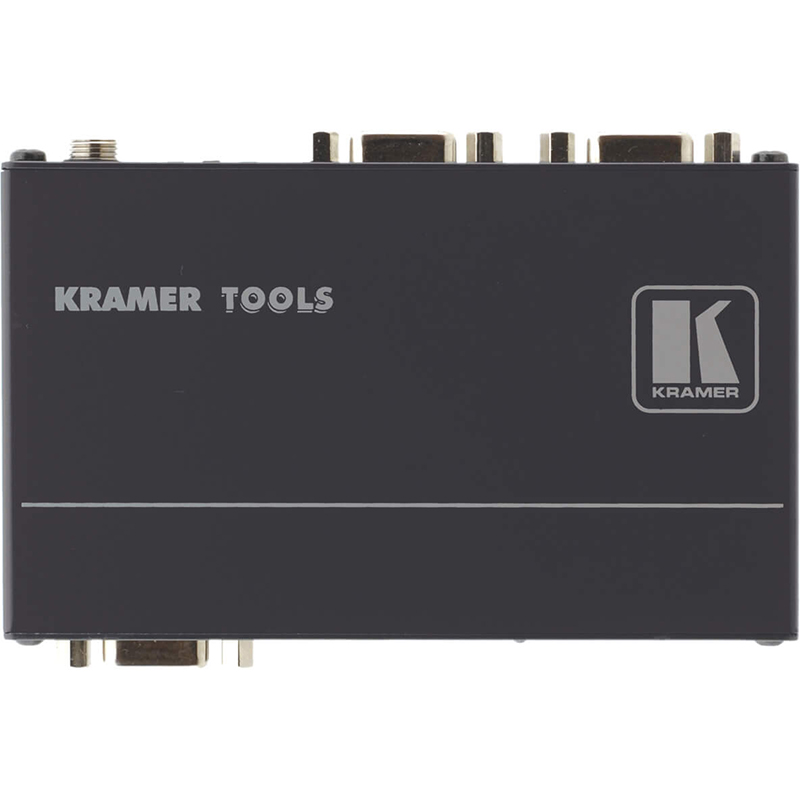

VP-200K 1:2 Computer Graphics Video Distribution Amplifier
Please sign in so that we can notify you about a reply
The VP−200K is a distribution amplifier for computer graphics signals up to and exceeding UXGA. The unit takes one input, provides correct buffering and isolation, and distributes the signal to two identical outputs.
Features
- High Bandwidth — 400MHz (–3dB).
- HDTV Compatible.
- ID Bit Control.
- Kr–isp® Advanced Sync Processing — Ensures compatibility with a wide range of computers (even if the sync level is too low) by restoring the sync signal waveform. Kr–isp® advanced sync processing can be enabled or disabled.
- EDID PassThru — Passes EDID signal from display to source via output 1.
- Selectable Sync Input Impedance — 75Ω (video), 510Ω (Graphics/TTL).
- DC Coupling.
- 3ft 15–pin HD Cable Included.
Brand:
Kramer
Part number:
11-70769190
Specifications
Product Type:
VGA Splitter
Maximum Operating Temperature:
+40°C
Special Features:
HDTV Compatible, ID Bit Control, kr-isp® Advanced Sync Processing, EDID PassThru, Selectable Sync Input Impedance, DC Coupling, 3ft 15-Pin HD Cable Included
Applications:

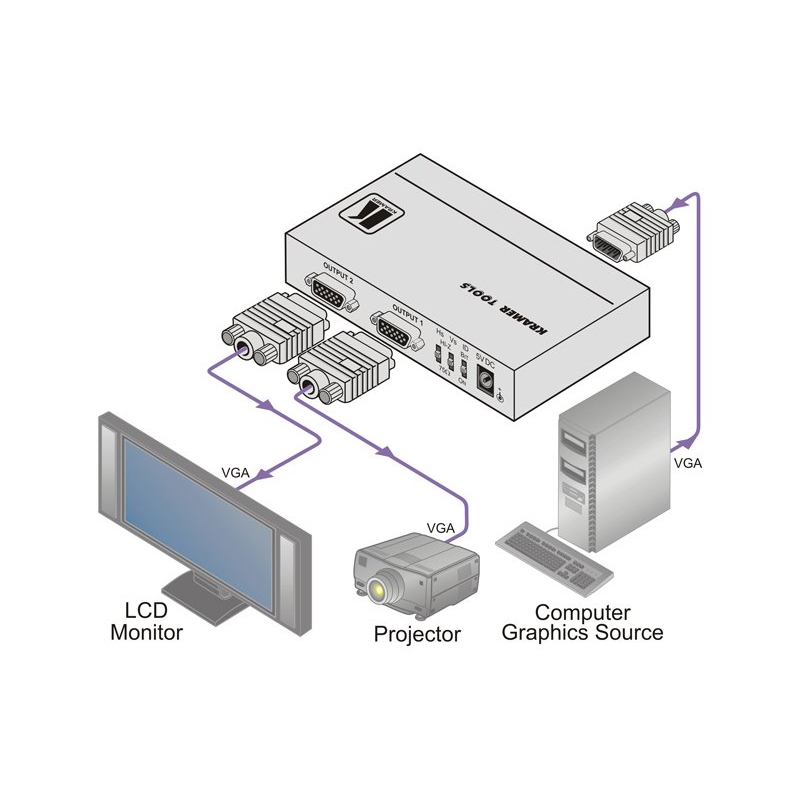

Dual Monitor Systems, Stores, and Points of Sale, Presentation Systems
Humidity:
10 to 90%
Minimum Operating Temperature:
0°C
Includes:
Power Supply(5V/2.6A), Mounting Bracket
Performance
Bandwidth:
400MHz
Signal-to-Noise Ratio:
72dB
K-Factor:
<0.05%
Differential Gain:
0.03%
Differential Phase:
0.03°
Inputs and Ports
Output Type:

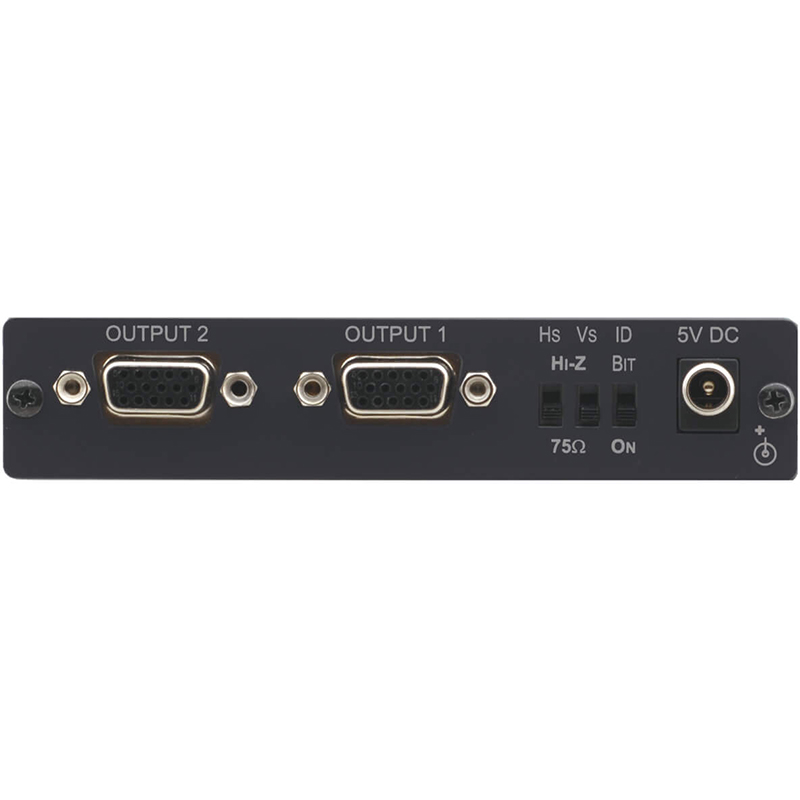

2xUXGA on 15-Pin HD Connector
Input Type:

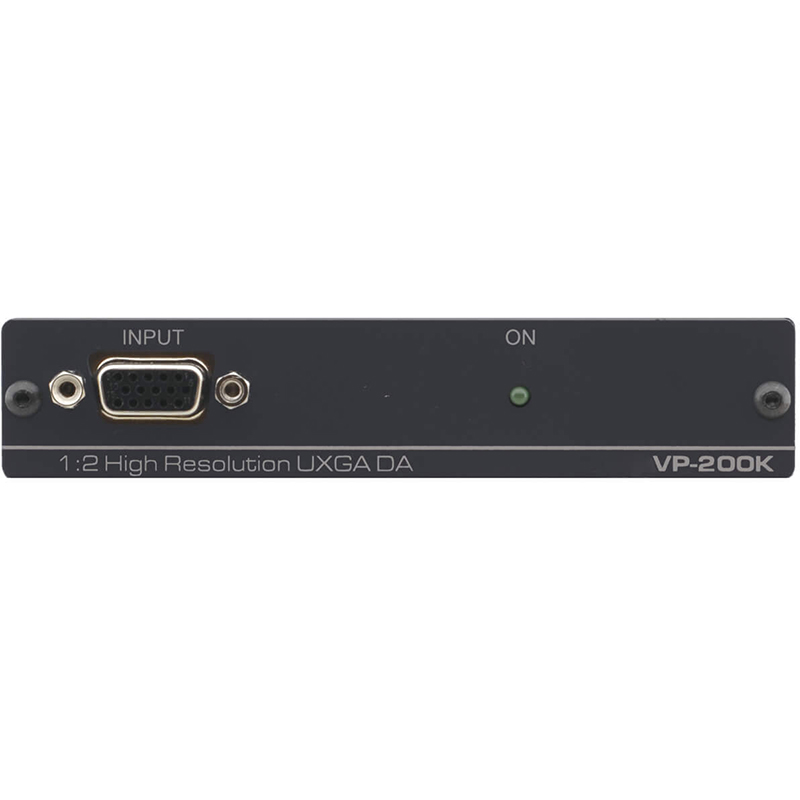

1 UxGA on a 15-Pin HD Connector
Power
Input Voltage:
5V DC
Dimensions
Width:
12.cm
Depth:
7.1cm
Height:
2.4cm
Weight:
0.2kg
