VP-200AK Computer Graphics Video & Stereo Audio Distribution Amplifier, 1:2
Please sign in so that we can notify you about a reply

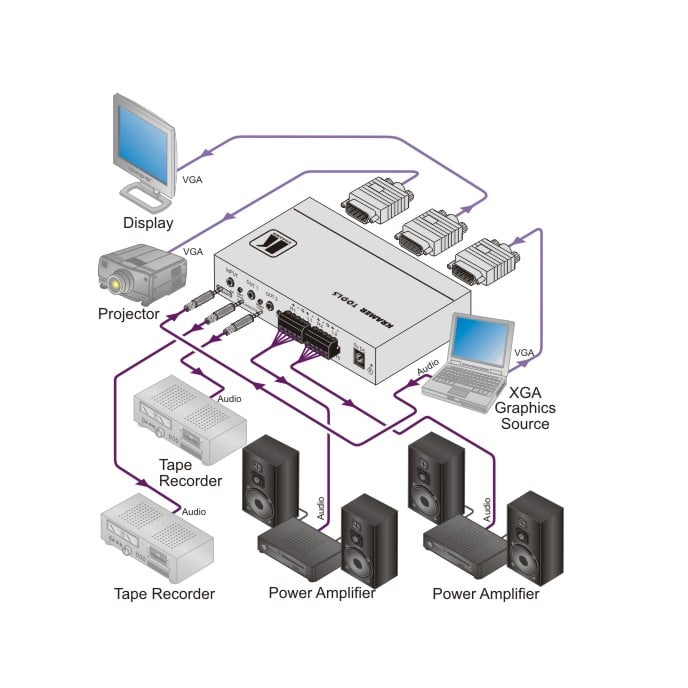

The VP-200AK is a high-performance distribution amplifier for computer graphics video signals, with resolutions up to and exceeding UXGA, and unbalanced stereo audio. It takes a computer graphics video and stereo audio input and outputs two computer graphics video, two balanced, and two unbalanced stereo audio signals.
Features- High Bandwidth - 510MHz (-3dB)
- HDTV Compatible
- Audio Outputs - Simultaneous balanced and unbalanced stereo
- EQ (Peaking Control) Audio Level (Gain) Controls
- Kr-isp Advanced Sync Processing - Ensures compatibility with a wide range of computers (even if the sync level is too low) by restoring the sync signal waveform. Kr-isp advanced sync processing can be enabled or disabled via internal switches
- ID Bit Control
- Applications: Rental and staging systems
- Schools, religious institutions, corporate applications
Brand:
Kramer
Part number:
90-70800090
Specifications
Product Type:
Distribution Amplifier
Special Features:
HDTV Compatible, Audio Outputs - Simultaneous Balanced and Unbalanced Stereo, EQ (Peaking Control) Audio Level (Gain) Controls, Kr-isp Advanced Sync Processing, ID Bit Control
Applications:
Rental and Staging Systems, Schools, Religious Institutions, Corporate Applications
Includes:
Power Supply Unit, 15 pin HD Cable, Mounting Bracket
Performance
Bandwidth:
510MHz (Video), >100kHz (Audio)
Signal-to-Noise Ratio:
72.5dB@5MHz (Video), 82dB (Balanced Audio), 88dB (Unbalanced)
K-Factor:
<0.05%
Total Harmonic Distortion:
0.011%
Differential Gain:
0.55%
Differential Phase:
0.1°
Inputs and Ports
Output Type:
2xUXGA on 15 pin HD (F) Connectors, 2xUnbalanced Stereo Audio on 3.5mm Mini Jacks, 2xBalanced Stereo Audio on Detachable 5 pin Terminal Blocks
Connector Type:
HD 15 Female, Stereo
Input Type:
1xUXGA on a 15 pin HD (F) Connector, 1xUnbalanced Stereo Audio on a 3.5mm Mini Jack
Power
Input Voltage:
5V DC
Dimensions
Width:
12cm
Depth:
7.15cm
Height:
2.4cm
Weight:
0.2kg
Shipping Weight:
0.7kg
Other
Standards Met:
CE
