VM-80VN 1:8 Video Distributor
Please sign in so that we can notify you about a reply
The VM−80VN is a high−performance distribution amplifier for composite or SDI signals. It can also be configured as a 1:4 DA for s−Video (Y/C) signals and has controls to compensate for signal losses inherent in long cable runs.
Features
- High Bandwidth — 330MHz (–3dB)
- Level (Gain) and EQ (Peaking) Controls

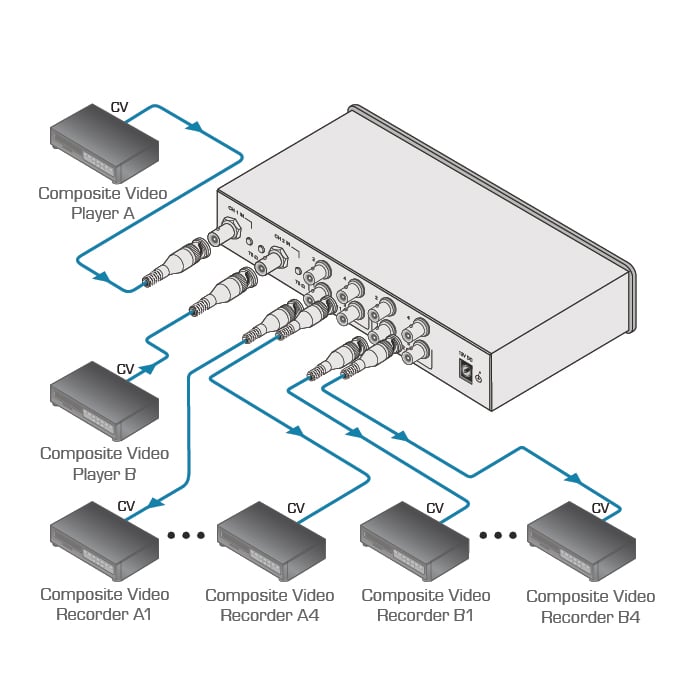

- Dual–Mode — Configure as either a 1:8 (composite) or 1:4 (s–Video) DA
- Video AC/DC Coupling — Internally selectable
- Companion Unit to the VM–80A Audio DA.
Brand:
Kramer
Part number:
10-80339090
Specifications
Product Type:
Video Distributor
Maximum Operating Temperature:
+40°C
Control Type:
75Ω Termination Switch, 1:8 or 2x1:4 Selector Switch
Special Features:
BandWidth-330MHz (-3dB), Level & EQ Control, Rack Kit-RK-1
Applications:
Any Professional AV System Requiring High-Quality Signal Distribution, Video Production Studios for Source Mastering, Specialized High Resolution Video and SD-SDI Distribution, Distribution of Component Video/RGBS/and Other Multi-Channel Formats Using Mul
Humidity:
10 to 90%
Minimum Operating Temperature:
0°C
Includes:
Power Cord
Performance
Maximum Output Resolution:
2Vp-p
Signal-to-Noise Ratio:
74dB
K-Factor:
<0.05%
Differential Gain:
0.12%
Differential Phase:
0.5°
Non-Linearity:
0.1%
Inputs and Ports
Input Port Type:
2xComposite/SD-SDI Video, 1 Vp-p/75Ω on BNC Connector with Termination Switch
Output Port Type:
2x4 Composite/SD-SDI Video, 1Vpp/75Ω on BNC Connector
Dimensions
Width:
21.46cm
Depth:
16.3cm
Height:
4.3cm
Weight:
1g
Other
Standards Met:
CE, ISO 9001, ISO 14001, OHSAS 18001
