VM-50AN 1:5 Balanced & Unbalanced Stereo Audio Distribution Amplifier
Please sign in so that we can notify you about a reply

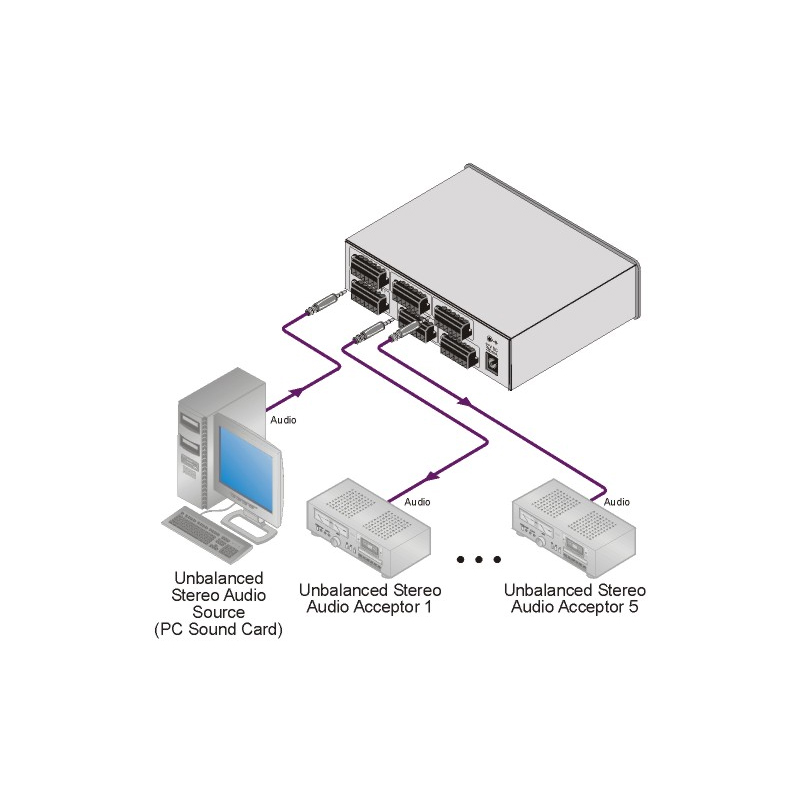

The VM-50AN is a high-performance distribution amplifier for balanced and unbalanced stereo audio signals. It takes one balanced or unbalanced stereo input and distributes the signal simultaneously to ten stereo outputs (five balanced and five unbalanced).
Features

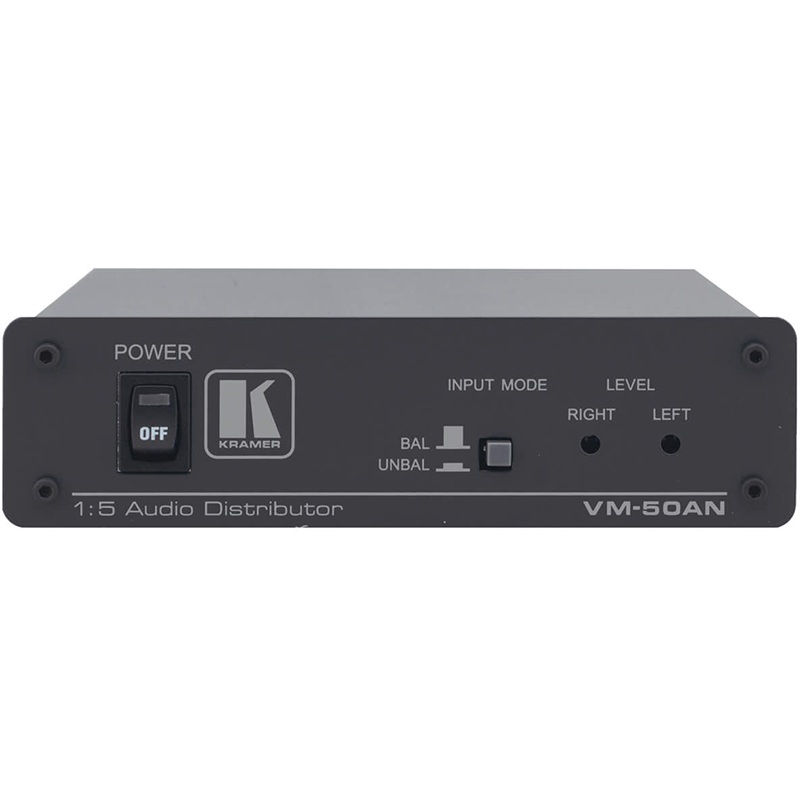

- Balanced/Unbalanced Input Selection.
- S/N Ratio — 84dB (unweighted).
- Level (Gain) Controls.
- Desktop Size — Compact size. 2 units can be rack mounted side–by–side in a 1U rack space with the recommended rack adapter.
Brand:
Kramer
Part number:
11-122090
Specifications
Product Type:
Balanced & Unbalanced Stereo Audio Distribution Amplifier
Maximum Operating Temperature:
+40°C
Special Features:
Balanced/Unbalanced Input Selection, Level (Gain) Control, Desktop Size
Applications:
Production and Duplication Facilities, Schools, Boardrooms, Any A/V System Requiring High Quality Signal Distribution, Retail Stores, Point-Of-Sale Systems, Cctv and Security
Humidity:
10 to 90%
Minimum Operating Temperature:
0°C
Includes:
Power Supply
Performance
Bandwidth:
40kHz
Signal-to-Noise Ratio:
84dB
Total Harmonic Distortion:
0.002%
Input Impedance Rating:
50kΩ
Inputs and Ports
Output Type:

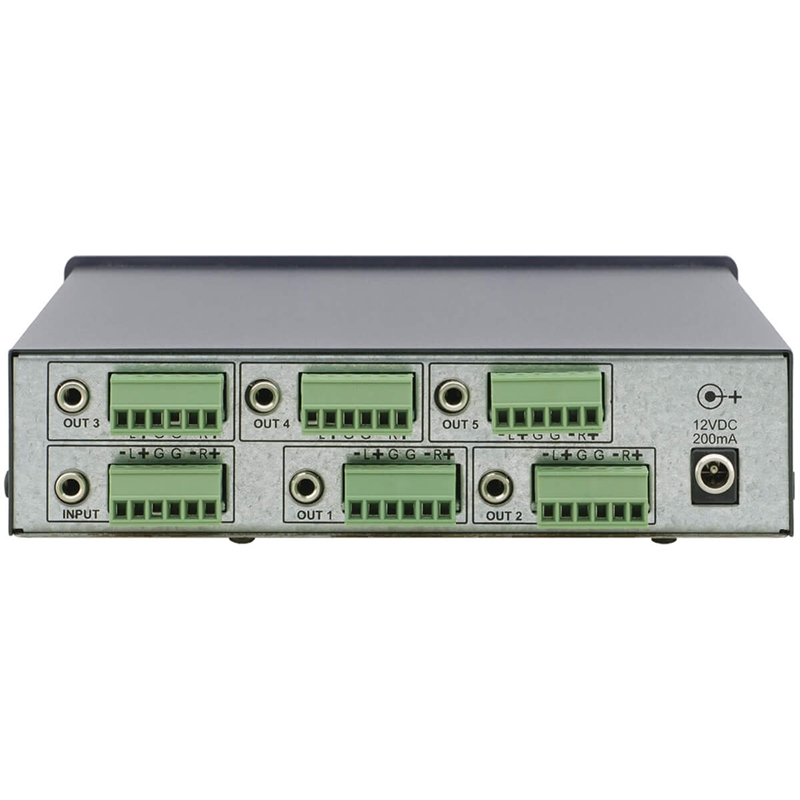

5xBalanced Stereo Audio, +4dBu/50Ω on Detachable Terminal Block Connector, 5xUnbalanced Stereo Audio, 1Vpp/470Ω on 3.5mm Mini Jack
Input Type:
1xBalanced Stereo Audio, +4 dBu/50 kΩ on a Detachable Terminal Block Connector, 1xUnbalanced Stereo Audio, 1Vp-p/50 kΩ on a 3.5mm Mini Jack
Power
Input Voltage:
12V DC
Output Impedance Rating:
50Ω
Dimensions
Width:
16.3cm
Depth:
12cm
Height:
4.4cm
Weight:
0.6kg
