VM-4HDT 1:4 4K UltraHD HDMI to HDBaseT Distribution Amplifier
Please sign in so that we can notify you about a reply

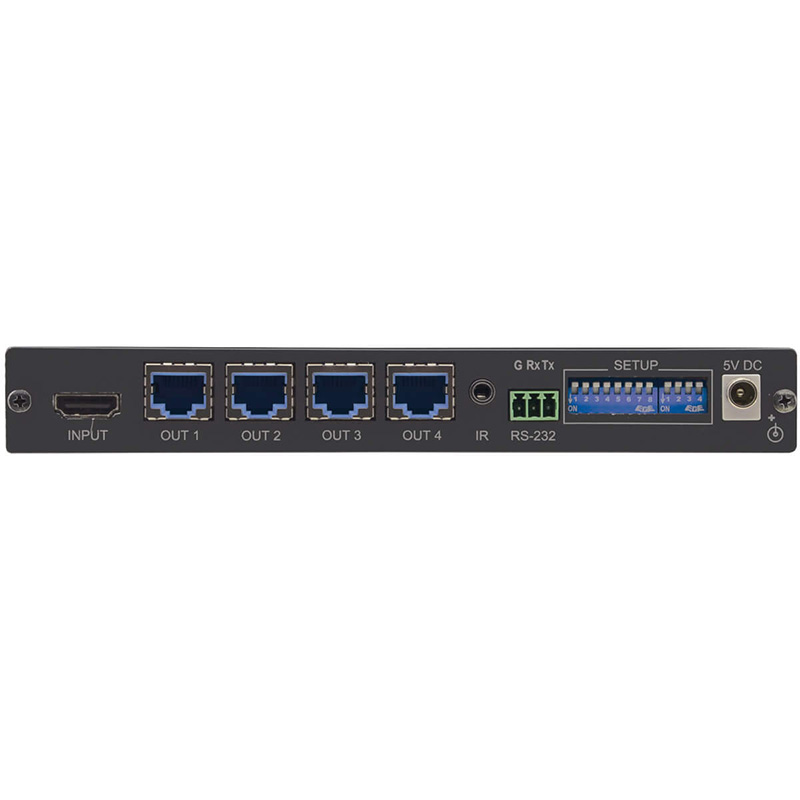

VM−4HDT is a high−quality, long−reach 4K@60Hz (4:2:0) HDBaseT extender distributor that takes one HDMI input, with IR and RS−232 control signals, converts them to HDBaseT extension line signal and distributes it to four HDBaseT outputs that connect to compatible HDBaseT receivers.
Features
- High Performance Distribution — Distributes one HDMI signal to four long–reach HDBaseT extension outputs with up to 4K video resolution.
- Extension–line Distribution — Distributes a 4K@60Hz (4:2:0) 24bpp (maximum) video signal over HDBaseT extension line to a distance of up to 40m (130ft) long–reach, and even further for lower video resolutions.
- Standard Compatibility — Connects to any HDBaseT compliant extension product on the market.
- HDMI Signal Transmission — HDCP 1.4 compliant signal, supporting Deep Color, x.v.Color™, Lip Sync, 7.1 PCM, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D as specified in HDMI 2.0. EDID and CEC (OUT 1 only) signals are passed through from the source to the display.
- I–EDIDPro™ Kramer Intelligent EDID Processing™ — An intelligent EDID handling, processing and pass–through algorithm that ensures Plug and Play operation for HDMI source and display systems.
- Kramer Equalization & re–Klocking™ Technology — Rebuilds the digital signal integrity to travel longer distances.
- EDID Pass–through — Pass–through algorithm ensures Plug and Play operation for HDMI source and display systems.

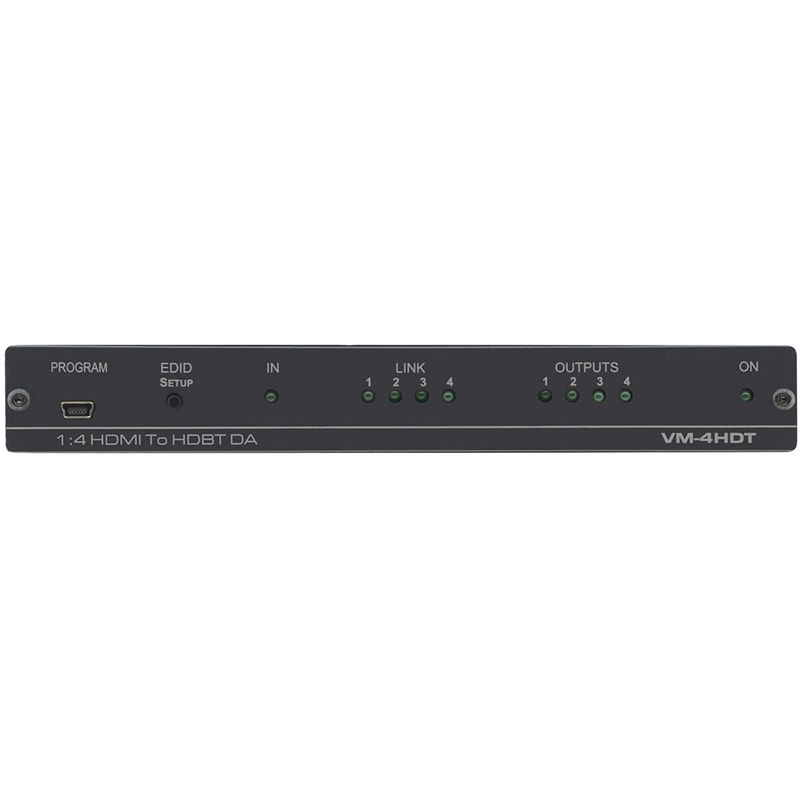

- LED Indicators — Status indicators for HDMI and HDBaseT input/output connected signals and power for ease of maintenance and troubleshooting.

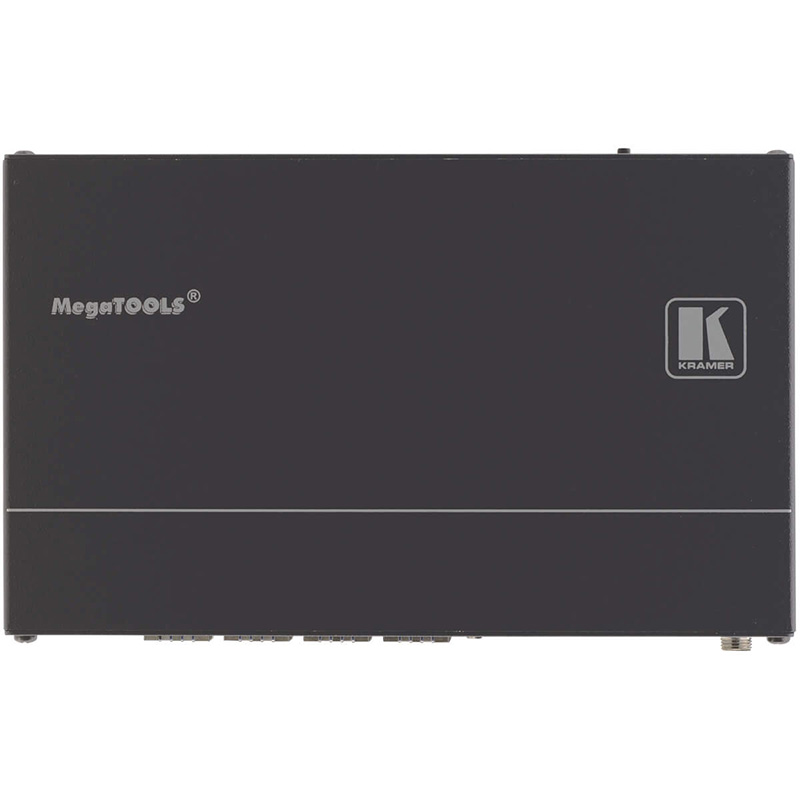

- Easy Installation — Twisted–pair cables for HDBaseT signals wiring. Compact Mega TOOLS™ fan–less enclosure for over–ceiling mounting, or side–by–side rack mounting.
Brand:
Kramer
Part number:
10-80359090
Specifications
Product Type:
HDMI to HDBaseT Splitter
Maximum Operating Temperature:
+40°C
Special Features:
High Performance Distribution, Extension-line Distribution, Standard Compatibility, HDMI Signal Transmission, I-EDIDPro™ kramer Intelligent EDID Processing™, kramer Equalization & re-klocking™ Technology, EDID Pass-through, LED Indicator, Easy Insta
Applications:
Distribution of Native Extended AV Signals in Large Rooms, Presentation and Multimedia Rich in Large Boardrooms and Meeting Rooms, Applicable for Corporate, Education, Hospitality, Government Market Segments
Indicator Type:
LED
Humidity:
10 to 90%
Minimum Operating Temperature:
0°C
Includes:
Power Supply
Inputs and Ports
Output Type:
4xHDBT on RJ45 Female Connector
Input Type:
1xHDMI: on a HDMI Female Connector
Power
Input Voltage:
5.2V DC
Dimensions
Width:
18.75cm
Depth:
11.5cm
Height:
2.5cm
Weight:
0.5kg
Other
Standards Met:
CE, UL Listed, FCC
